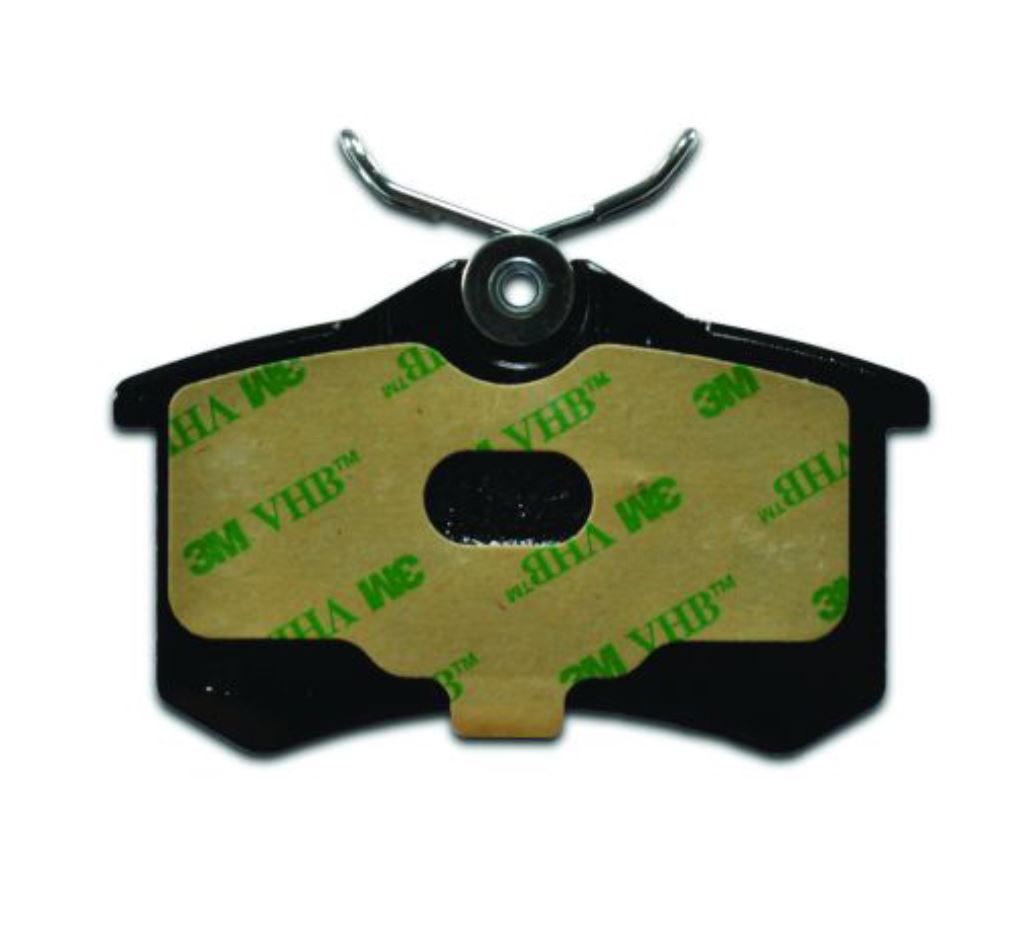

Hella Pagid 355018111 Rear Brake Pad Set, Low-Metallic
Hella Pagid 355018111 Rear Brake Pad Set, Low-Metallic — Product description
The Hella Pagid 355018111 is a low-metallic rear disc brake pad set for a wide range of Volkswagen and Audi cars. It ships with the caliper screws you need for the job and gives you quiet, consistent stopping without a dealer price. A straightforward brake service part from a name that's been making friction for decades.
If you've got a VW or Audi that's due for rear brakes, the Hella Pagid 355018111 is the kind of part you install and forget about. It's a low-metallic pad set for the rear axle, built to the same standard the factory calipers were designed around. Pagid has been in the friction business a long time, and it shows in how these pads bed in and how quietly they run once they're seated.
This set is cataloged as 8DB 355 018-111, WVA 23554. The friction material measures 87 mm wide, 53 mm tall, and 17.2 mm thick, which is the standard rear-pad footprint for the Volkswagen and Audi rear-caliper family. It's a Lucas-style caliper fitment, so if your car runs that rear brake system, this is a direct swap.
Low-metallic friction is a good all-around choice for a daily-driven car. It bites well when cold, holds up to repeated hard stops without fading, and it's easy on the rotor. You'll get a little more brake dust than a ceramic pad, but the trade is stronger, more predictable stopping, which is exactly what you want out of the rear axle on a car that sees real mileage.
One thing we like about this set: it comes with the brake caliper screws, which is what the "with mounting hardware" note on the box means. That's the small stuff that's easy to reuse and shouldn't be. Fresh screws mean the caliper carrier torques down clean. Note that these pads are not prepared for a wear-indicator sensor. If your car uses an electronic pad-wear sensor on the rear axle, you'll source that separately, since it isn't part of this set.
A quick word on why the pad shape matters. Brake pads aren't universal, even within a single brand. The 87 by 53 by 17.2 mm size here is specific to a family of rear calipers, and a pad that's a few millimeters off won't sit right in the carrier or will wear unevenly. That's the reason we push the VIN check so hard on brake parts. When the pad matches the caliper exactly, the shims and the caliper screws all line up, the pad floats the way it should, and you don't get that off-center wear that eats a set early.
Fitment covers a broad slice of the VW and Audi lineup. Think Golf, Jetta, Passat, Corrado, and Beetle on the Volkswagen side, and A3, A4, and A6 on the Audi side, across a lot of model years. Because that range is so wide and these platforms shared several rear-caliper setups over the years, don't guess. Give us your VIN or check the OE number on your old pads before you order. This set replaces a long list of factory part numbers, including 1K0698451M, 8D0698451, 1H0698451G, 8E0698451L, and 1J0698451D, so cross-checking the number stamped on your original pad or backing plate is the surest way to confirm the fit.
Installation is a standard rear-pad job. Pull the wheel, unbolt the caliper, swing it off the carrier, and slide the old pads out. Compress the piston, and if your car has an electric parking brake on the rear, put it in service mode first so you don't fight the motor. Fit the new pads, run in the fresh caliper screws, torque to spec, and pump the pedal up before you drive off. Give them a few hundred easy miles to bed in and you'll have a firm, quiet rear brake.
This is a sensible replacement pad for anyone keeping a VW or Audi on the road, whether that's a weekend project car or your daily commuter. It's not a track-day compound and it isn't trying to be. It's a clean, correct, OE-style rear pad set that does the job and lasts. If you're doing the rears, it's worth checking the rotors while you're in there, since worn pads and scored rotors tend to show up together.
Key Features
- Low-metallic friction compound for strong cold bite and fade resistance under repeated hard stops
- Rear-axle fitment for the Volkswagen and Audi rear-caliper family, an OE-style direct replacement
- Friction footprint 87 mm W x 53 mm H x 17.2 mm T, matched to the factory rear caliper
- Cataloged as 8DB 355 018-111, WVA 23554, for exact cross-referencing
- Brake caliper screws included so the carrier torques down on fresh hardware
- Lucas-style rear caliper system compatibility
- Not prepared for a wear-indicator sensor, keeping the set simple where no sensor is used
- Replaces a wide range of factory part numbers, including 1K0698451M and 8D0698451
- Backed by Hella Pagid, a long-established name in automotive friction
Why Buy from NVN Marine
- Authorized Hella Pagid reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Pagid Rear Disc Brake Pad Set, Low-Metallic, With Mounting Hardware |
|---|---|
| Brand | Hella Pagid |
| Manufacturer Part Number | 355018111 |
| UPC | 4082300362428 |
| Catalog Number | 8DB 355 018-111 |
| Part Type | Disc Brake Pad Set |
| Axle Position | Rear |
| Friction Material | Low-Metallic |
| Brake System | Lucas |
| WVA Number | 23554 |
| Technical Information Number | T5075 |
| Pad Width | 87 mm |
| Pad Height | 53 mm |
| Pad Thickness | 17.2 mm |
| Package Dimensions (L x W x H) | 4.92 x 3.19 x 3.15 in |
| Weight | 2.37 lb |
| Wear Indicator | Not prepared for wear sensor |
| Mounting Hardware | Brake caliper screws included |
| Replaces (OE) | 1K0698451M, 8D0698451, 1H0698451G, 8E0698451L, 1J0698451D |
Frequently asked questions
Are these front or rear brake pads?
Rear. The 355018111 (catalog 8DB 355 018-111) is a rear-axle disc brake pad set for the Volkswagen and Audi rear-caliper family.
Does this set include the mounting hardware?
Yes. The brake caliper screws are included, which is what 'with mounting hardware' means on the box. Reusing old screws isn't ideal, so fresh ones come in the set.
Is a brake wear sensor included?
No. These pads are not prepared for a wear-indicator sensor. If your rear axle uses an electronic pad-wear sensor, order it separately.
What is the friction material?
Low-metallic. It gives strong, consistent stopping with good cold bite, at the cost of a little more brake dust than a ceramic pad.
What vehicles does this fit?
A broad range of Volkswagen and Audi models, including Golf, Jetta, Passat, Corrado, Beetle, and Audi A3, A4, and A6. The rear-caliper setups varied across model years, so confirm by VIN or by the OE number on your old pads before ordering.
What are the pad dimensions?
The friction material is 87 mm wide, 53 mm tall, and 17.2 mm thick.
What OE part numbers does this replace?
Several, including 1K0698451M, 8D0698451, 1H0698451G, 8E0698451L, and 1J0698451D. Matching the number stamped on your original pad is the best way to confirm fit.
Will this do both rear wheels?
This is a disc brake pad set for the rear axle. Hella Pagid axle sets are packaged for the rear brakes, but pad quantity can vary by application, so check the listed quantity against what your car needs before ordering. Front pads are a separate part.
Are these an OE-quality replacement?
Yes. Hella Pagid makes friction to OE standards, and this set is designed as a direct replacement that fits the factory caliper and uses the correct pad shape.
Do I need to replace the rotors too?
Not always, but check them. If the rotors are scored, below minimum thickness, or have a heavy lip, replace them with the pads. Fresh pads on bad rotors won't bed in well and can squeal.
How do I bed in the new pads?
After install, pump the pedal to seat the pads, then drive a few hundred easy miles with gentle stops before any hard braking. That transfers an even layer of friction material to the rotor for quiet, consistent bite.
