Hella Marine

Hella Marine X-TREME Spotlight XT-3A Amber LED, Set of 2

SKU: 2007874 · UPC: 760687183990 · MPN: 358233941
4.7 · 0 reviews
Authorized dealer49% off
$169.99
$336.13Save $166.14
or 4 payments of $42.49 with Affirm · See disclosures
In stock — Ships Monday Pickup Tuesday · Fort Lauderdale (FL)
SAME-DAY SHIPPING · 14:23 EST
Order now, ships Monday
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$169.99
02 · Overview

Hella Marine X-TREME Spotlight XT-3A Amber LED, Set of 2 — Product description

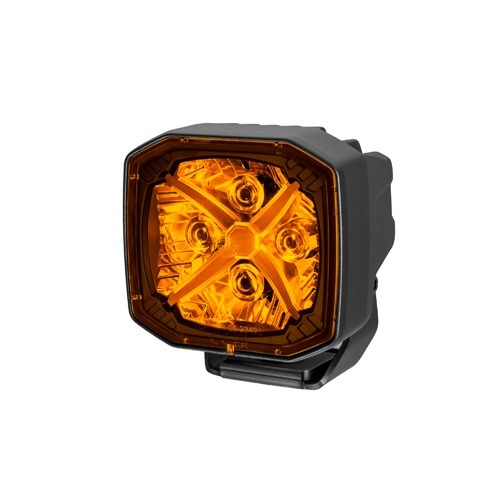

The Hella Marine X-TREME XT-3A Amber is a matched pair of compact LED cube spotlights that throw a tight 5700-lumen beam a long way. The amber lens cuts fog and glare, the power auto-senses 12 to 24 volts, and everything you need to mount both lights is in the box. Serious reach for night runs and unlit docks.

The Hella Marine X-TREME Spotlight XT-3A Amber is a matched pair of compact LED cube lights built to throw a tight, focused beam a long way down the water. Each cube packs 28 LEDs into a 3.3 by 3.58 inch housing and pushes 5700 lumens on a true spot pattern. If you run at night, dock in unlit marinas, or want extra reach off the bow or hardtop, this is the kind of light that earns its spot on the boat.

The amber lens is the reason a lot of boaters go this route. Amber light cuts through fog, mist, and spray far better than white, and it kicks back less glare when the air is thick. It also draws fewer bugs when you're sitting at anchor with the lights on. The tradeoff is range in clear conditions, where amber gives up a little distance to a clear lens. So think about where you actually run. For coastal fog, backwater fishing, and messy weather, amber is the smart call.

Power is flexible. Each light auto-senses anywhere from 12 to 24 volts DC, so it drops straight onto a 12V bass boat or a 24V cruiser without any changes. Just plan your wiring. Each cube pulls 60 watts, so a set of two draws right around 10 amps total. On a 24V system that's nothing. On a single 12V battery with an older panel, that's enough to matter, and we'd run the pair on their own switched circuit with a properly sized breaker and heavier gauge wire than you think you need. The included harness is on the short side for a tall hardtop or flybridge, so budget for an extension if you're mounting up high.

There's a reason these hold up. LED bulbs run cool and take a beating from vibration far better than old halogen or HID spotlights, and with 28 diodes per cube there's no filament to shake loose when you're pounding across a chop. The sealed polycarbonate lens shrugs off UV and spray, and the whole unit is built to the same fit-and-forget standard as the rest of the Hella Marine lighting line. You mount it once and stop thinking about it.

The housing is black aluminum with an upright mount, and it's made to live outside in salt air. That said, saltwater is saltwater. Hit the mounting feet and any bare hardware with dielectric grease at install and you'll keep corrosion off the contact points for the long haul. The upright bracket bolts to a flat surface easily. On an angled T-top or hardtop edge you may want a shim or wedge under the foot to bring the beam back to level so you're not lighting up the sky or the deck.

Each set ships with two smoked stone shield covers that snap over the lens to protect the polycarbonate from rock chips and debris when you're trailering or running rough water. Plenty of boaters leave them on full time for the protection. Some pull them for maximum output when they want every lumen. Your call. You also get two sets of mounting hardware and brackets plus mounting instructions, so everything you need to get both lights on the boat is in the box.

Bottom line, this is a focused spot light, not a wide flood. The beam is tight and reaches out, which is exactly what you want for spotting channel markers, crab pots, a mooring ball, or the person on the bow line at a dark dock. It's less useful as a broad work light right around the cockpit. Rig a pair of these up high, aim them where you're headed, and you've got serious reach when the sun goes down.

Key Features

  • Set of two matched amber LED cube spotlights, everything for a dual install in one box
  • 28 LEDs per cube deliver 5700 lumens on a focused spot beam for long-distance reach
  • Amber polycarbonate lens cuts through fog, mist, and spray and draws fewer bugs at anchor
  • 12 to 24 Volt DC auto-sensing power fits both 12V and 24V boats with no changes
  • 60 watts per light, roughly 10 amps for the pair, plan a dedicated switched circuit
  • Compact 3.3 by 3.58 inch cube fits tight mounting spots on hardtops, bow rails, and towers
  • Black aluminum housing built to live in salt air, fit-and-forget marine durability
  • Upright mount with included brackets and hardware for a flat-surface install
  • Two smoked stone shield covers protect the lens from rock chips while trailering
  • Solid-state LED design handles vibration and pounding seas far better than filament bulbs

Why Buy from NVN Marine

  • Authorized Hella Marine reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Tuesday) $169.99
03 · The numbers

Technical specifications

Title Hella Marine X-TREME Spotlight XT-3A Amber LED, Set of 2
Brand Hella Marine
Manufacturer Part Number 358233941
UPC 760687183990
Model X-TREME Spotlight XT-3A Amber
LED Count 28 LEDs
Light Output 5700 Lumens
Wattage 60 Watt
Voltage 12 to 24 Volt DC
Beam Pattern Spot Beam
Lens Amber Polycarbonate
Housing Black Aluminum
Mount Type Upright Mount
Cube Size 3.3 x 3.58 Inch
Quantity Set of 2
Included Mounting hardware and brackets, smoked stone shield covers, and mounting instructions
04 · Before you buy

Frequently asked questions

How bright are these and what's the beam pattern?

Each light puts out 5700 lumens on a spot beam. That's a tight, focused pattern built for reach, not a wide flood. It's ideal for spotting channel markers, crab pots, a mooring ball, or a dock ahead in the dark.

Why amber instead of a clear lens?

Amber light cuts through fog, mist, and spray with a lot less glare bouncing back at you, and it draws fewer bugs at anchor. The tradeoff is a little range in clear conditions. If you run coastal fog or messy weather, amber is the smart pick.

Will these run on my 12V boat?

Yes. Each light auto-senses anywhere from 12 to 24 volts DC, so it works on a 12V or a 24V system with no changes or adapters.

How much power do they draw?

Each cube pulls 60 watts, so a set of two draws right around 10 amps total. On a 24V system that's easy. On a single 12V battery with an older panel, run the pair on their own switched circuit with a properly sized breaker and heavier gauge wire.

What comes in the box?

You get two XT-3A amber spotlights, two sets of mounting hardware and brackets, two smoked stone shield covers, and mounting instructions. Everything needed to get both lights on the boat.

Can I mount them on an angled surface?

The upright bracket bolts to a flat surface easily. On an angled T-top or hardtop edge, a small shim or wedge under the foot brings the beam back to level so you're not lighting the sky or the deck.

Are they okay in saltwater?

Yes. The black aluminum housing and sealed polycarbonate lens are built for salt air. We still recommend hitting the mounting feet and any bare hardware with dielectric grease at install to keep corrosion off the contact points.

What are the smoked stone shield covers for?

They snap over the lens to protect the polycarbonate from rock chips and debris while trailering or running rough water. Plenty of boaters leave them on full time. Some pull them when they want maximum output.

How big is each light?

Each unit is a compact cube measuring 3.3 by 3.58 inches, so it tucks into tight mounting spots on hardtops, bow rails, and towers.

What's the warranty?

Full Hella Marine manufacturer warranty applies. We're an authorized Hella Marine reseller, so any warranty claim runs through us back to the manufacturer.
