Hella Marine White/Red LED Chart Lamp | 9-31V DC
Hella Marine White/Red LED Chart Lamp | 9-31V DC — Product description

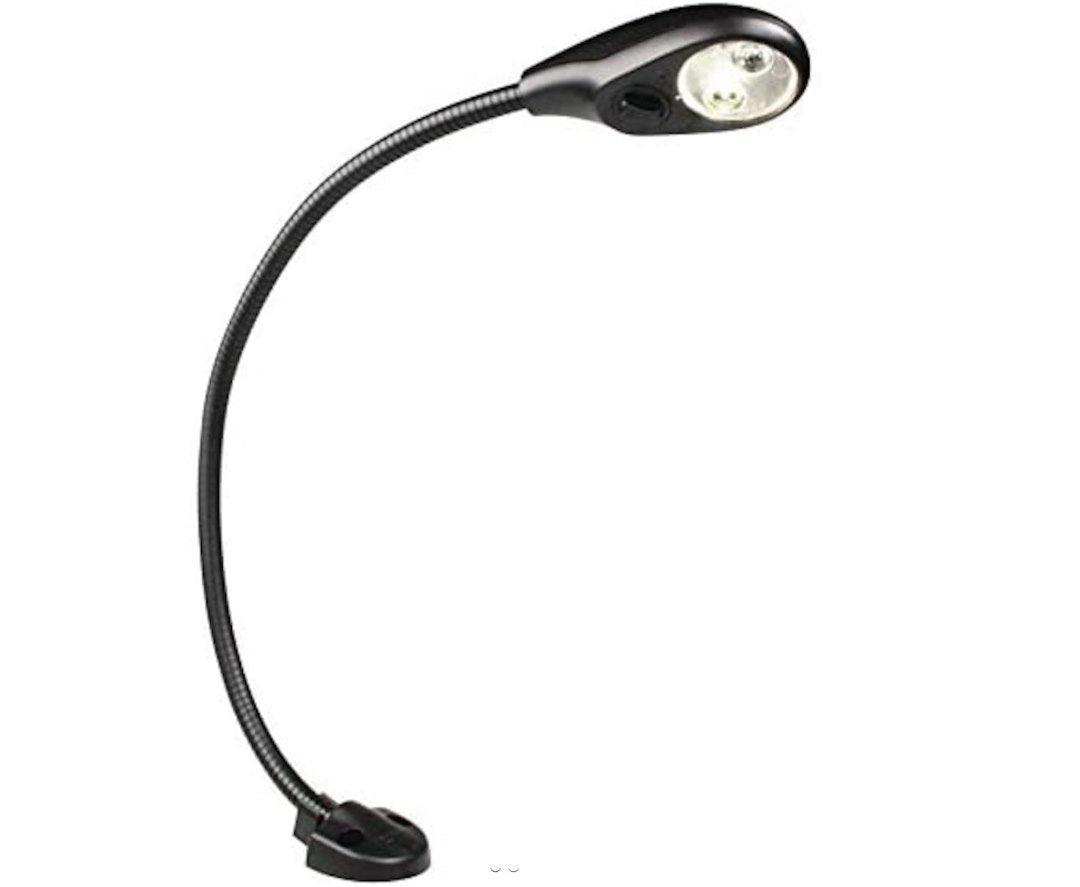

The Hella Marine chart lamp puts clean white light right where you need it at the chart table, then switches to red so you can plot a course without wrecking your night vision. It runs on anything from 9 to 31 volts, so it drops straight into a 12 or 24 volt system. Black housing, 316 stainless arm, built to live on the water.
If you've read a chart at 2 a.m., you know a bright cabin light wrecks your night vision. That's the problem this lamp solves. The Hella Marine chart lamp gives you two modes. White light for detail work at the chart table, and a soft red beam for navigation once the sun's down. The red keeps your eyes adjusted to the dark, so you can step out to the helm and still see.
The arm is 316 stainless steel, so it shrugs off salt air and keeps its finish. The housing is black plastic that's UV and impact resistant, which matters on a boat that bakes in the sun and takes a pounding in a seaway. It's rated IP53 against dust and spray, and it's CE approved. Bend the arm to aim the light where you want it, then leave it.
Wiring's easy. It runs on 9 to 31 volts DC, so it works on 12V and 24V systems without any fuss, and it ships with a 120mm pre-wired marine cable ready to connect. It's a table mount, good for the chart table, the nav station, a berth, or anywhere you want an adjustable reading light that won't blind you.
Key Features
- White and red LED modes: white for detail work at the chart table, red to protect your night vision underway
- 9 to 31V DC operating range works on both 12V and 24V boat systems with no converter
- 316 stainless steel arm and UV/impact-resistant black plastic housing stand up to salt air and sun
- IP53 rated and CE approved for protection against dust and light spray at the nav station
- 120mm pre-wired marine cable and table mount make for a quick, clean install
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Marine White/Red LED Chart Lamp |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | 343720622 |
| UPC | 9416325210610 |
| LED Color | White and Red |
| Operating Voltage | 9 to 31V DC |
| Mounting | Table Mount |
| Ingress Protection Rating | IP53 |
| Certification | CE Approved |
| Housing Material | Black Plastic |
| Arm Material | 316 Stainless Steel |
| Durability | UV and Impact Resistant |
| Cable | 120mm Pre-Wired Marine Cable |
| Applications | Chart Table, Navigation Area, Berth, Reading Light |
Frequently asked questions
Does this chart lamp have a red light mode?
Yes. It has both white and red LEDs. Use the white light for detail work at the chart table and switch to red to keep your night vision when you're navigating after dark.
What voltage does it run on?
It operates on 9 to 31 volts DC, so it works on both 12V and 24V marine electrical systems without any extra hardware.
How does it mount?
It's a table mount lamp with an adjustable 316 stainless steel arm. You bend the arm to aim the light exactly where you need it, and it comes with a 120mm pre-wired marine cable to connect.
Is it waterproof enough for a boat?
It's rated IP53, which protects against dust and light spray. It's built for interior marine spaces like the chart table, nav station, and berths, not for full submersion or open-deck exposure.
What's the arm made of?
The arm is 316 stainless steel, which resists corrosion in salt air. The housing is black plastic that's UV and impact resistant.
