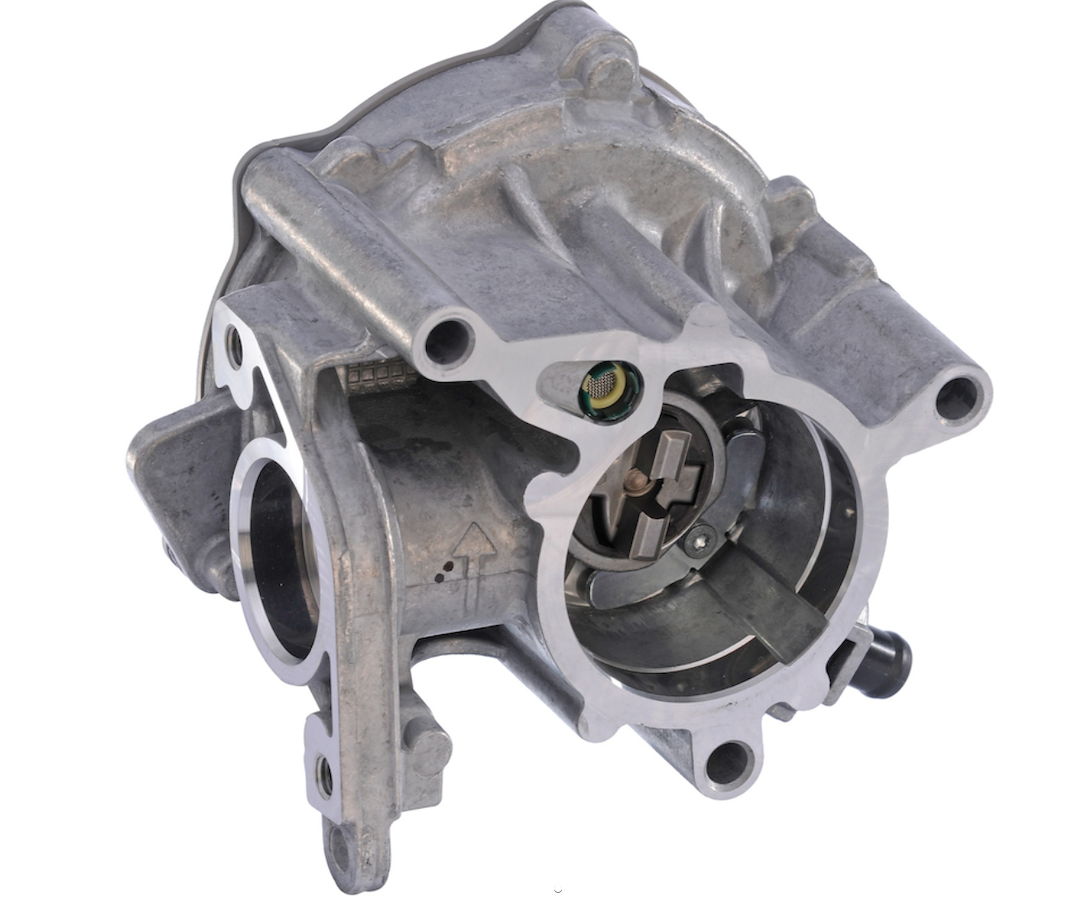

Hella Marine Vacuum Pump 7.24807.29.0 for Power Brake Booster

The Hella Marine 7.24807.29.0 is a mechanical vacuum pump built to feed a power brake booster. On a lot of diesel engines, and plenty of turbocharged and direct-injection gas engines too, the intake manifold just doesn't pull enough vacuum on its own to run the brakes. That's where a dedicated pump like this one comes in. It generates the steady vacuum your booster needs so the pedal stays firm and the brakes assist the way the driver expects.

This is a vane-type pump. Inside the housing, a rotor spins with sliding vanes that sweep air out of the booster circuit and build vacuum on every revolution. It's a simple, proven layout that's been moving air in braking systems for decades, and there's not much to go wrong with it when it's built right. Hella Marine has a long track record with this kind of pump, and the fit-and-forget philosophy the brand is known for carries over here.

It's gear driven, so it takes its drive straight off the engine's gear train rather than a belt. That means it's turning whenever the engine is running, pulling vacuum from the moment you start up. No warm-up, no lag, no waiting for an electric pump to catch up. The one blade pin terminal handles the electrical connection for the pump's switch or sensor feedback, so the system knows what the pump is doing.

Why does any of this matter? Because the brake booster is what turns an ordinary pedal push into real stopping force. Lose vacuum and the pedal goes hard, travel gets long, and stopping distances climb. A tired vacuum pump is one of the most common reasons a brake pedal starts feeling wrong on a higher-mileage engine. If you're chasing a hard pedal, a whine that rises with engine speed, or oil weeping from the pump body, the vacuum pump is worth a hard look before you start throwing parts at the booster or master cylinder.

Replacing the pump with a quality unit brings the braking system back to spec. This is genuine Hella Marine hardware, part number 7.24807.29.0, so the fitment, the drive, and the terminal all match what the engine was designed around. That's the difference between a repair that lasts and one that has you back under the hood in a season. When you're servicing a brake system, the vacuum side is not the place to cut corners.

Installation is a job most competent techs and hands-on owners can handle with common tools, but it pays to be methodical. Confirm the pump is the source of your vacuum problem first. Check the drive interface and gasket surfaces, prime and bleed the system per the engine's service procedure, and verify the electrical connection to the blade terminal is clean and tight. Corrosion at the terminal is a known nuisance on these pumps, so a little dielectric grease and a solid connection go a long way. Once it's in, test the pedal with the engine off and running to confirm the booster is holding vacuum the way it should.

Who's this for? Anyone servicing a vehicle or piece of equipment that runs a mechanical, gear-driven vacuum pump for the brakes. It's a repair part, not an upgrade, so match it to your application by the Hella Marine part number and confirm your existing pump shares the vane, gear-drive, and single-blade-terminal layout. If your setup uses an electric vacuum pump or a different drive, this isn't the one. But if it's a direct replacement for what came off, you're getting the right pump for the job, backed by a brand that built its name on parts you install once and forget about.
