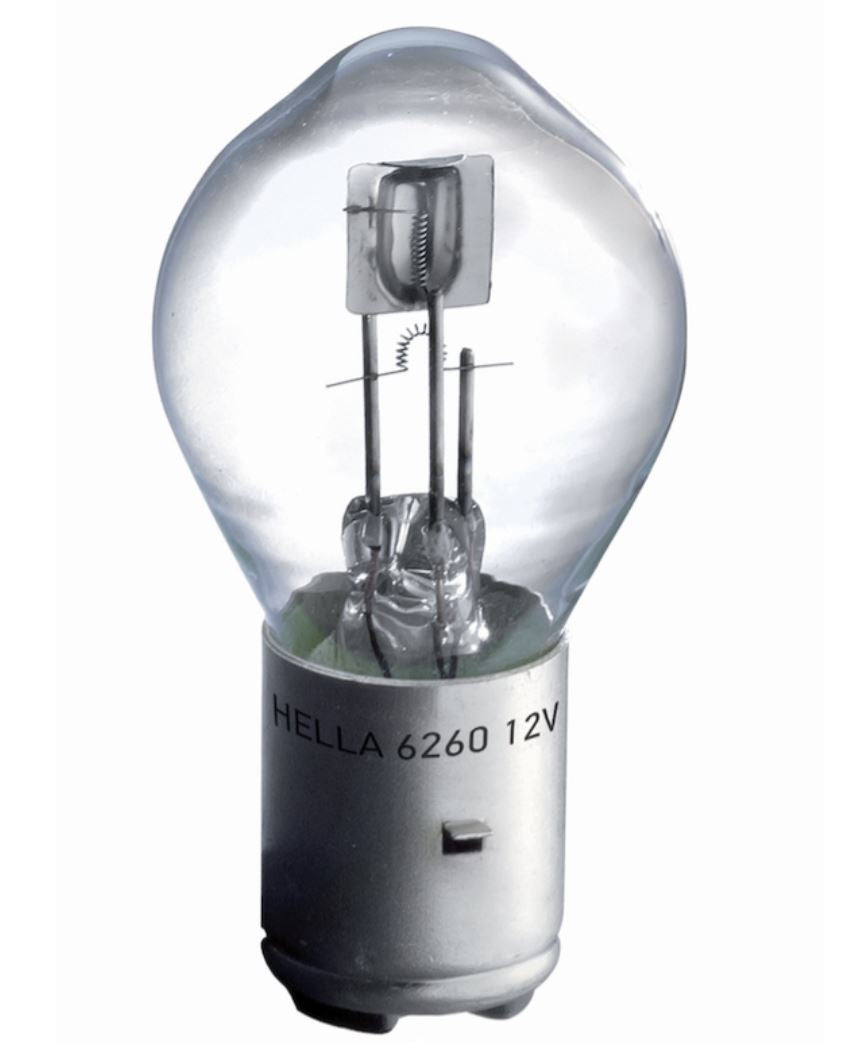

Hella Marine S2 Halogen Bulb 60/60W 12V BA20D

This is the Hella Marine S2 halogen replacement bulb, a 12-volt, 60/60 watt dual-filament lamp on a BA20D bayonet base. It's a single bulb, one to a pack, and it's the part you reach for when the light in your Hella halogen lamp housing finally gives up. Clean white output, standard fit, nothing exotic. Just a reliable replacement that drops into the fixtures built around the S2 bulb standard.

Let's talk about what the numbers mean, because the spec shorthand on a bulb box isn't obvious unless you've been elbow-deep in a lamp housing before. The 60/60W is a dual-filament rating. One filament for the main beam, one for the secondary, both drawing 60 watts at 12 volts. That's the S2 category in a nutshell, a two-filament halogen built to a common dimensional standard so replacements stay consistent across the lamps that use it. The BA20D base is a bayonet fitting, 20mm across, with two contacts on the bottom. You push it in, give it a quarter turn, and it locks. No screw threads, no guesswork.

Halogen still earns its keep on the water. The light comes on instantly at full brightness, there's no warm-up delay, and the white output reads true without the blue cast some skippers dislike. For anyone running an older Hella Marine searchlight or spotlight that was engineered around this bulb, a like-for-like halogen replacement keeps the optics doing exactly what the lamp's designers intended. The reflector was cut for a filament of this size and position. Drop in the correct S2 bulb and the beam pattern stays tight and true.

Installation is about as simple as marine electrical work gets. Kill power to the circuit first. Open the lamp housing, pull the old bulb straight out of its BA20D socket with a press and a quarter-turn to release, and set the new one in the same way. Here's the one habit worth keeping: don't touch the glass with bare fingers. Halogen bulbs run hot, and the oils from your skin create a hot spot on the quartz envelope that shortens bulb life. Handle it by the base, or use a clean cloth or glove. If you do smudge it, wipe it down with a little isopropyl alcohol before you power up.

Because this is a 12-volt bulb, it fits the standard DC system on the overwhelming majority of boats. Check your lamp housing's rating before ordering to confirm it calls for an S2 60/60W BA20D bulb. These codes are printed on most housings or listed in the lamp's manual, and matching the base and wattage matters more than the brand name on the box. Over-wattage bulbs can cook a reflector or overload a circuit that wasn't sized for them, so stick with what the fixture specifies.

Hella Marine's whole philosophy is fit and forget, and a consumable like a bulb is where that reputation gets tested. Keeping a spare or two in the spares kit is smart seamanship. Bulbs don't usually fail at the dock in daylight. They fail on the one night run when you actually need the light. One of these in the ditch bag, and you're back up in under five minutes.

Why keep halogen around at all? Because matching the original bulb type keeps everything predictable. The draw is known, the beam is known, and there's no compatibility guesswork with the fixture's wiring. For a working light you rely on, predictable beats clever. This listing is for a single bulb only. It doesn't include the lamp housing, lens, or any wiring, it's purely the replacement halogen element. If you're not sure whether it's right for your light, match the three things that matter: the S2 category, the 60/60 watt dual-filament rating, and the BA20D base. Get those three right and you're good.
