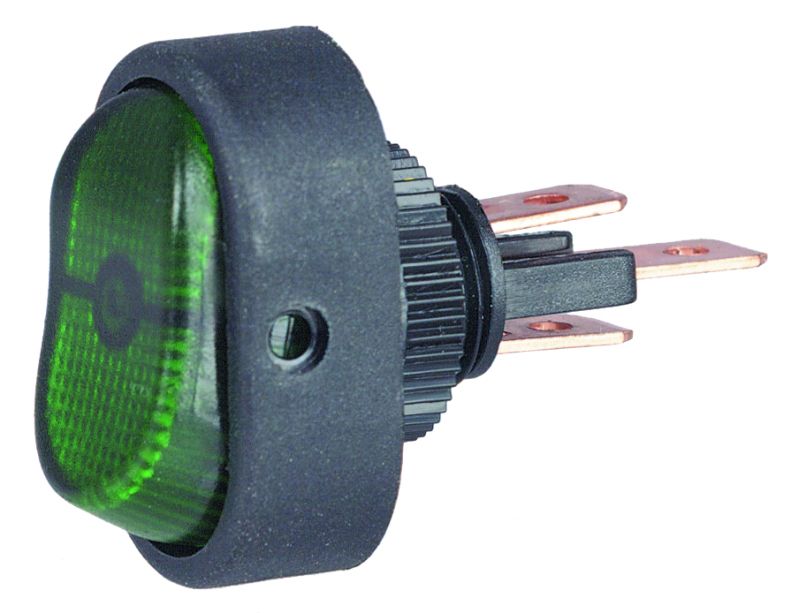

Hella Marine Oval Lighted Rocker Switch, Green On-Off

The Hella Marine H61920001 is a straightforward on-off rocker switch with an oval face and a green lighted indicator. It's the kind of part you reach for when you're wiring up a pump, a set of lights, a blower, or any single circuit you want to flip from the helm. Simple job, done right, built by a company that's been making marine switch gear for a long time.

This one is a single-pole, single-throw switch, which is the plain on-off setup most boaters need. One input, one output, two positions. Push the rocker one way and the circuit's live. Push it back and it's dead. There's no middle position and no second circuit to worry about. If all you want is to turn something on and off from the dash, this is exactly the switch for that.

The green light tells you at a glance whether the circuit is on. That's more useful than it sounds. How many times have you left a livewell pump or an anchor light running because you couldn't tell from across the cockpit? A lit rocker fixes that. The illumination comes on with the switched circuit, so green means live. Wire it like any illuminated marine switch, feed power to the input terminal, run the load off the output, and ground the lamp side so the indicator has a return path.

Installing it is honest DIY work. The switch drops into an oval panel cutout and holds in place from behind. Use marine-grade wire, crimp your terminals, and slide heat-shrink over every connection so salt air doesn't creep in and corrode things. We always tell folks to put a fuse or breaker ahead of the switch sized to the load, not the switch itself. And if you're running a big draw like a windlass or a high-amp pump, don't push all that current through the rocker. Wire the switch to a relay and let the relay carry the heavy load. The switch just tells the relay what to do.

The green lens also helps when you're organizing a busy panel. A lot of boaters color-code their switches by system, greens for one group, reds for another, so a quick look tells you what's what in the dark. Matching a row of oval Hella rockers gives the dash a clean, factory look instead of a mismatched grab bag of switches from three different bins.

Keep your wiring tidy behind the panel. Label each wire as you go, and give every crimped connection a gentle tug before you button up the console. A terminal that pulls loose on the bench is a lot better than one that drops a circuit when you're offshore. Leave a little slack in the harness too, so the next person who pulls the panel has room to work.

One thing to know up front. This is the switch only, listed without a cover. The legend cap or protective cover that some boaters like to add is a separate part, so if you want one, grab it alongside this switch. And because it's a single on-off circuit, it won't do on-off-on or momentary duty. For trim, wipers, or anything that needs a spring-return or a reverse position, you'd want a different switch in the line. For plain on-off control, though, it's tough to beat the simplicity.

Hella Marine builds these to live on a boat, so they're made to shrug off the damp, salty life at the helm. Whether you're building out a new console, replacing a tired switch that's gone mushy, or standardizing your whole panel on matching oval rockers, the H61920001 is a clean, no-drama choice. Order what you need, wire it in, and forget about it. That's the whole idea.
