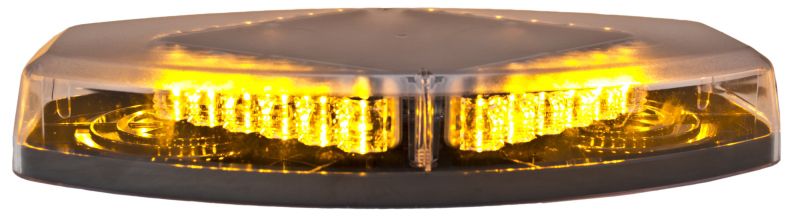

Hella Marine MLB50 Amber LED Beacon, 23 Patterns
Hella Marine MLB50 Amber LED Beacon, 23 Patterns — Product description
The Hella Marine MLB50 is a permanent-mount amber LED beacon built to be seen. Twenty-four LEDs, 23 selectable flash patterns, and 12 to 24 volt auto-sensing operation make it a smart, low-maintenance caution light for work boats and any owner who wants serious visibility on the water.
Hella Marine built the MLB50 for boats that need to be seen. It's a permanent-mount amber LED beacon that throws a bright, attention-getting warning signal, and it runs on either 12 or 24 volt systems without you having to think about it. If you run a work skiff, a commercial boat, a dredge tender, or anything that needs to flag its presence on the water, this is the kind of light that earns its spot on the hard top.
The amber lens is the giveaway. Amber is the caution color, the one that says give me room without the legal baggage of a blue or red. That makes the MLB50 a natural fit for commercial and utility work, guide boats waiting on a client, or any situation where you want other traffic to slow down and take notice. Check your local rules on beacon use before you wire it in, but for a general warning and visibility light, amber is the safe, sensible choice.
Under the dome you've got 24 LEDs doing the work. LEDs are why a light like this outlives the old halogen rotators. There's no motor to burn out, no bulb to replace, and far less current draw on your house bank. Hella Marine's whole reputation is built on fit and forget, and a solid-state beacon with no moving parts is exactly that. You bolt it down once and stop thinking about it.
Where the MLB50 gets genuinely useful is the 23 selectable flash patterns. You're not stuck with one strobe. You can dial in a slow single flash for low-key presence, a hard double or quad for active work zones, or a steadier pattern when you just want to be visible in a crowded anchorage. The pattern is chosen through a select wire, so plan your wiring with a momentary switch to step through the modes. Run it on constant power alone and it'll simply hold the last pattern it was set to.
Installation is straightforward but worth doing right. It's a permanent, fixed mount, so pick your spot, drill clean, and bed the base properly. We always run a bead of butyl tape or marine sealant under the base on fiberglass and gelcoat, because any through-bolt into a hard top or console roof is a potential leak path if you skip that step. On aluminum T-tops, add an isolating washer to keep dissimilar metals from chewing at each other over a couple of seasons. And put the whole circuit on its own fuse. It's cheap insurance for a light that lives up top in the weather.
A few honest notes. This is a fixed beacon, not a magnetic slap-on, so it's meant to stay put. There's no gasket in the box, so grab a rubber base washer if your mounting surface isn't dead flat. And the 12 to 24 volt auto-sensing means it drops straight into most outboard and inboard systems without a converter, which keeps the install clean. Take a minute to plan the cable run too, so you're not fishing wire through a headliner after the base is already bedded down.
Who's this for? Commercial operators, tow and salvage boats, marina service skiffs, dredge and survey crews, and plenty of private owners who just want a serious caution light for night runs or working the deck at anchor. It's overkill for a small tender, and it isn't a navigation light, so don't try to use it as one. But as a dedicated amber warning beacon that'll shrug off salt, sun, and vibration for years, it's hard to beat the Hella Marine name. Bolt it up once, wire it clean, and it'll do its job season after season without asking anything of you.
Key Features
- 24 high-output LEDs deliver a bright amber warning signal with no bulb or motor to wear out
- 23 user-selectable flash patterns, from slow single flash to hard strobe, chosen via a pattern-select wire
- 12 to 24 volt auto-sensing operation drops into outboard and inboard systems without a converter
- Permanent fixed-mount base for a stay-put installation on hard tops, consoles, and T-tops
- Amber lens and dome built to stand up to UV and salt for years of service
- Solid-state LED design draws far less current than an old halogen rotator
- Hella Marine fit-and-forget build with no moving parts to fail
- Model MLB50, part number H27995001, a dedicated marine caution and visibility beacon
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Marine MLB50 LED Beacon, Amber Lens, 23 Selectable Patterns |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | H27995001 |
| UPC | 760687156765 |
| Model | MLB50 |
| Light Source | LED |
| Number of LEDs | 24 |
| Lens Color | Amber |
| Flash Patterns | 23 Selectable |
| Operating Voltage | 12-24 Volt DC |
| Mount Type | Permanent (Fixed) Mount |
| Product Type | LED Warning Beacon |
Frequently asked questions
What voltage does the Hella Marine MLB50 run on?
12 to 24 volts DC, auto-sensing. It works on both 12V and 24V systems without a converter, so it drops into most outboard and inboard setups cleanly. Put it on its own fused circuit.
How many flash patterns does it have?
23 selectable patterns. You can run a slow single flash for low-key presence, a hard double or quad for active work zones, or a steadier pattern for general visibility.
How is the beacon mounted?
It's a permanent, fixed mount. You bolt the base down to a flat surface like a hard top, console roof, or T-top. Bed it with butyl tape or marine sealant so the through-bolts don't become a leak path.
How do I switch between the flash patterns?
The pattern is chosen through a select wire. Wire it to a momentary switch so you can step through the modes. On constant power alone it just holds the last pattern it was set to.
How many LEDs are in it?
24 LEDs. Being solid-state, there's no motor and no bulb, so it draws less current and outlasts an old halogen rotating beacon.
Is amber the right color for my boat?
Amber is the standard caution color and a natural fit for commercial, utility, and work boats. It isn't a navigation light, so don't use it as one, and check your local rules on beacon use before you wire it in.
Does it come with a mounting gasket?
There's no gasket in the box. If your mounting surface isn't dead flat, add a rubber base washer, and on aluminum T-tops use an isolating washer to prevent dissimilar-metal corrosion.
Is it built for the saltwater environment?
Yes. Hella Marine designs its lamps around a fit-and-forget philosophy with UV-stable materials, so the MLB50 is made to shrug off salt, sun, and vibration up on the hard top.
What's the warranty?
Full Hella Marine manufacturer warranty applies. We're an authorized Hella Marine reseller, so any warranty claim runs through us.
