Hella Marine ISO Relay Connector, 5 Spade 12-Inch Leads

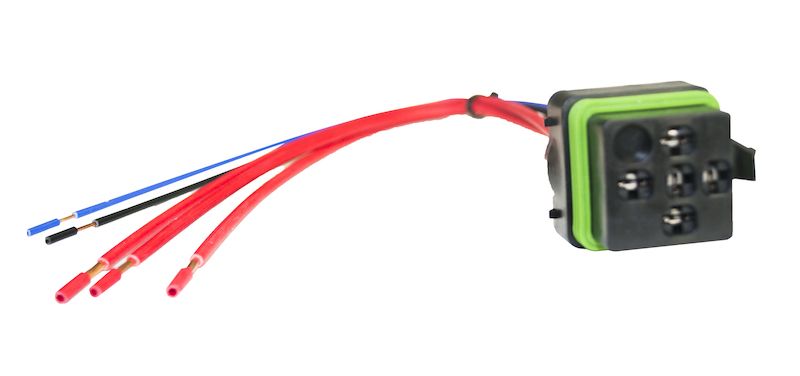

If you've ever wired an accessory circuit on a boat and had the connection corrode out a season later, you already know why a sealed connector matters. The Hella Marine H84709001 is a weatherproof ISO relay connector with five spade terminals and twelve inches of pre-wired leads. It's the socket that snaps onto a standard ISO mini relay, giving you a clean, sealed way to bring a relay into your wiring without leaving bare terminals exposed to spray, humidity, and salt air.

Here's the short version of why you'd reach for this. A relay lets a small switch control a big load. Instead of running heavy current for your horn, deck lights, or a bilge pump all the way up to a dash switch and back, you run a light trigger wire to the relay and let the relay do the heavy lifting close to the load. That keeps voltage drop down and keeps the high-current wiring short. But a relay sitting loose in a bilge or under a console is only as reliable as the connections feeding it. That's the gap this connector fills.

The five spade connections match the standard ISO relay footprint, so the connector seats onto the relay the way it's meant to. Each terminal already has a lead attached, so you're not crimping tiny spades onto a relay base in a cramped compartment. You get twelve inches of wire to work with, which is enough to route to a terminal block, a fuse holder, or an inline splice without fighting for slack. Twelve inches also gives you room to add a service loop, so the relay can be pulled and checked without tension on the connections.

Weatherproofing is the whole point here. Hella Marine builds this connector to shrug off the conditions that kill ordinary automotive connectors on the water. Think spray coming over the gunwale, condensation in a closed console, and the slow, relentless corrosion that salt air brings. A sealed body keeps moisture off the terminals so the contact stays clean and the relay keeps switching cleanly year after year. It's the kind of part you wire in once and stop thinking about.

Where does it earn its keep? Bilge pump circuits, where the relay lives in the wettest part of the boat. Horn and hailer wiring up near the bow. Deck and spreader lights, where a relay keeps the switch panel current low. Livewell pumps, wash-down pumps, and accessory circuits that draw enough current to warrant a relay. Anywhere you'd normally use a relay on land but need it to survive out on the water, this is the connector that makes that relay trustworthy.

Installation is straightforward if you've done any 12-volt wiring. Plug the connector onto your ISO relay, route the twelve-inch leads to your circuit, and make your connections at the load, the trigger, ground, and power per your relay's terminal layout. If you're not sure which lead goes where, check the relay's own diagram, since the terminal assignments follow the standard ISO pattern. We always tell folks to seal any downstream splices too, because a weatherproof connector only protects the connections it actually covers.

A couple of honest notes. This is the connector with leads, so confirm whether you also need the relay itself for your job, since the two are separate parts. And while it's a genuine Hella Marine part built for salt water, it still deserves a tidy install, secured leads, and a service loop to give you the long, quiet life it's designed for. Do that, and you've got a connection you won't be chasing down at the worst possible moment.
