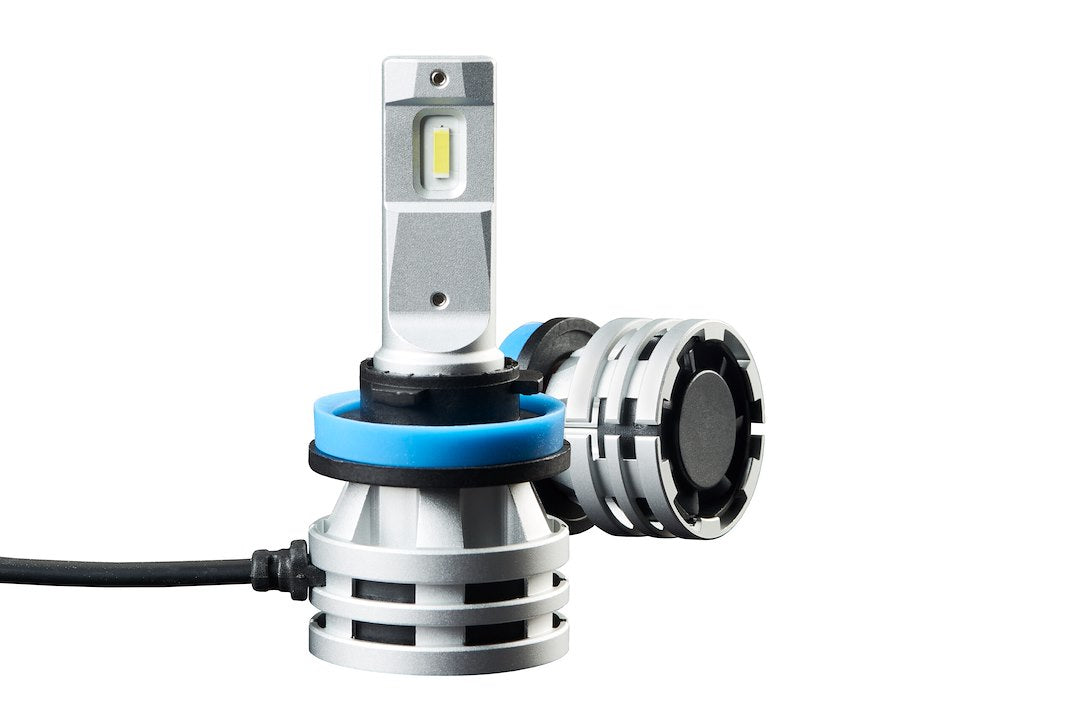

Hella Marine H8/H11/H16 LED Fog Bulbs 6500K, Set of 2
Hella Marine H8/H11/H16 LED Fog Bulbs 6500K, Set of 2 — Product description
The Hella Marine LED Fog Bulb Set is a straight LED upgrade for H8, H11, and H16 housings, shipped as a matched pair. Each dual-beam bulb throws a crisp 6500K white, pulls just 24 watts, and runs on both 12 and 24 volt systems. It's the fit-and-forget swap Hella Marine built its name on.
The Hella Marine LED Fog Bulb Set gives you a straight LED upgrade for H8, H11, and H16 housings, and it ships as a matched set of two. Each bulb runs a dual-beam LED putting out a crisp 6500K white, pulls 24 watts, and works on both 12 and 24 volt systems. If you've got old halogen fog or utility bulbs burning through amps and dimming with age, this is the fit-and-forget swap Hella Marine built its name on.
Here's the thing about H8, H11, and H16 bulbs. They share the same base family, with only small differences in the tab and wattage rating between them. That's why a lot of fog and utility housings are cross-listed for all three. This set covers the whole group, so you don't have to squint at a faded part number on the old bulb to figure out which one you need. If your housing takes any of the three, these drop right in.
The 12 and 24 volt range is the part worth calling out. Plenty of LED bulbs are built for a car's 12 volt system and nothing else. These handle both, which matters on the water where larger cruisers, sailboats, and commercial rigs often run 24 volt house systems. Wire them into a 12 volt center console or a 24 volt trawler and they light the same. One part number, two voltages, no guessing.
At 6500K, the light reads as a clean daylight white rather than the yellow of an old halogen. That cool white throws good contrast on deck and reads sharp against dark water. It's a personal call, though. Some boaters love the bright white for close-in deck work, and others running fog or spreader duty at night prefer a warmer tone to cut glare off the water. Worth knowing before you commit the whole boat to one color.
Install is about as simple as bulb swaps get. Pop the old halogen, seat the LED in the same housing, and reconnect. A couple of marine-specific tips save you a callback. LEDs are polarity sensitive, so if a bulb doesn't light on first power-up, just flip the connector and try again. Nothing's wrong with it. And because you're on saltwater, a smear of dielectric grease on the base keeps moisture out of the connection and stretches the life of the fitting.
One more real-world note. On boats or vehicles with digital circuit monitoring, dropping from a halogen to a low-draw LED can read as a bulb-out fault on the panel, because the LED simply doesn't pull enough current to look like the old bulb. That's normal for any LED conversion. A load resistor or decoder harness on that circuit clears it if your system flags it. Most simple 12 volt boat circuits won't care at all.
Where do these earn their keep? Deck lights, spreader lights, cockpit and utility fog fixtures, anywhere you've got an H8, H11, or H16 housing and want brighter, cooler, lower-draw light that won't cook your battery bank. They're a lighting upgrade, not a certified navigation light, so keep your red, green, and white nav lamps to spec for running at night. For everything else on the boat that needs to see and be seen, this set does the job.
Hella Marine has spent decades building lamps for salt air and hard use, and the whole line leans on that fit-and-forget reputation. You get two bulbs in the box, a wide 12 to 24 volt window, and a clean white beam that drops into the housings you already have. No adapters to chase, no odd voltage rules, no wondering whether you bought the right base. Swap them in, seal the base against the salt, and get back to running your day on the water instead of babysitting a dim, power-hungry halogen. Simple upgrade, honest performance.
Key Features
- H8, H11, and H16 base compatibility, one set covers all three common fog and utility housings
- Dual-beam LED design for a fuller spread than a single-element bulb
- 6500K white color temperature for a crisp, daylight-white beam on deck
- 24 watt draw per bulb, far lighter on the battery bank than old halogens
- 12 and 24 volt operation, works on both small-boat and larger house systems
- Ships as a matched set of 2, both sides done in one order
- Direct drop-in swap into existing H8/H11/H16 housings, no rewiring
- Hella Marine fit-and-forget build for salt air and hard marine use
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | H8/ H11/ H16; LED; 24 Watt; Dual Beam; White; 6500K Light Color Temperature; 12/ 24 Volt; Set Of 2 |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | 226971551 |
| UPC | 760687181156 |
| Bulb Base | H8 / H11 / H16 |
| Light Source | LED |
| Wattage | 24 Watt |
| Beam Pattern | Dual Beam |
| Light Color | White |
| Color Temperature | 6500K |
| Voltage | 12 / 24 Volt |
| Quantity | Set of 2 |
| Application | Fog Light |
Frequently asked questions
Does this set fit H8, H11, and H16 housings?
Yes. These bulbs share the same base family, and this set is rated for all three. If your fixture takes an H8, H11, or H16 bulb, these drop right in.
Will these work on both 12 and 24 volt systems?
They will. Each bulb is rated for 12 and 24 volt operation, so the same part works on a 12 volt center console or a 24 volt house system on a larger boat.
How many bulbs come in the set?
Two. It's sold as a matched set of 2, so you can do both sides of a fog or utility setup in one order.
What does the 6500K color temperature look like?
6500K reads as a clean, daylight-white light rather than the yellow of an old halogen. It throws good contrast on deck and against dark water.
How much power do these draw?
Each bulb pulls 24 watts. That's a big drop from a typical halogen fog bulb, which is easier on your battery bank over a long day.
Are H8, H11, and H16 bulbs the same?
They're close. All three share the same base family with small differences in the locating tab and wattage. That's why fog and utility housings are often cross-listed for all three, and why this set covers the whole group.
Which is brighter, H11 or H16?
Brightness comes from the bulb you install, not the base type. With this LED set you get the same 24 watt dual-beam output whether your housing is wired for H11 or H16.
Do I need a resistor or decoder to install these?
Most simple 12 volt boat circuits won't need anything. On systems with digital circuit monitoring, a low-draw LED can read as a bulb-out fault, and a load resistor or decoder harness on that circuit clears it.
One bulb didn't light on first power-up. Is it bad?
Probably not. LEDs are polarity sensitive. Flip the connector and try again. It's the most common first-install hiccup and it's an easy fix.
Can I use these as marine deck or utility lights?
Yes. They're a great upgrade for deck, spreader, cockpit, and utility fog fixtures that use an H8, H11, or H16 bulb. Just keep your certified red, green, and white navigation lamps to spec for running at night.
