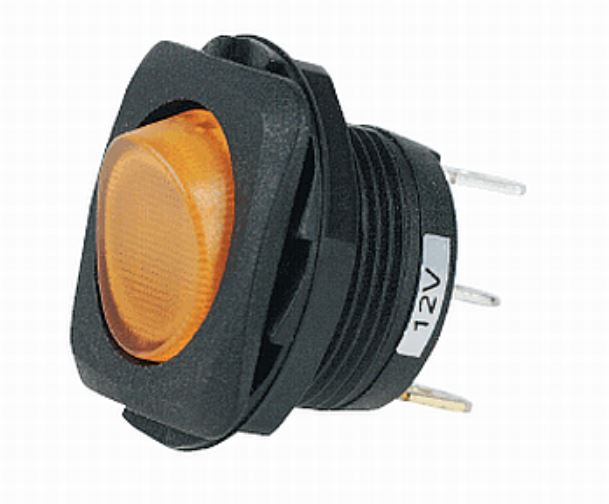

Hella Marine H61922001 Amber LED Rocker Switch

The Hella Marine H61922001 is a straightforward, sealed on-off rocker switch with a built-in amber LED. Flip it up, the circuit goes live, and the amber lens glows so you can see at a glance what's running. That's the whole job, and it does it well. On a boat, a switch that quietly corrodes and fails two seasons in is a real headache. This is the kind of part Hella Marine built its name on, the fit-and-forget gear that just keeps working.

It's rated for 12 volts and up to 20 amps. That covers most of the accessory loads you'll wire on a small to mid-size boat: nav lights, spreader lights, a livewell pump, a washdown pump, a stereo, courtesy lighting, a bait aerator. If a circuit pulls more than 20 amps continuous, step up to a heavier switch or run a relay off this one. For the everyday helm and dash stuff, though, 20 amps is plenty of headroom.

The switching is SPST, single pole single throw, which is the simple on-off you want for a single accessory circuit. No middle position, no second load. Up is on, down is off. The amber LED is the nice touch here. In a bank of switches at the helm, color-coding by function makes life easier in the dark. Run amber for one group of accessories, and you'll know exactly what's on without squinting at a label.

Wiring an illuminated rocker like this is simple, but worth doing right. These typically use three blade terminals: battery positive in, the load out to your accessory, and a ground for the LED so the light comes on when the switch is live. Use marine-grade tinned wire, crimp on heat-shrink terminals, and protect the circuit with a fuse or breaker sized to the wire and load. Don't skip the fuse. A 20-amp switch in an unfused circuit is still an unfused circuit.

One thing to be clear about: this one ships without the safety cover. If you want the flip-up guard that keeps a knee or a stray line from bumping the switch on, that's a separate part. For most helm and dash locations the bare switch is fine. But if you're mounting it somewhere it could get knocked, like a low panel near the cockpit sole, the cover is worth adding. We'd rather tell you up front than have you surprised when it shows up without one.

Mounting is panel-style. You cut a rectangular opening in your dash or switch panel, drop the switch in, and it snaps home. Give some thought to where your hand naturally lands, and keep the whole switch bank together so it reads cleanly. Behind the panel, leave enough slack in the harness to pull the switch forward if you ever need to service a terminal.

Who's this for? Anybody rigging or refitting a switch panel who wants a clean, illuminated on-off that'll hold up to salt air and spray. It suits center consoles, bay boats, pontoons, sailboats, and small cruisers alike. It isn't a heavy-duty industrial switch and it isn't meant for enormous loads, but for the accessories most boaters actually run, it's exactly the right piece. And because it's Hella Marine, you're getting a part engineered for the water, not a generic switch repurposed for the dash.

If you're building out a full switch panel, think about the whole set at once. Matching switch styles and using LED color to group functions gives you a helm that looks factory and reads instantly, even at 2 AM offshore. Wire it clean, fuse it right, and this little amber switch will outlast a lot of the gear it controls.
