Hella Marine H3 24V 70W Halogen Bulb, 1750 Lumens

The Hella Marine H3 24V 70W halogen bulb is a straight replacement for the driving, fog, and spot lamps running on your boat's 24-volt system. One bulb per blister, single filament, clear quartz glass, 1750 lumens of clean white light. If you've got a Hella Marine auxiliary lamp that's gone dark, this is the capsule that brings it back.

The big thing to get right here is voltage. This is a 24-volt bulb, built for the 24V electrical systems you'll find on larger diesel boats, commercial vessels, and heavy trucks. Run it on a 12-volt system and it'll glow dim and useless. Put a 12-volt H3 in a 24-volt circuit and it'll flash bright for a second and burn right out. So match the voltage to your system before you order. At 70 watts it pulls about 2.92 amps at 24 volts, which is easy on the wiring and the charging system.

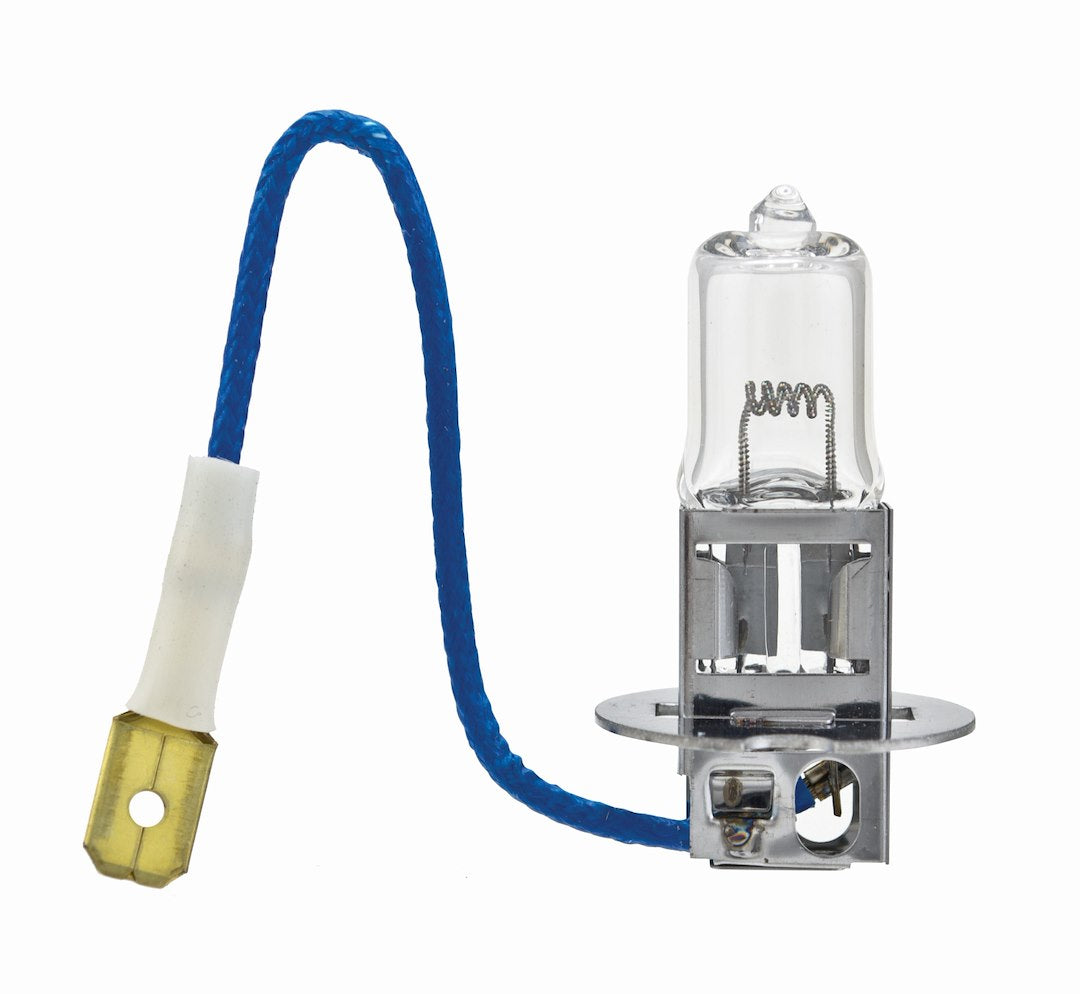

H3 is the single-filament capsule with a PK22s base and a short pigtail lead. It's the standard bulb for auxiliary lighting: fog lamps, driving lamps, spot lamps, and work lights. The T3.25 quartz envelope is compact, so it drops into tight reflector housings without a fight. If your lamp was built for an H3 capsule, this one seats the same way. Twist the retaining clip, slide the old one out, slide this one in, reconnect the lead, and you're done.

At 1750 lumens the H3 throws a bright, clear white beam that reads true against water and road signs alike. The clear glass means no color shift, so the light your reflector was designed to shape stays crisp and predictable. For fog and spot work that clarity matters. You want to see what's actually out there, not a tinted wash that hides it.

Hella Marine builds these to their Fit and Forget standard, which is their way of saying the bulb should outlast the salt, the vibration, and the damp without you thinking about it. The quartz glass handles the heat a halogen filament throws off, and the filament is braced to take the pounding a boat deck dishes out. It's a simple part, but a bad one leaves you running dark offshore, so the build quality matters more than the price tag suggests.

One install note that trips people up. Don't touch the glass with bare fingers. The oil from your skin bakes into a hot spot on the quartz envelope and shortens the bulb's life. Handle it by the metal base, or use a clean cloth or the blister it ships in. If you do touch the glass, wipe it down with a little rubbing alcohol before you power it up. Let the lamp cool before you open it, swap the capsule, and you're back in business in a couple of minutes.

Who's this for? Anyone replacing a burned-out H3 in a 24-volt driving, fog, or spot lamp, whether that's on a commercial boat, a workboat, or a heavy truck. It's a direct halogen replacement, not an LED conversion, so you get the same warm, even beam the lamp was designed around with no flicker and no wiring surprises. It ships as a single bulb, so if you're replacing a matched pair, order two and keep the beam even side to side.

Here's a tip from years of running auxiliary lamps on the water. Keep a spare on board. Halogen bulbs don't die gracefully, they just quit, usually on the darkest night when you need the lamp most. An H3 capsule is small enough to stash in the ditch bag or the helm drawer, and swapping one in the dark takes about two minutes once you've done it before. For the price of this bulb, carrying a backup is cheap insurance.
