Hella Marine Black Series 3.2 Inch LED Cube Kit, Spot Beam

The Hella Marine Black Series 3.2 Inch LED Cube Kit is a full auxiliary spot lighting package, not just a pair of bare lights. Open the box and you get two compact cube lights, a relay, a switch, and a wiring harness with a DT connector already fitted. That means you're not hunting down parts at three different counters before you can wire anything in. It's the kind of kit we like to hand a boater who wants real light thrown ahead of the bow without piecing a system together from scratch.

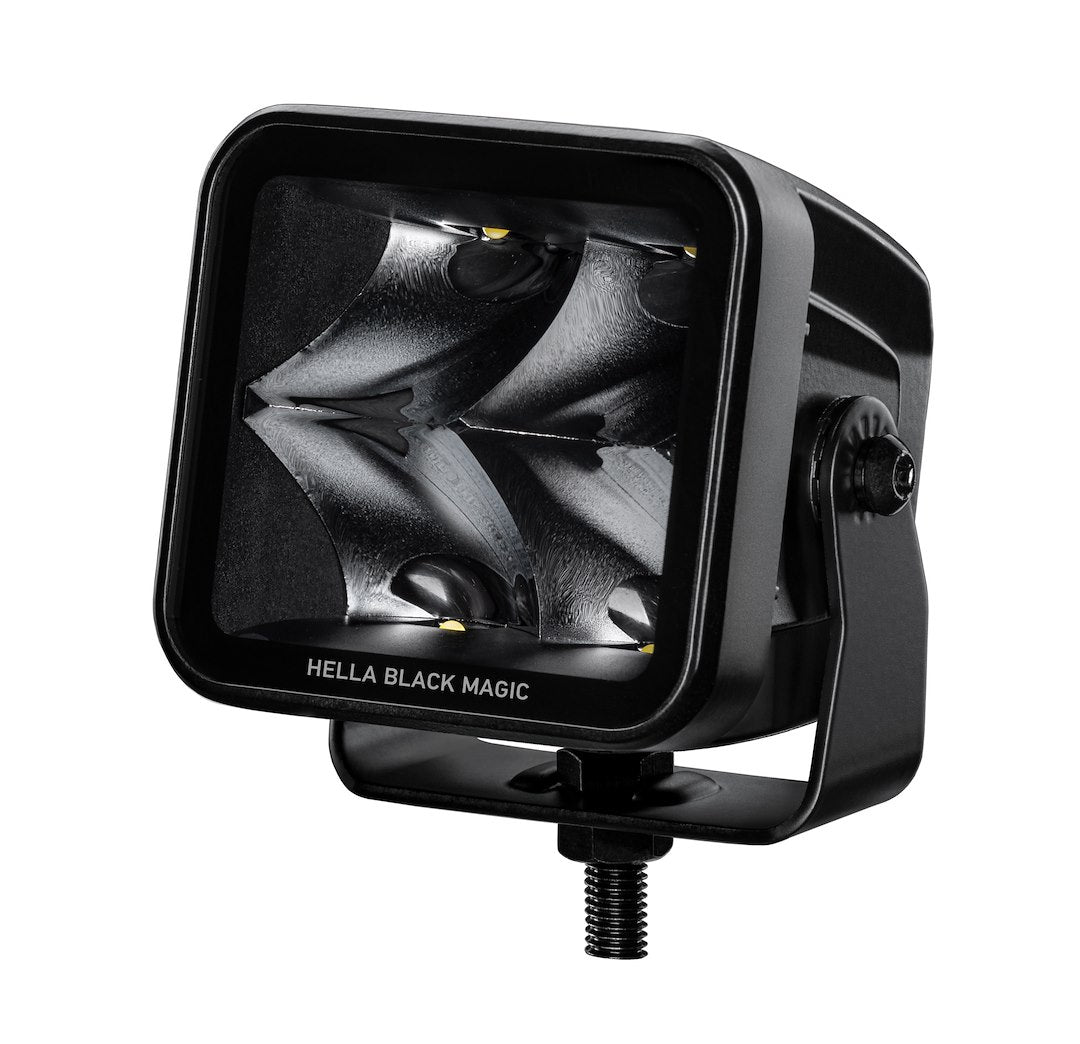

Each cube runs four LEDs behind a tight spot beam and puts out 3000 lumens. Spot is the key word here. This beam is built to reach, not to spread. If you're idling up to a mooring in the dark, picking out crab pot floats on a pre-dawn run, or spotting a channel marker well before you're on top of it, the spot pattern is what you want. It pushes a concentrated column of light down range instead of washing the deck right in front of you.

The housing measures 3.2 inches wide, 3.3 inches tall, and 2.7 inches deep. Small footprint, so these tuck onto a T-top edge, a hardtop, a radar arch, or a bow rail without dominating the look of the boat. The rectangular black housing keeps a low profile and a clean, blacked-out appearance during the day when the lights are off.

On power, each light draws 3.4 amps at 12 volts or 1.6 amps at 24 volts. Run both lights on a 12-volt system and you're looking at roughly 6.8 amps total, so size your wire and breaker for the full load. We'd run a dedicated circuit with a 12 AWG feed and a properly rated breaker or fuse rather than tapping an existing accessory run that's already carrying other gear. The included relay does the heavy switching, so your dash switch only needs to handle a light trigger current. That keeps the switched wiring simple and safe.

Wiring is where the kit really earns its keep. The harness ships with a DT connector, a sealed, locking plug that's the standard for gear that lives outdoors and gets rained on, splashed, and vibrated for years. The relay and switch are in the box, so a competent DIYer can lay out the run, mount the lights, and land the connections in an afternoon. One tip from the water: the factory pigtails can be short for a long console run, so plan to extend them with proper marine-grade connectors and heat shrink if your switch panel sits well aft of the lights.

Mounting is universal stud mount. Each light hangs off a single threaded stud, which makes aiming quick and keeps the hardware count low. Because it's a single stud, we always tell folks to use the locking hardware, add a backing plate behind thin fiberglass or aluminum, and check the aim after the first few runs. A stud mount that isn't snugged down properly can walk out of alignment from the pounding a center console takes offshore. A dab of thread locker and a backing washer solve that for good.

These cubes carry the Hella Marine name, and that badge comes with a long reputation for fit-and-forget hardware built from quality materials for life on the water. The same lights are a favorite in the off-road and utility world too, so they're equally at home on a work truck, a UTV, or a trailer. Marine helm, dune buggy, or job-site rig, the spot beam and the sealed connector do the same job.

A couple of honest notes so you buy the right thing. This is the spot version, which is a reach light, not a wide wash for close-in deck work. If you want to flood the cockpit or the swim platform, pair these with a wider beam so each does what it's good at. And this kit contains two lights, the relay, the switch, and the harness. That's a complete two-light install, ready to wire the day it lands on your bench.
