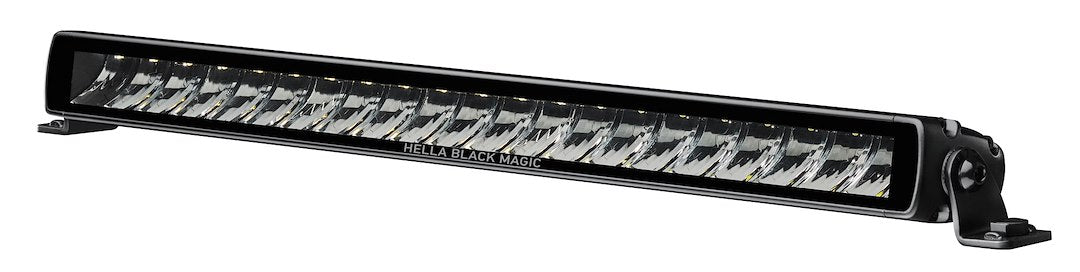

Hella Marine Black Series 20-Inch LED Spot Lightbar

Hella Marine's Black Series 20-inch thin lightbar is built for boaters who run before dawn or come home after dark. It's a spot-beam LED bar that throws a tight, long column of light down the water so you can pick out crab pots, channel markers, and floating debris well before you're on top of them. Twenty-one clear LED bulbs, 6000 lumens, and a low-profile black housing that tucks into a T-top or hardtop without looking like an afterthought.

The spot beam is the whole point here. A spot pattern concentrates the light into a narrow throw instead of a wide wash, so it reaches out. Owners running center consoles use it to spot pots and markers at a couple hundred yards, which is exactly what you want when you're idling out of an unfamiliar inlet in the dark. It's not the bar you'd pick for close-in docking floodlight duty. For that you'd want a flood pattern. This one is about distance.

Power draw is honest and worth planning for. At 12 volts the bar pulls 5.7 to 8 amps, so figure on 10-gauge wire minimum and a 15-amp breaker or fuse on the circuit. If your runs are long, past 15 feet or so, watch your voltage drop and size the wire up. The bar is happy on either 12 or 24 volt systems, and on a 24-volt boat the draw drops to 2.8 to 3.9 amps, which halves your amperage and makes the wiring easier on bigger trawlers and sportfishers.

It's a flush-mount unit, and the housing is a slim 2.1 inches wide by 1.6 inches tall, so it sits nearly flush against the surface once it's in. Take your time on the cutout. A clean, accurate cutout is what keeps water from pooling behind the housing, so lay it out carefully, bed it in a good marine sealant, and you'll have a dry, tidy install. Hella Marine includes the mounting hardware in the box, so you're not chasing down brackets and fasteners after it shows up.

Heat is the enemy of any LED array, and a 21-bulb bar this bright makes real heat. Give it a little breathing room behind the panel if you're recessing it into a hardtop or console. A small air gap keeps it running cool and keeps the output steady over a long night. Mount it flat and open and it'll run all night without complaint.

Who's this for? Anglers who leave the dock in the dark to hit the first spot at sunrise. Cruisers picking their way through tight, unlit channels. Anyone running a center console, walkaround, or express who wants serious forward throw without a bulky, dated-looking fixture cluttering the T-top. The 20-inch length gives you a wide bank of light without dominating the boat, and the thin profile means it doesn't catch as much wind or spray up top.

A quick word on the lens and finish. The clear lens sits over the 21-bulb array and keeps the beam crisp and the color clean. The black housing looks sharp against a dark hardtop. Like any exterior light, it'll last longest if you rinse it with fresh water after salt runs and keep it covered when the boat's on the trailer or the hard for the season. Simple care, long life.

Hella Marine's whole reputation is built on fit-and-forget hardware, sealed lamps that keep working season after season in salt and spray. The Black Series bar fits that mold: aluminum housing, clear lens, and marine-grade sealing throughout. If you run a boat where getting home safely after dark matters, and that's most of us, this is a clean, bright, well-built way to light the water ahead.
