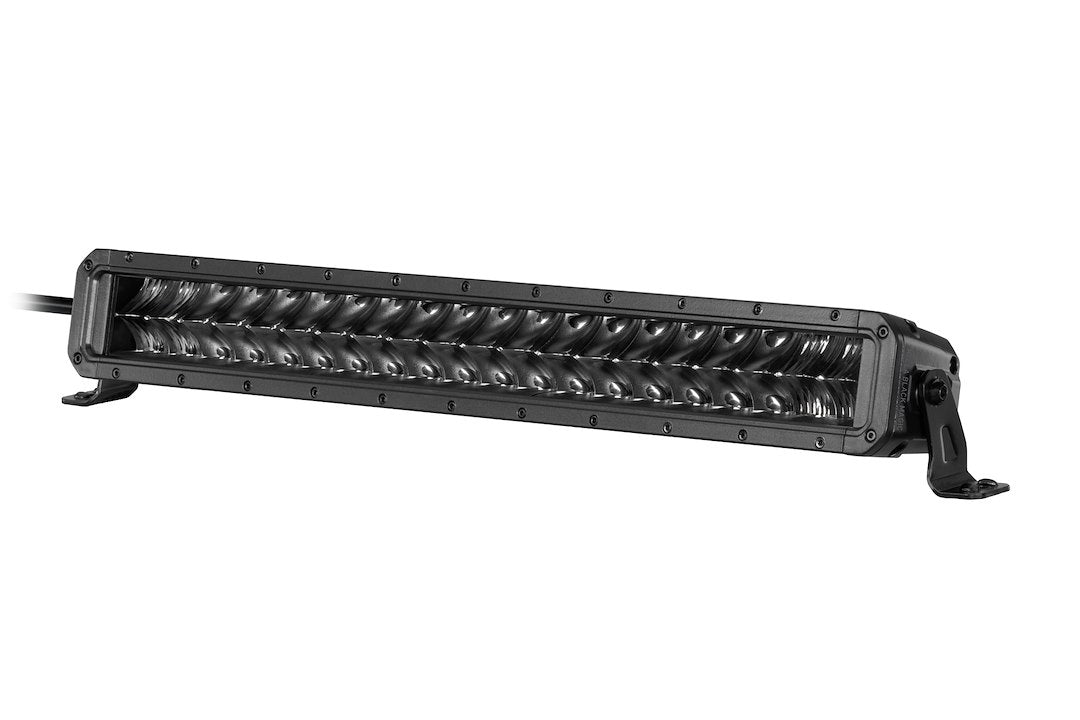

Hella Marine Black Magic Tough 21.5" Double Row LED Light Bar

The Hella Marine Black Magic Tough is a 21-1/2 inch double row LED light bar built for boats that run in the dark. Forty LEDs put out up to 11,000 lumens, and that's enough to turn a black cove into something you can actually read. Hella Marine builds these lamps as what they call "Fit and Forget" gear, and after rigging a few of them, that's a fair way to describe it. You wire it in once and stop thinking about it.

The combo beam is the part worth understanding before you buy. A double row of LEDs lets Hella split the optics, so some of those diodes throw a tight spot far down the water while the rest spread a wide flood right in front of the boat. That's the combination you want on a light bar. Pure spot beams reach out but leave a dark hole close in, and pure floods light up the foredeck but die off at distance. This one covers both, which is why it works whether you're picking up crab pots at a distance or backing into a slip.

Power is flexible. It runs on anything from 10 to 30 volts DC, so it drops onto a 12 volt center console or a 24 volt system without any changes. Do keep the draw in mind. At 215 watts, this bar pulls close to 18 amps on a 12 volt system, so it wants proper wire. On the water we run 8 to 10 AWG straight back toward the battery through a relay and a fuse, not a thin accessory lead tapped off the dash. Undersized wire is where you lose brightness to voltage drop, and it's the most common reason a bar this bright looks dimmer than it should.

The build is where the marine pedigree shows. The housing is die-cast aluminum, which sheds heat off the LEDs and stands up to salt air far better than a plastic shell. It ships with a black stainless steel mounting bracket, so the hardware holding it to your hardtop or bow rail isn't going to rust into a stain down your gelcoat. One tip from years of saltwater installs: hit the electrical connections with dielectric grease when you wire it in. Stainless resists corrosion, but the pins and terminals behind the connector still appreciate the protection, and it makes the next service a lot easier.

The smoke lens is a nice touch. When the bar is off, it reads as a clean, blacked-out strip instead of a row of bright reflectors, so it blends into a dark hardtop or tower during the day. Switch it on and the combo beam does its work. If you already run spreader lights, plan to wire the bar to its own switch and aim it separately. You want the reach out front, not glare bouncing back at the helm.

A couple of things about heat and placement. Forty LEDs at full draw make heat, and that's exactly why Hella went with a die-cast aluminum housing instead of plastic. The metal acts as a heat sink and pulls warmth away from the diodes, which is a big part of why these lamps last. Give it a little air behind the housing if you can, rather than burying it tight against a surface, and it'll run cooler and longer. When it comes to aiming, mount the bar level and set it so the hot part of the beam lands out on the water where you're actually looking, not down at your own bow wake. A few minutes spent aiming it right at the dock pays off every night after.

Who's this for? Anglers running to the grounds in the dark, anyone who idles into an unlit ramp at the end of the day, and boaters who want real forward lighting on a hardtop, tower, or bow. Mount it high and level for the best throw, run the right wire, and it'll do exactly what a light bar should. It clears the water ahead and then gets out of your way.
