Hella Marine 996588001 LED Work Lamp 1000lm 12/24V
Hella Marine 996588001 LED Work Lamp 1000lm 12/24V — Product description

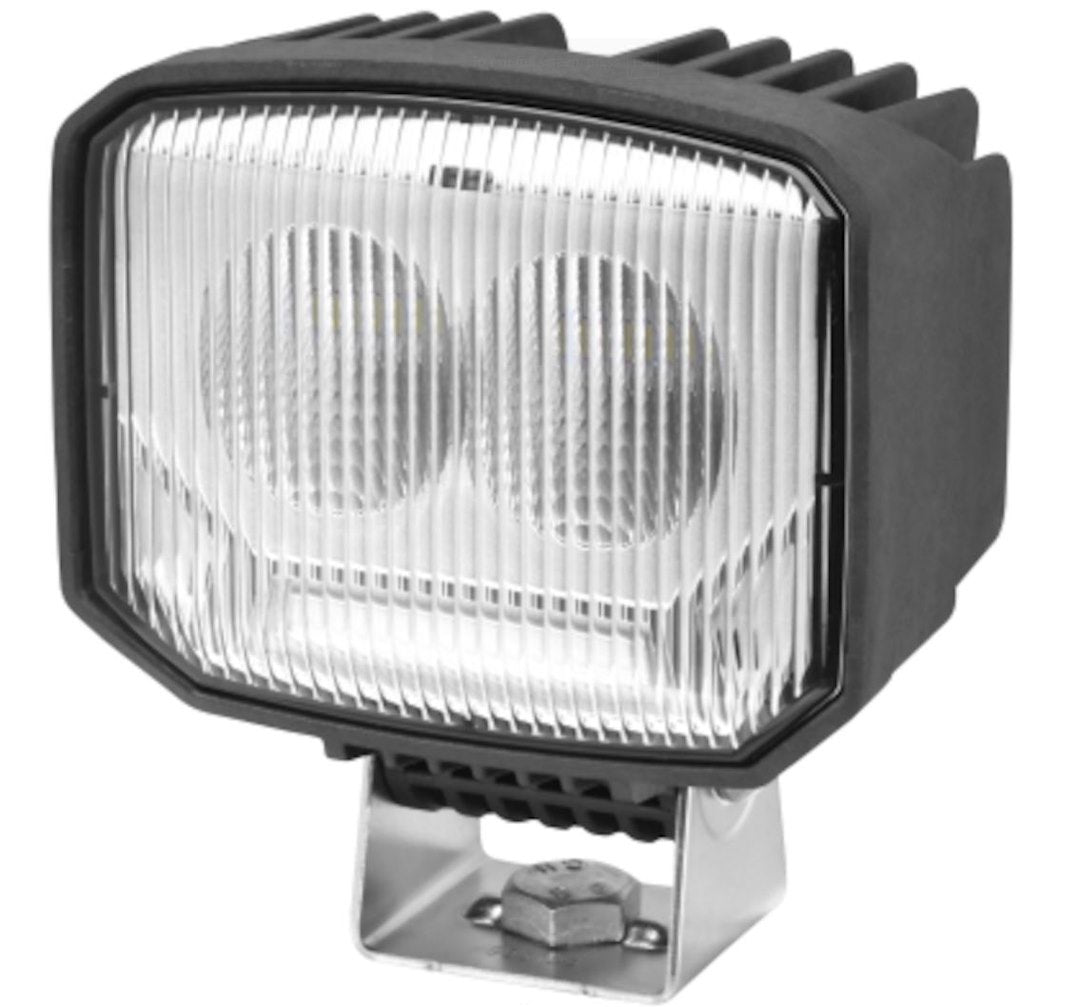

The Hella Marine 996588001 is a compact LED work lamp that throws 1000 lumens of clean flood light from just two LEDs. It runs on 12 or 24 volts, so it drops into almost any boat's DC system, and the swiveling bracket lets you aim it exactly where you're working. Black synthetic housing, polycarbonate lens, built to live outside.
There's always that one spot on the boat where you need light and don't have it. The cockpit at four in the morning when you're rigging lines. The transom when you're cleaning fish after dark. The engine well when something needs a second look. The Hella Marine 996588001 work lamp is built for exactly those jobs, a small flood that puts real light right where your hands are working.
It runs two LEDs for 1000 lumens on a 12 watt draw. That's a bright, even flood, not a tight spot beam, so it washes a whole work area instead of punching one bright hole in the dark. LEDs also run cool and pull little current, which matters when you're working off the house bank late at night and don't want to watch the voltage sag while the fridge is still cycling.
The lamp is happy on either 12 or 24 volts, so it drops into just about any boat without a converter. Run a 24V system on a bigger cruiser or a 12V setup on a center console, it's the same part and the same wiring either way. Do run proper gauge wire on longer runs, though. On a 12V bank sitting down around 11.5 volts, a long thin wire will cost you brightness, so keep the run short and the wire fat enough for the load.
Positioning matters more than raw output with a work lamp. Mount it a little above and behind where you'll be standing so the light falls forward onto the job and not back into your face. A flood this size does its best work close in, lighting a bait station, a cleaning table, or an open engine hatch, rather than trying to reach the far end of a big deck.
The swiveling mounting bracket is the part you'll appreciate on install day. You bolt the base down once, then tilt and lock the lamp to aim it, whether that's down onto the deck, out across the cockpit, or up under a hardtop. On an aluminum boat, use isolating hardware and stainless fasteners so you don't start a corrosion problem right at the mount. And on a thick coaming you may want longer bolts than whatever's rattling around in the drawer.
Build is standard Hella Marine, which is to say it's made to sit outside and get ignored for years. The housing is black synthetic, the lens is polycarbonate, and the whole unit is compact at 127mm tall, 112mm wide, and 87mm deep. That small footprint clears most T-top frames and tucks into tight spots on a console where a bigger flood simply won't fit.
Because it's LED and fully solid-state, there's no filament to shake loose, which is exactly what you want on a hull that pounds through chop all day. Keep an eye on the bracket hardware over a long season of vibration and snug it if it backs off, the same quick check you'd give any deck-mounted gear. That's not a knock on the lamp, that's just boat life.
Who's it for? Anglers who fish well past sunset and need the transom lit for the run home. Cruisers rigging and de-rigging in the dark. Anyone who's tired of holding a flashlight in their teeth while both hands are busy. It's a work light, so think task lighting, not navigation, and not a full spreader flood for the entire deck. For a single work zone, cockpit, bait station, engine well, or dinghy davits, it's sized just right.
A few notes from the water before you drill. Wire it to its own switch so you can kill it without hunting through a panel, and put it on a fuse. Aim it where the glare won't wash back into your eyes or across a helm screen. And like any polycarbonate lens living in strong sun, it'll hold up better if it isn't baking uncovered season after season, so a simple cover when the boat's on the hard goes a long way.
Bottom line, it's a compact, no-drama LED work lamp from a name that's been lighting boats for decades. Bright enough to matter, small enough to fit, and simple enough to wire in an afternoon.
Key Features
- Two-LED array delivers 1000 lumens of even flood light for close-in deck and cockpit work
- 12 watt draw runs cool and sips current, easy on the house bank
- Works on both 12 and 24 volt DC systems, one part for any boat
- Swiveling mounting bracket tilts and locks so you aim the beam exactly where you need it
- Black synthetic housing built to live outside on the water year-round
- Polycarbonate lens stands up to spray, knocks, and sun
- Compact 127 x 112 x 87 mm footprint fits tight consoles and clears most T-top frames
- Solid-state LED design has no filament to shake loose in chop
- Flood beam pattern washes a whole work zone instead of a narrow spot
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Marine 996588001 LED Work Lamp |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | 996588001 |
| UPC | 09002920170703 |
| Light Function | Work Lamp |
| Luminous Output | 1000 Lumens |
| Power | 12 Watt |
| Operating Voltage | 12/24 Volt |
| LED Count | Two LED |
| Lens Material | Polycarbonate |
| Housing Material | Black Synthetic |
| Housing Color | Black |
| Height | 127 mm |
| Width | 112 mm |
| Depth | 87 mm |
| Mounting | Swiveling Mounting Bracket |
Frequently asked questions
Does the 996588001 run on 12 or 24 volts?
Both. It's a 12/24 volt lamp, so it drops into a 12V center console or a 24V cruiser using the same part and the same wiring.
How bright is it?
1000 lumens from two LEDs on a 12 watt draw. It's a flood, so it lights a whole work zone evenly rather than throwing a narrow spot.
Is it a spot or a flood?
A flood. It washes light across a close-in work area like a bait station, a cleaning table, or an open engine hatch.
Can I aim it after it's mounted?
Yes. The swiveling bracket lets you tilt and lock the lamp so you can point it down at the deck, across the cockpit, or up under a hardtop.
What's the lens made of?
Polycarbonate, which handles spray, knocks, and sun without cracking.
How big is it?
127mm tall, 112mm wide, and 87mm deep. Small enough to tuck into tight console spots and clear most T-top frames.
Will it hold up outside on a boat?
That's what it's built for. Hella Marine designs these to sit outside for years. The housing is black synthetic and the whole unit is solid-state LED with no filament to fail.
How much power does it draw?
12 watts. That's about one amp at 12 volts, a light load on a house bank, so you can run it a while without worrying about the batteries.
What gauge wire should I use?
Size the wire to the run length. Short runs are fine with common lamp wiring, but on longer runs use heavier gauge so voltage drop doesn't dim the output, especially on a 12V system.
Is it a navigation light?
No. It's a work lamp for task lighting. Use it to light a work area, not as a running or anchor light.
Should it have its own switch?
We'd wire it to a dedicated switch and fuse so you can turn it on and off without hunting through the panel and keep the circuit protected.
