Hella Marine 357201001 3.5-Inch LED Spot Lamp | 18W
Hella Marine 357201001 3.5-Inch LED Spot Lamp | 18W — Product description

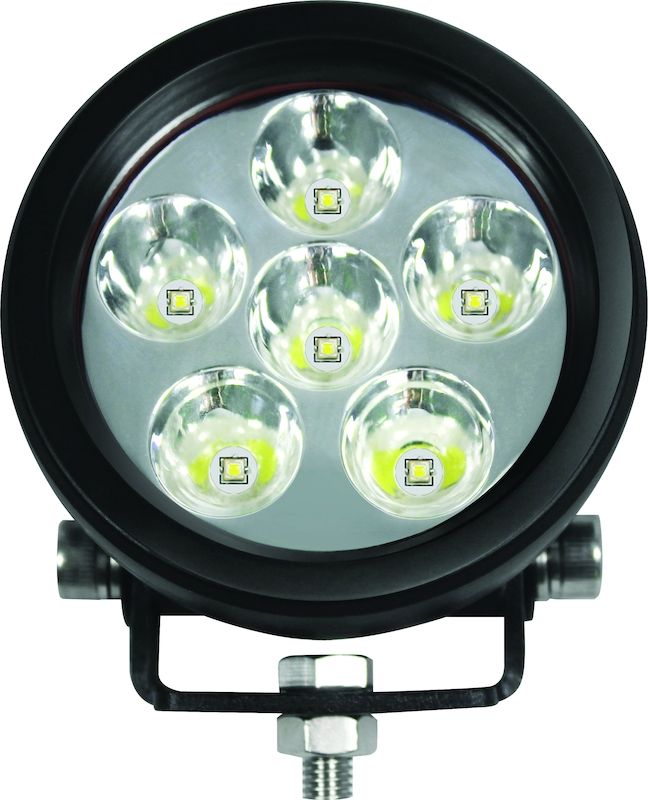

The Hella Marine 357201001 is a compact 3.5-inch round LED spot lamp that puts 995 lumens of tight, long-throw light exactly where you aim it. Six sealed LEDs, an 18-watt draw, and 10 to 30 volt multivolt operation mean it fits 12V and 24V boats alike, and it ships with a stainless steel bracket ready to bolt on.
The Hella Marine 357201001 is a compact 3.5-inch round LED spot lamp that throws a tight, focused beam exactly where you aim it. Six clear LEDs sit behind a clear lens in a sealed black housing, and the whole unit runs on anything from 10 to 30 volts. So it drops onto a 12-volt runabout or a 24-volt system without a converter or a second thought. Hella Marine built its reputation on lamps you bolt on once and forget about, and this little spot fits right into that fit-and-forget mold.
At 18 watts it draws a modest load and puts out 995 lumens. That's not a light bar, and we won't pretend it is. It's a purpose-built spot, and the spot beam pattern is exactly what you want when you need to reach out and put light on one thing. A mooring ball at the end of a long, dark approach. A channel marker you're squinting at. The cleat on a piling while your crew is trying to loop a line around it. A flood washes the whole area with soft light. A spot reaches. If you've ever fumbled a night landing because your deck lights lit up everything except the one spot you actually cared about, you already know why a tight beam earns its place at the helm.
The build is classic Hella Marine. The housing is sealed against spray and weather, the lens is clear polycarbonate, and the mounting bracket is stainless steel, so the hardware holds up in salt air instead of rusting into a stain on your hardtop. LEDs run cool and sip current compared to an old halogen spot, and there's no filament to shake loose the first time you pound across a chop. That matters on a boat, where vibration is the thing that kills most lamps long before the bulb ever wears out.
Mounting is straightforward. It's a universal stud mount, so the lamp bolts through a single hole on a console, a hardtop, an A-frame, a roll bar, or a fabricated bracket of your own. The included stainless bracket lets you angle the beam and lock it down. One tip from the field. If you're mounting to fiberglass or a cored deck, seal the stud base properly with a good marine sealant so you don't invite water into the core. And check the stud after your first few hard runs. A universal stud on a small round housing can work loose with enough vibration, so a dab of thread locker and a re-check earns its keep.
Wiring is simple. At 18 watts the lamp pulls roughly 1.5 amps on a 12-volt system, so run it off a switched, fused accessory circuit back to your switch panel. Give it its own switch if you want to flick the spot on independently of your running or deck lights. The multivolt range means the same lamp works whether your house bank is 12 or 24 volts, which is handy if you run a bigger boat with a 24-volt system.
Where does it shine? Foredeck work at anchor. Spotting a mooring or a slip on the way in. Lighting a swim platform or a boarding ladder. Aiming a beam down at the water to check a prop or a fouled line. Because it's a universal stud mount and runs 10 to 30 volts, plenty of folks also put these on utility rigs, trailers, and off-road setups where a small, sealed, focused spot beats a big fragile lamp. It's sold as a single, so grab one for a dedicated task light or buy a pair if you want balanced coverage across the bow or the transom.
Bottom line, this is a small, honest, well-built spot lamp from a name boaters trust for lighting. It won't turn night into day across a whole cove. What it will do is put a clean, bright beam on the one thing you need to see, run for years without fuss, and shrug off the salt while it does it.
Key Features
- 6 clear LEDs at 995 lumens: a bright, focused spot from a lamp small enough to tuck almost anywhere
- 18-watt draw, roughly 1.5 amps at 12V: light enough to run off a switched accessory circuit without stressing your electrical system
- 10 to 30 volt multivolt operation: works on 12V and 24V boats and utility rigs with no converter
- Spot beam pattern: tight, long-throw light for reaching a mooring, a marker, or a work spot instead of washing the whole deck
- Sealed black housing with clear lens: built to shrug off spray, weather, and UV the way Hella Marine lamps are known for
- Stainless steel mounting bracket included: corrosion-resistant hardware that holds up in the salt
- Universal stud mount: bolts to a console, hardtop, A-frame, or roll bar through a single hole
- 3.5-inch round footprint: compact enough to fit a crowded hardtop or bow rail
- Sold as a single lamp: add one for a task light or pair them up for balanced coverage
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | LED Bulb; 6 LED Clear Bulb; 3.5 Inch Round; 18 Watt; Spot Beam; Clear Lens; Black Housing; Universal Stud Mount; Single; With Stainless Steel Bracket |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | 357201001 |
| UPC | 760687160953 |
| Bulb Configuration | 6 Clear LEDs |
| Lens Diameter | 3.5 in (90 mm) |
| Wattage | 18 W |
| Voltage Range | 10 to 30 V DC |
| Light Output | 995 lumens |
| Beam Pattern | Spot |
| Lens Color | Clear |
| Housing Color | Black |
| Mounting Style | Universal Stud Mount |
| Included Hardware | Stainless Steel Bracket |
| Quantity | Single |
Frequently asked questions
What voltage does the Hella Marine 357201001 run on?
It's a multivolt lamp rated for 10 to 30 volts DC, so the same unit works on a 12-volt boat or a 24-volt system without any converter.
How bright is it?
It puts out 995 lumens from six clear LEDs on an 18-watt draw. That's a focused task spot, not a floodlight, so it's built to reach one target rather than wash a whole area.
Is this a spot beam or a flood beam?
It's a spot beam. The pattern is tight and long-throw, which is what you want for putting light on a mooring ball, a channel marker, or a work spot at a distance. A flood spreads light wide and short.
Does it come with a mounting bracket?
Yes. It ships with a stainless steel bracket and mounts with a universal stud through a single hole, so you can bolt it to a console, hardtop, A-frame, or roll bar and angle the beam.
Can I use it on a 24-volt system?
Yes. The 10 to 30 volt range covers both 12-volt and 24-volt systems, so it's a good fit for larger boats or mixed setups.
Is it sold as a pair or a single?
It's sold as a single lamp. Order one for a dedicated task light, or buy two if you want a matched pair across the bow or transom.
Will it hold up in saltwater?
It's built for it. The housing is sealed, the bracket is stainless steel, and Hella Marine lamps are known for their fit-and-forget durability. If you mount to fiberglass, seal the stud base with a marine sealant so water can't reach the core.
How do I wire it?
At 18 watts it draws roughly 1.5 amps on a 12-volt system. Run it off a switched, fused accessory circuit back to your switch panel, ideally on its own switch so you can turn the spot on separately from your running or deck lights.
How big is it?
It's a 3.5-inch (90mm) round lamp, compact enough to fit a crowded hardtop, A-frame, or rail where a larger lamp won't go.
Can I use it off the water?
Absolutely. The universal stud mount and 10 to 30 volt range make it a good fit for utility rigs, trailers, and off-road setups where you want a small, sealed, focused spot.
