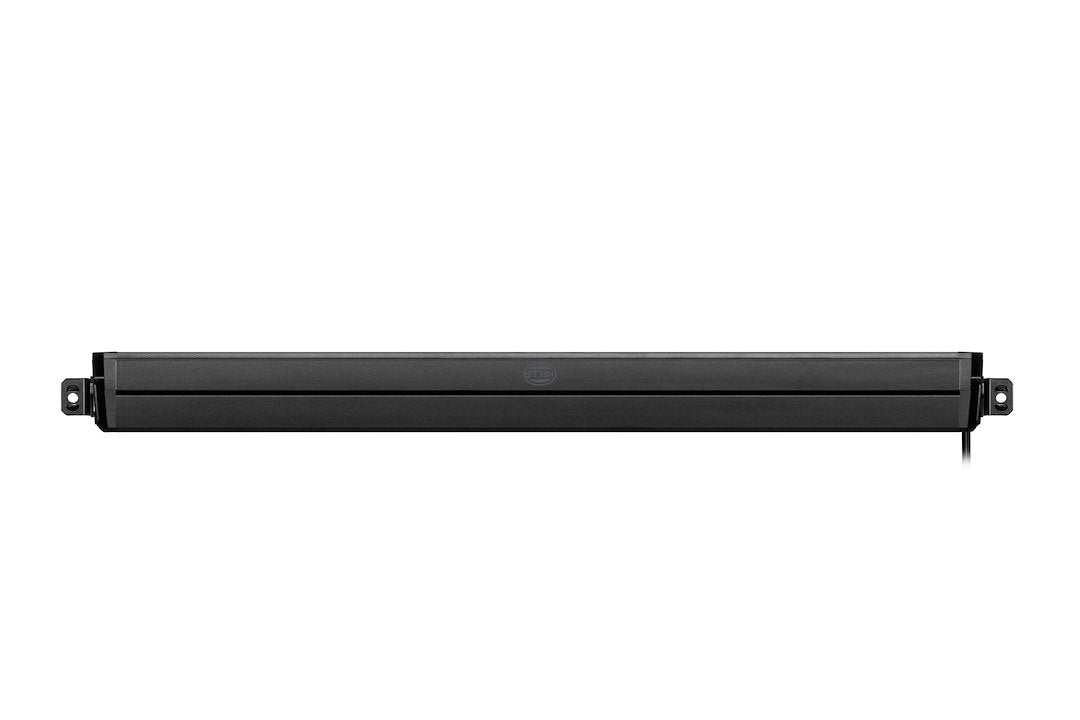

Hella Marine Black Magic Tough 30-Inch Double Row LED Light Bar

The Hella Marine Black Magic Tough light bar is a 30-inch, double-row LED bar built to throw serious light across open water. Sixty LEDs pull 310 watts and put out 13,500 lumens, which is enough to turn a dark cove into something you can actually read at a glance. If you run at night, dock in unlit marinas, or just want a wide wash of light off the T-top, this is the kind of bar that earns its spot on the boat.

Hella built the Black Magic line for boaters who don't want to think about their lights after they're wired in. The housing is die-cast aluminum, so it sheds heat well and holds up to the beating a hardtop takes offshore. The smoke lens gives it a clean, blacked-out look when it's off, and the whole thing ships with a black stainless steel mounting bracket that matches the finish. It's a combo beam, meaning you get a tight center throw for distance plus a wider spread on the outer optics. Good for spotting a channel marker way out, and still useful for lighting up the water right off the bow.

Let's talk power, because 310 watts is real load. At 12 volts that's north of 25 amps, so wire it right. We run 8 to 10 AWG for the main feed on a bar this size and put it on its own 30-amp breaker or fuse. Skimp on wire gauge over a 20-foot run to the helm and you'll see voltage drop dim the output. The bar takes anything from 10 to 30 volts DC, so it's happy on 12V and 24V systems alike, but protect the driver from the voltage spikes an outboard can throw. A simple inline fuse and clean grounds go a long way.

Mounting matters too. A 30-inch double-row bar has some surface area, and it will find every loose bolt on a center console running through chop. Use the supplied bracket, back it with locknuts, and hit the threads with a dab of threadlocker so nothing walks loose after a season of pounding. One more thing we've learned the hard way. Die-cast aluminum sitting against a stainless bracket in salt air will corrode at the contact points. Put a little dielectric grease between the housing and the bracket when you mount it, and you'll thank yourself in two years.

The combo beam is the right call for most boats, but know what it does. That tight center section throws far, which is exactly what you want scanning ahead at speed. Up close, you'll notice hot spots rather than a perfectly even flood. If you're mostly using this for docking and close-in work, pair it with your existing spreader lights or floods for fill. For running and spotting at distance, the combo pattern is hard to beat. The smoke lens does cut usable output a touch in heavy fog or spray, which is the tradeoff for that stealthy look. Clear-lens fans give up the appearance for a bit more punch in the muck. Your call.

Who's this for? Offshore center consoles running home after dark, sportfishers that want a wide light wash across the cockpit and water, and anyone rigging a hardtop or tower who wants one clean bar instead of a scatter of smaller lights. On a boat under 22 feet the 30-inch length can dominate the profile, so eyeball your mounting real estate first. On a 24-foot and up hardtop, it looks right at home. Runabouts and pontoons can run it off the arch or tower too, as long as your charging system keeps up with the draw.

This is a genuine Hella Marine part, MPN 358197411, and it carries the full manufacturer warranty. Hella's whole pitch on the marine line is fit and forget, and that tracks with what we see out there. Wire it correctly, seal your connections, grease the bracket contact, and this bar will light your nights for a long time. It's a premium piece at a premium price, and it's built like it.
