Hella Marine 30A 12V 4-Pin Relay | 965400071

Here's a little part that does a lot of quiet work on a boat. The Hella Marine 965400071 is a 30-amp, 12-volt relay with four blade terminals, and it's one of those pieces you wire in once and never think about again. A relay is really just an electrically operated switch. A small trigger current flips a much larger circuit on and off, which is exactly what you want when you're adding accessories to a boat that wasn't built for them.

So why not just run everything through a dash switch? Because most panel switches aren't rated to carry the kind of current a pump, a horn, or a bank of lights pulls. Push 20 or 30 amps through an undersized switch and you get heat, voltage drop, and eventually a melted switch or a scorched connector. A relay solves that. You run the heavy power through the relay's contacts on short, fat wire, and you use a thin trigger wire to tell it when to close. The switch at your helm only ever sees a fraction of an amp.

On the water this thing earns its keep everywhere. Bilge pumps, washdown pumps, livewell pumps, electric horns, spreader and spotlight banks, blower fans, fuel pumps, and auxiliary LED bars are all good candidates. Anywhere you're switching a motor or a high-draw load from a small switch or from an accessory output that can't handle the current, a 30-amp relay belongs in the circuit.

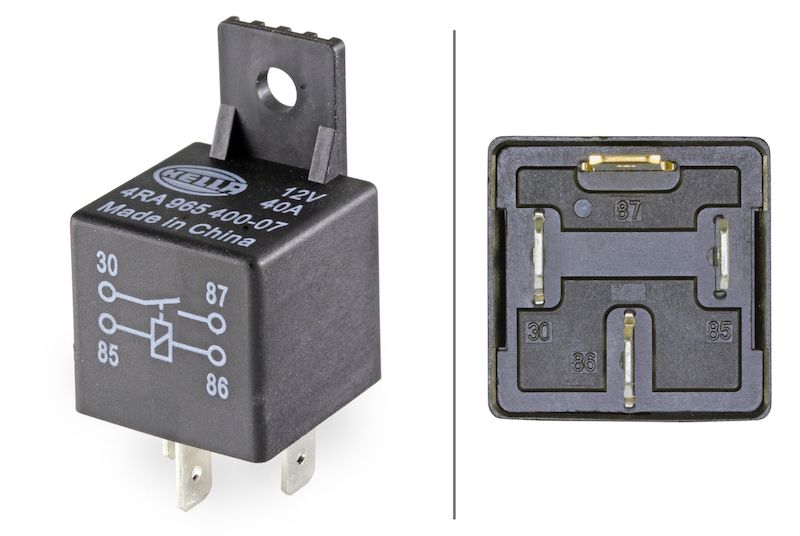

Wiring it is straightforward once you know what the four blades do. Two of them are the coil, the control side that gets your trigger voltage and a ground. When the coil energizes, it pulls the contacts closed. The other two blades are the load side. One takes battery power in through a fuse, and the other sends switched power out to your accessory. With four terminals you've got a normally open, single-throw setup, meaning the load stays off until the coil is triggered. That covers the vast majority of accessory jobs on a boat.

Size your wire and fuse to the load. At 12 volts a 30-amp circuit wants heavy conductor, usually around 10-gauge for the power runs, and it should always be fused close to the battery so the relay and the wiring are protected. The trigger side can be light wire since it carries almost nothing. Don't skip the fuse. The relay's 30-amp continuous rating is the ceiling, not a target, so leave yourself some margin and keep continuous loads comfortably under it.

This is Hella Marine, so the build is what you'd expect from a company that's been making marine electrical gear for decades. Their whole approach is fit-and-forget, and a relay is the purest example of that idea. Mount it in a dry, protected spot like inside a console or a dash cavity, keep the terminals clean and tight, and it'll switch reliably for years. The blade terminals accept standard push-on connectors, so you don't need anything special to wire it in.

Who's it for? Anyone adding power accessories to a boat, from a first-time owner wiring in a second bilge pump to a rigger building out a center console. It's a universal building block, not a boat-specific part, which is exactly why it's worth keeping a spare in the parts bin. If you're switching anything that draws real current, start here.

One more reason boaters like relays. When something does eventually quit, swapping one is a two-minute job. Pull the four push-on connectors, note which blade went where, and slide the replacement on. There's no soldering and no special tool. That's a big part of why a 30-amp relay is such a common spare to carry on board. If an accessory stops working, the relay is one of the first and easiest things to rule out, either by swapping in a known-good unit or listening for the faint click of the coil when you trigger it.
