Hella Marine 3057 Halogen Bulb, 12V 27/7W W2.5x16q

The Hella Marine 3057 is a dual-filament miniature halogen bulb built for 12-volt systems. One bulb, two jobs. The bright 27-watt filament handles the high-output function like a brake or stop lamp, and the dimmer 7-watt filament covers the low-output side like a running or tail light. It's the kind of small part you don't think about until a lamp goes dark, and then it's the only thing that matters.

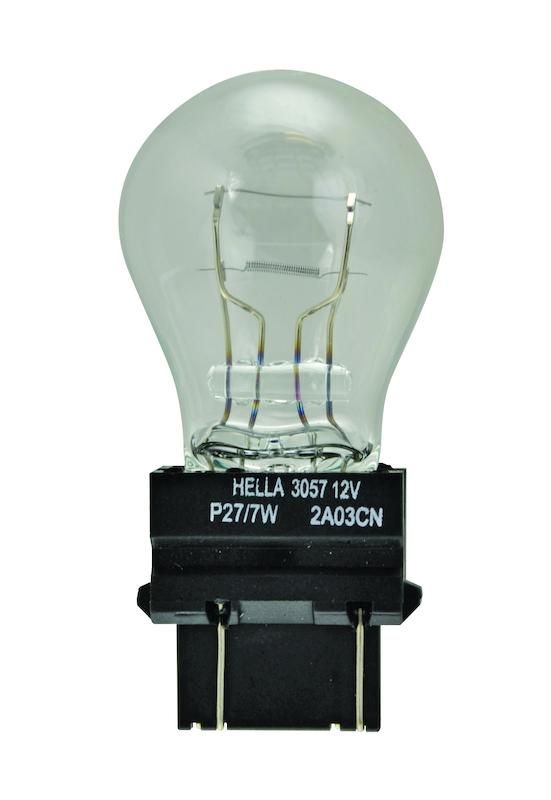

This is a clear, uncolored bulb with an S8 glass envelope and a W2.5x16q plastic wedge base. The wedge base means there's no metal bayonet pin to line up. You just push it straight into a matching socket and it seats. The quad-contact wedge is what lets a single bulb carry two separate filaments, so both circuits feed through the one base. If your fixture uses a W2.5x16q socket and calls for a 27/7W bulb, this is the right shape.

We like Hella Marine for the small stuff because they treat it seriously. Their whole lamp line is built around a fit-and-forget idea, and a replacement bulb is exactly where that matters. You want to swap it once and move on, not babysit it. The glass and filament quality is why these hold up in the damp, vibration-heavy world of boats and trailers better than a bargain-bin bulb from the gas station.

Because it runs on 12 volts, this bulb drops straight into standard boat and trailer DC wiring without any converter or resistor. The halogen gas inside the envelope lets the filament burn hotter and brighter than a plain incandescent of the same wattage, and it recycles evaporated tungsten back onto the filament, so you get cleaner, whiter light that stays consistent as the bulb ages. For a safety lamp where other drivers need to actually see you, that brightness is the whole point.

Where does a 27/7W dual-filament bulb usually live? Combination lamps. Any fixture that runs a steady low light and then jumps bright on demand uses this dual-filament setup. Think tail-and-brake or park-and-signal style housings. If you've pulled a dead bulb and it has two filaments inside and that familiar wedge base, you're in the right place. Always match the wattage and base to what your fixture specs, and when in doubt, read the number molded into the old bulb or stamped in the housing.

A quick word on halogen handling, because it matters more than people expect. Don't touch the glass with bare fingers. The oil from your skin bakes onto the hot halogen envelope and creates a weak spot that shortens the bulb's life. Handle it by the plastic base, or use a clean cloth or glove. If you do smudge it, wipe it down with a little rubbing alcohol before you power it up. It's a 30-second habit that makes a real difference.

Installation is about as simple as it gets. Kill the power to the circuit. Pull the old bulb straight out of the wedge socket, no twisting needed. Line up the new one and press it home until it's fully seated. Restore power and test both functions, the bright side and the dim side, before you button everything back up. If only one filament lights, double-check the socket contacts and the ground.

One thing to be clear about: this listing is for a single bulb. Not a pair, not a multi-pack. If you're replacing bulbs on both sides of a trailer or a symmetrical lamp setup, order two so you've got a matched set and a known-good spare. Filaments tend to age together, so if one side just burned out, the other isn't far behind. It's cheap insurance.

Honest take? There's nothing fancy here. It's a 12-volt, 27/7W, clear halogen replacement bulb with a W2.5x16q base, and it does that one job well. If that's the spec your fixture needs, buy it with confidence. If your socket or wattage is different, this isn't the one, and we'd rather you get the right part than force a fit.
