Hella Marine 2NM LED Port Nav Light Red | 980520001
Hella Marine 2NM LED Port Nav Light Red | 980520001 — Product description

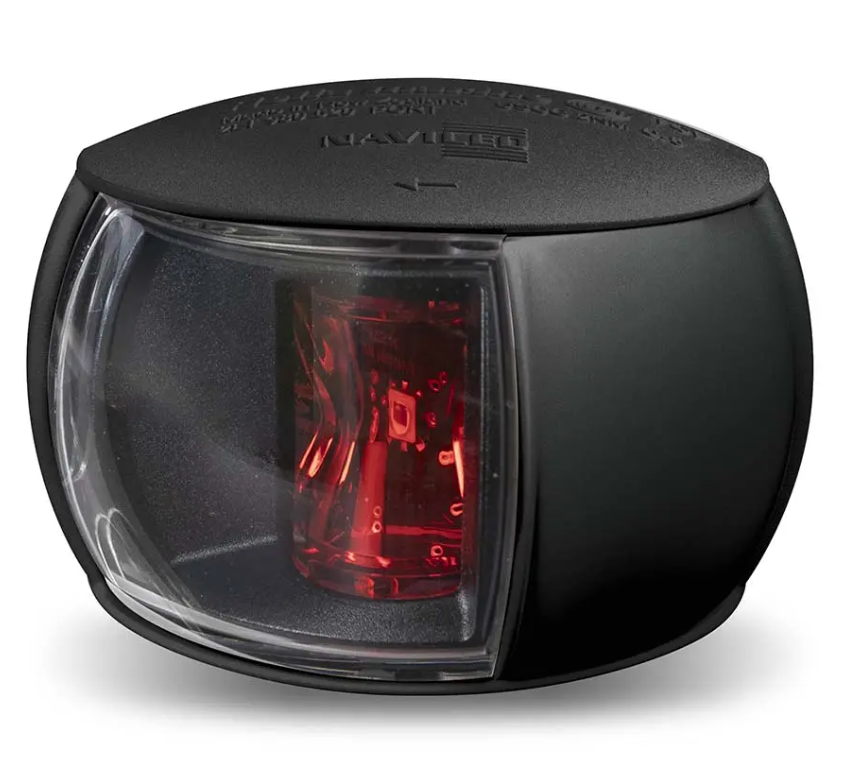

This is Hella Marine's LED port light, the red one that marks your boat's left side after dark. It's rated for 2 nautical miles of visibility, runs on anything from 9 to 36 volts, and it's sealed to IP67 so spray and rain aren't a problem. Certified where it counts, IMO COLREG, USCG, and ABYC.
If you're rigging navigation lights on a smaller boat, the Hella Marine port light is the red one that goes on your left side. It puts out a clean 2 nautical mile signal from a single LED that pulls just 2 watts, so it's easy on your battery whether you're running a 12 or 24 volt system. The wide 9 to 36 volt DC range means it drops into just about any setup without a fuss.
The housing is black polymer with an acrylic red lens, and the whole thing is sealed to IP67. Salt spray, rain, a wave over the bow, none of it gets in. It surface mounts and comes with 4.7 inches of pre-wired tinned marine cable, so you're not soldering leads in the dark.
And it's certified where it counts. IMO COLREG 72, USCG, ABYC C5, plus CE, RINA, and UKCA. That's the paperwork that keeps you legal on the water at night.
Key Features
- 2 nautical mile visibility, meets the range requirement for a port side navigation light
- Single LED at 2 watts, minimal draw on your house battery
- Wide 9 to 36 volt DC input, works on 12 or 24 volt systems without a converter
- IP67 sealed black polymer housing with acrylic lens, handles spray and rain without leaking
- 4.7 inch pre-wired tinned marine cable, ready to surface mount and wire in
Why Buy from NVN Marine
- Authorized HELLA LIGHTS reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Marine 2NM LED Port Navigation Light |
|---|---|
| Brand | HELLA LIGHTS |
| Manufacturer Part Number | 980520001 |
| UPC | 760687107576 |
| Light Source | LED |
| Wattage | 2 Watt |
| Voltage | 9 to 36 Volt DC |
| Visibility | 2 Nautical Miles |
| Lens Color | Red |
| Lens Material | Acrylic |
| Housing Color | Black |
| Housing Material | Polymer |
| Mounting | Surface Mount |
| Cable | 4.7 Inch Pre Wired Tinned Marine Cable |
| Waterproof Rating | IP67 |
| Dimensions (W x H x D) | 2.8 in x 2.09 in x 1.3 in |
| Certifications | IMO COLREG 72, USCG, ABYC C5, Maritime NZ, CE, RINA, UKCA |
Frequently asked questions
Which side of the boat does the red port light go on?
The port side, which is the left side when you're facing forward. Red always marks port, green marks starboard.
What voltage does it need?
Anything from 9 to 36 volts DC, so it works on 12 or 24 volt marine systems as is.
Is it bright enough to be legal?
Yes. It's rated for 2 nautical miles of visibility and carries IMO COLREG 72, USCG, and ABYC C5 certification.
How does it mount?
Surface mount. It comes with 4.7 inches of pre-wired tinned marine cable, so you just fasten it down and connect the leads.
Will it hold up to salt water?
It's sealed to IP67 with a black polymer housing and an acrylic lens. Spray, rain, and the occasional wave over the bow won't get inside.
