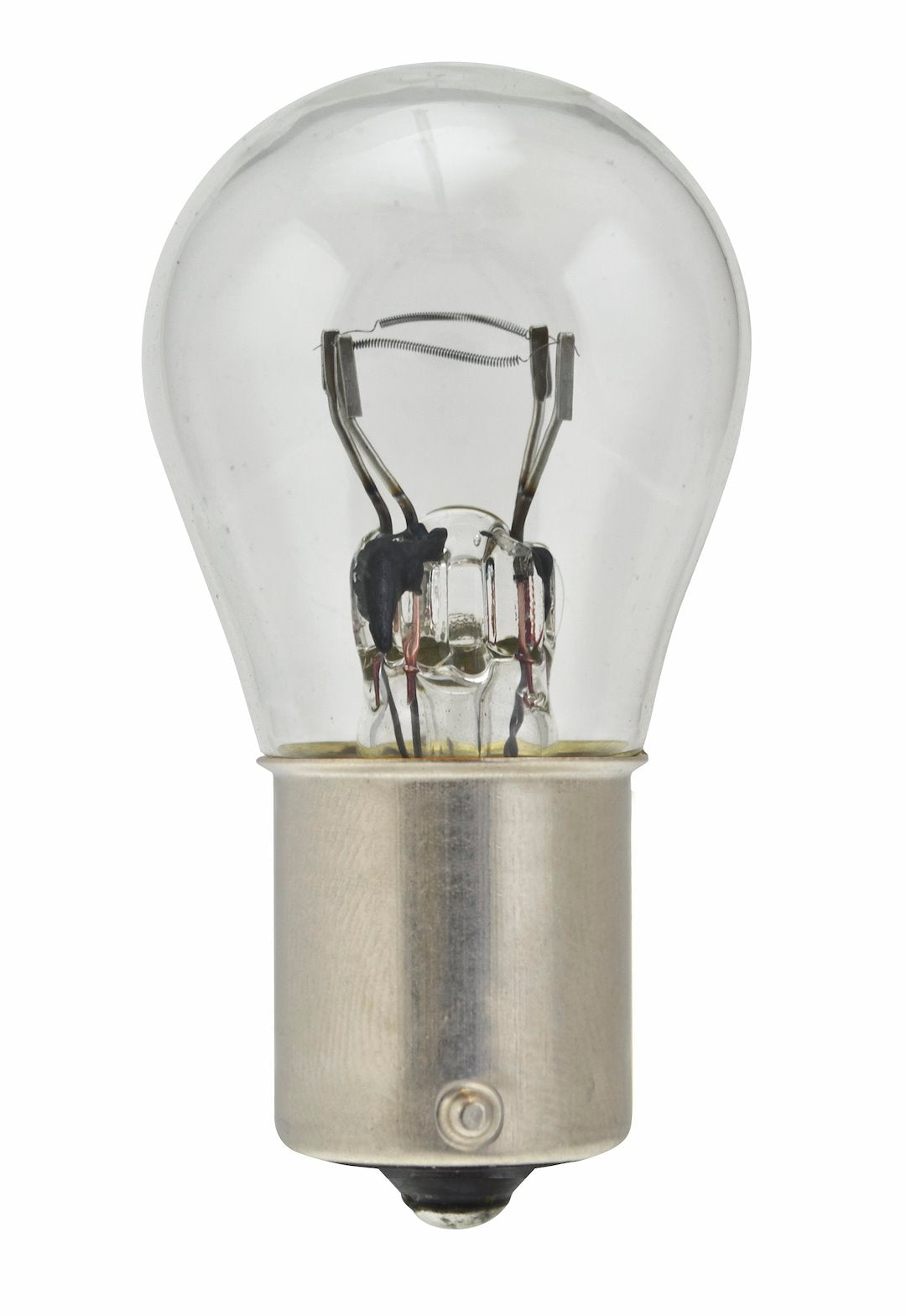

Hella Marine 1683 Halogen Bulb 24V 29W BA15S

The Hella Marine 1683 is a 24-volt, 29-watt halogen replacement bulb with a BA15S bayonet base. It throws a clean white light, and it's sold as a single bulb. If you've got a 24-volt fixture aboard that takes a single-contact bayonet bulb and the old one has finally given up, this is the drop-in replacement you're after.

First thing to check, and it's the important one. This is a 24-volt bulb. Not 12-volt. A lot of smaller recreational boats run 12-volt house systems, and this bulb isn't for those. Where you'll see 24-volt wiring is on larger diesel vessels, commercial boats, and workboats, plus plenty of trucks, buses, and heavy equipment. Run a 24-volt bulb on a 12-volt circuit and it'll glow dim and nearly useless. Put a 12-volt bulb on a 24-volt circuit and you'll pop it in a hurry. So confirm your system voltage before you order. It really does matter.

The base is a BA15S. That's a 15-millimeter bayonet with a single contact, the kind you push in and give a quarter turn to lock. The two pins on the collar sit at the same height, so it only drops into a single-contact socket, never a dual-contact one. The glass envelope is an S8 shape, which works out to roughly an inch across at the widest point. Between the base code and the envelope size, you can match this against whatever fixture you're servicing and know it'll seat and clear the housing.

Where does a bulb like this actually live? Usually inside the small fixtures that don't ask for much but can't be allowed to fail. Interior and cabin lights. Instrument and panel illumination. Courtesy and step lights. Some navigation and utility lamps are built around the bayonet base too. On a 24-volt boat, any of those could be running a BA15S bulb, and when one burns out you want a known-good replacement rather than whatever's rattling around the parts drawer.

It's a halogen, and that brings a couple of things worth knowing. Halogen burns hotter and whiter than an old-school incandescent, so you get brighter, cleaner light for the same draw. The flip side is the handling. Don't touch the glass with bare fingers. The oil from your skin leaves a residue that bakes into a hot spot once the bulb lights up, and that hot spot is where the glass tends to fail early. Hold it by the metal base, or use a clean cloth or the packaging. If you do smudge it, wipe it down with a little rubbing alcohol before you power it up and you're fine.

This is a single-filament bulb, which follows from that single-contact base. One filament, one brightness, one circuit. It isn't a stop-and-tail style bulb that runs two brightness levels off two filaments. And it ships as a single bulb, not a two-pack, so if you like to keep a spare in the ditch bag or the spares box, grab a second one while you're at it.

Hella Marine builds these on a simple idea they call fit and forget. Decades of making lamps for life on the water means tight quality control and materials picked to shrug off a harsh, salty environment. You're buying a bulb you install once and stop thinking about, which is exactly what you want from something tucked inside a nav light or a cabin fixture where getting back at it later is a real pain.

One honest note before you buy. This is a replacement bulb, not a complete lamp or fixture. It's the glass-and-base element that goes inside a housing you already own. If your fixture is designed around a 24-volt BA15S single-contact halogen, the 1683 is the right part. If you're not sure what your old bulb was, pull it, read the base and the markings on the glass, and match the numbers. Measure twice, order once.
