Hella H3SB 55W 12V Halogen Bulb, 1450 Lumens

If one of your fog lights or driving lamps has gone dark, odds are good it takes an H3 bulb, and this is the one to drop in. The Hella H3SB is a single-filament 55 watt halogen running on 12 volt, rated at 1450 lumens of clean output. It's the standard H3 shape the whole industry builds around, so it fits any housing designed to take an H3.

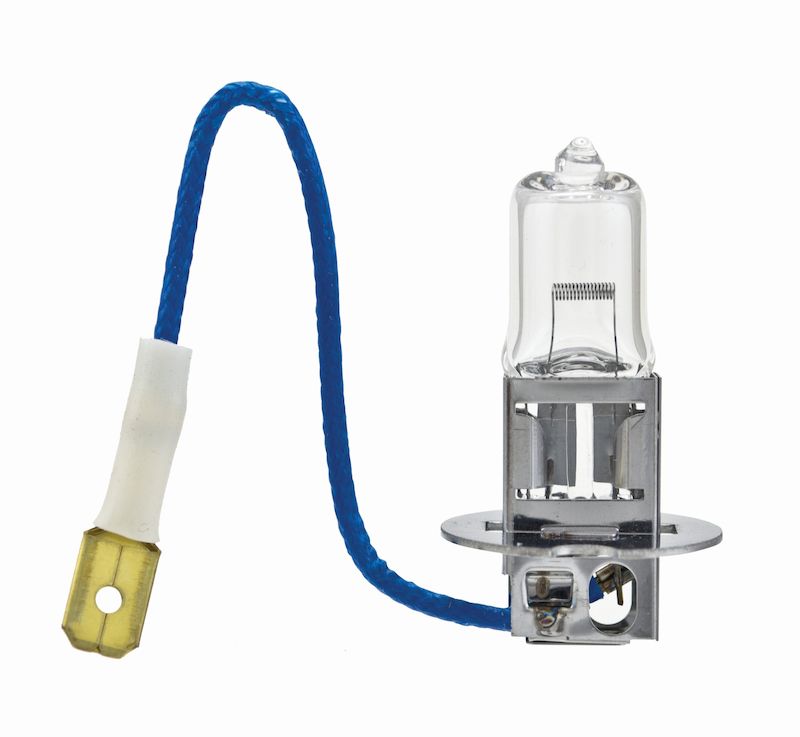

H3 is one of the most common auxiliary-lamp bulbs out there. You'll find it in fog lamps, driving lamps, spot lamps, and plenty of off-road and work lights. What makes H3 easy to recognize is the base. Instead of a flange with pins, it uses a PK22s base with a short flying lead wire coming off the back. You seat the bulb, lock it into the housing, and connect that single lead to your lamp's wire. One filament, one job, bright and simple.

The glass here is a T3.25 quartz envelope. Quartz is what lets a halogen bulb run hot enough to keep the tungsten filament bright across its service life, and that's also why you don't want to handle the glass with bare fingers. Oil from your skin creates a hot spot that can shorten the bulb's life. If you do touch it, wipe it down with a little rubbing alcohol before you power it up. Hold the new bulb by the base and you'll be fine.

Electrically it's straightforward. 55 watts at 12 volts works out to a little under 5 amps of draw, so a single H3 won't tax your wiring or your battery. Run a pair in a set of driving lamps and you're still only pulling around 9 to 10 amps total. That lower-draw character is a big part of why H3 stayed popular for auxiliary lighting. You get an honest, usable 1450 lumens without having to re-wire the harness or add a heavy relay just to feed the lights. And because the filament sits in a sealed quartz capsule, the light stays consistent from the moment you switch it on until the day it finally burns out.

This bulb carries DOT, ECE, and INMETRO approval. DOT is the US Department of Transportation standard, ECE is the European standard referenced across most of the world, and INMETRO is the Brazilian certification. In practice that means the bulb is built and tested to a recognized spec rather than being an unmarked import, which matters if your lamps need to stay compliant for inspection or for road use.

So who's this for? Anybody replacing a burned-out H3 in a fog, driving, or spot lamp. That might be a work lamp on a boat trailer, a spotlight on a center console, a truck light, or a piece of yard equipment. Check your existing bulb or your lamp's manual to confirm it calls for an H3 before you order. If it does, this one drops right in with no modification and no adapters.

One thing worth being clear about. This is the single blister pack, so you're getting one bulb. If you're replacing lamps in pairs, like a left and right fog light, order two so both sides match and age together. Replacing both at once is the move most techs make anyway, because a bulb that's been in service a while reads dimmer and a touch warmer next to a fresh one, and a mismatched pair is easy to spot at night.

Hella builds these to the same fit-and-forget standard the brand is known for. It's not a flashy upgrade. It's the right, correctly certified bulb that makes your existing lamp work the way it was designed to. Keep a spare in the console or the glovebox and you won't get caught running dark on the water or the road.
