Hella H11 Halogen Bulb 55W 12V 1350lm DOT/ECE
Hella H11 Halogen Bulb 55W 12V 1350lm DOT/ECE — Product description

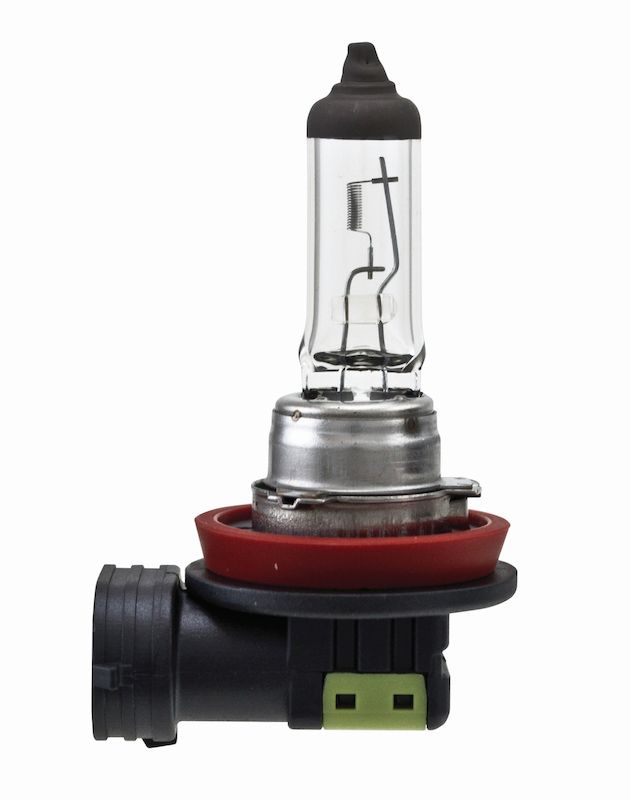

The Hella H11 is a 55-watt, 12-volt halogen replacement bulb putting out 1350 lumens on the standard PGJ19-2 base and T4 envelope. It's a true like-for-like drop-in for any fog lamp, low beam, or driving lamp that specs an H11, DOT and ECE approved and sold as a single in a sealed blister pack.
This is the Hella H11 halogen replacement bulb, rated at 55 watts on a 12 volt system and putting out 1350 lumens of clean, warm halogen light. It ships as a single bulb in a sealed blister pack, so it's the exact drop-in you reach for when one side of your fog lamps or low beams has burned out and you want it sorted before your next run.
The fitment is what matters most with a bulb like this. It uses the PGJ19-2 base and a T4 glass envelope, which is the standard H11 pattern. If your housing calls for an H11, this seats and locks the same way the factory bulb did. No adapters, no trimming. Match the H11 designation on your old bulb or in your owner's manual and you're good to go.
H11 is a single-filament bulb, so you'll find it doing low-beam, fog, and dedicated driving-lamp duty rather than a combined high and low job. That's worth knowing before you order. If your reflector housing is stamped H11, this is the right shape and the right base. If it calls for a different number, this one won't drop in, because the base keying is specific to H11, and forcing the wrong bulb sits the filament at the wrong focal point and ruins your beam pattern.
Let's talk power. At 55 watts on 12 volts, each bulb pulls right around 4.6 amps. That's a normal halogen draw and it's exactly what the H11 circuit and relay in your boat, truck, or trailer tow rig were built around. Because you're replacing like with like, you don't need to touch the wiring, add a resistor, or worry about a hyper-flash or an error code the way you might with an LED swap. Flip the switch and it lights.
These carry DOT and ECE approval, which means they're built to the street-legal output and beam standards on both sides of the Atlantic. For anyone running lights that get inspected, that stamp matters. It tells you the filament position and output were held to spec, not just close enough to pass a glance.
One handling note we tell everyone. Don't touch the glass with bare fingers. The oil from your skin bakes onto a hot halogen envelope and creates a hot spot that shortens bulb life. Handle it by the metal base or through the blister packaging, and if you do smudge it, wipe it down with a little rubbing alcohol before you power it up.
Since this is sold as a single, remember that headlamps and fog lamps work in pairs. If one side has burned out, the other side is usually not far behind, so a lot of folks buy two and change both at once. That keeps your beam pattern even side to side and saves you pulling the housing apart twice in a month.
We sell these to boaters running trailer tow lights and auxiliary driving lamps, to truck owners topping off a fog setup, and to anyone who just wants a quality replacement without overthinking it. It's not an LED conversion and it's not trying to be. It's a proper halogen bulb that lights the instant you flip the switch, warms the way halogen always has, and won't throw a code on a modern rig.
Bottom line, it's a straightforward, correctly-specced H11 replacement from a name that's been making lighting for a long time. Clean output, the right base, street-legal approval, and a sealed blister pack so the bulb you install is the bulb that left the factory. Grab a pair, keep a spare one in the glovebox or the console, and you're covered for the next time a bulb quits on you.
Key Features
- 55 watt, 12 volt halogen filament pulling about 4.6 amps, the standard H11 draw your factory circuit is built for
- 1350 lumens of warm halogen light with the beam focus held to DOT and ECE spec
- PGJ19-2 base and T4 glass envelope, the standard H11 pattern that drops in without adapters
- DOT and ECE approved, so it's street legal in North America and Europe
- Single-filament design for low beam, fog, and dedicated driving lamp use
- Sealed single blister pack, so the bulb you install is the bulb that left the factory
- True like-for-like halogen replacement, no decoder, load resistor, or wiring changes needed
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella H11 Halogen Bulb, 55 Watt, 12 Volt, 1350 Lumens, Single, Blister Pack, DOT/ECE Approved |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | H11SB |
| UPC | 760687171850 |
| Bulb Type | H11 Halogen |
| Wattage | 55 Watt |
| Voltage | 12 Volt |
| Base | PGJ19-2 |
| Envelope | T4 |
| Luminous Flux | 1350 Lumens |
| Quantity | Single |
| Packaging | Blister Pack |
| Compliance | DOT / ECE Approved |
Frequently asked questions
Is the H11 a high beam or low beam bulb?
H11 is a single-filament bulb, so it's used for low beams, fog lamps, and dedicated driving lamps rather than a combined high and low beam. Check your housing or owner's manual for the H11 marking before ordering.
How many bulbs come in the pack?
One. This is sold as a single bulb in a sealed blister pack. Since headlamps and fog lamps run in pairs, most people order two so both sides match.
What base and envelope does this bulb use?
It uses the PGJ19-2 base with a T4 glass envelope, the standard H11 pattern. It drops into any housing that specs an H11 without adapters or trimming.
How much current does it draw?
At 55 watts on 12 volts, each bulb pulls about 4.6 amps. That's the normal H11 halogen draw your factory circuit and relay were designed to handle.
Can I replace my H11 halogen with an LED?
You can in some housings, but it's a different animal. An LED can need a decoder or load resistor to avoid errors, and the beam focus changes. This halogen bulb is a true like-for-like replacement with no wiring changes.
Is this bulb street legal?
Yes. It carries DOT and ECE approval, meaning it meets the street-legal output and beam standards in both North America and Europe.
What bulb do I use if my housing isn't an H11?
You match the number your housing calls for. The H11 base is keyed specifically, so an H11 only fits an H11 socket. Check the marking on your old bulb or your owner's manual before ordering.
How bright is it?
It's rated at 1350 lumens, the standard output for a 55-watt H11 halogen. Warm halogen light with the beam focus held to DOT and ECE spec.
Why shouldn't I touch the glass?
Skin oil bakes onto the hot envelope and creates a hot spot that shortens bulb life. Handle it by the metal base, and if you smudge the glass, wipe it with rubbing alcohol before powering it up.
