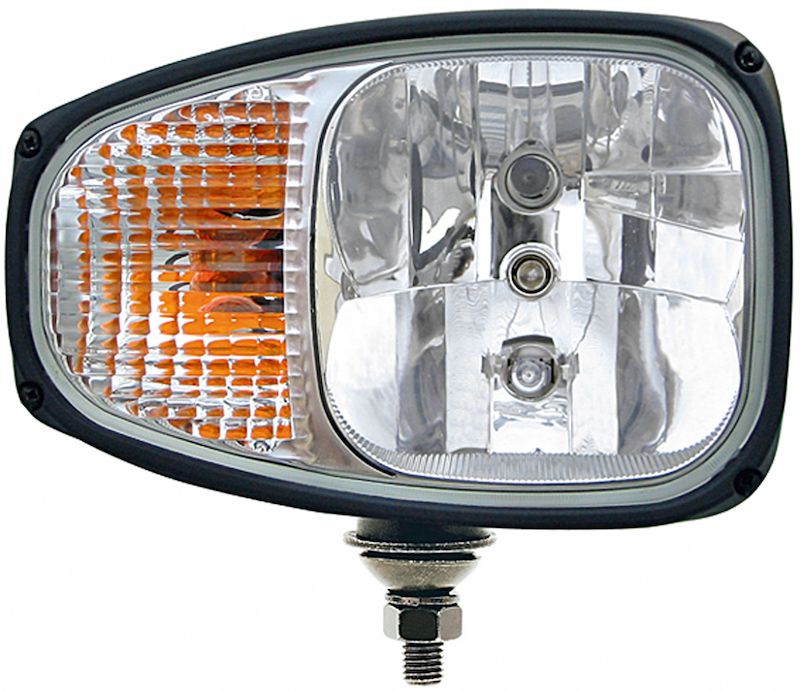

Hella C220 Halogen Combination Headlamp, Left Side

The Hella C220 is a heavy-duty halogen combination headlamp built to keep working when the weather doesn't. It runs common H7 and H3 bulbs behind a clear glass lens, with an integrated amber section for a turn or marker signal. This is the left-side unit. If you're building a matched pair, you'll want the right-side C220 to go with it.

What sets this lamp apart is how it's sealed. It carries an IP6K9K rating, which is about as tough as ingress protection gets. Dust-tight, and rated to shrug off close-range high-pressure, high-temperature washdown. That matters on a working boat. Salt spray, deck hose, pressure washer at the end of a long day, none of it gets inside. We've seen plenty of cheaper lamps fog up or corrode from the inside out after a single season near salt water. The C220 is built for the opposite of that.

The lens is real glass, not plastic. That's a bigger deal than it sounds. Plastic lenses haze and yellow under UV, and on a boat that means dimmer output every year. Glass stays clear. It handles the heat coming off a halogen bulb better too, so you're not babying it. The housing is black plastic, the whole unit is ECE approved, and it measures 8.8 inches wide, 5.9 inches tall, and 3.9 inches deep. That's a compact footprint for the amount of light a reflector-beam halogen throws.

Mounting is a universal stud setup. One stud through the panel, nut on the back, wire it in, and you're done. That makes it friendly for hardtops, A-frames, radar arches, bull bars, and equipment brackets where you don't have room for a big bolt pattern. Because it's a 12-volt lamp running standard H7 and H3 halogens, the wiring is straightforward and the bulbs are cheap and available anywhere. No proprietary modules, no oddball connectors to track down two years from now.

On the wiring side, keep it simple and do it right. A halogen driving beam pulls real current, so run it through a relay with the switch triggering the coil rather than feeding the whole load through a dash switch. Fuse the feed, use marine-grade tinned wire, and give it a clean ground back to the battery negative or a solid bonding point. Do that and the lamp lights instantly, full brightness, every time. Skip it and you get dim output and nuisance failures down the road.

So who's this for? Commercial and workboat operators who need a sealed, serviceable light they can hose down without a second thought. Boaters running hardtops and pilothouses who want a proper driving beam up front. And anyone rigging equipment, trailers, or trucks who wants an ECE-approved combination lamp with an amber signal already built in. The reflector beam throws a focused forward pattern, so think of it as a driving or spot function rather than a wide flood for lighting up the whole deck. Pick the right tool for the job and this one earns its spot.

A couple of honest notes before you buy. This is the left-side lamp, so confirm which side you actually need, or grab both if you're after a pair. It's a 12-volt unit, so if you're on a 24-volt system you'll need a converter or the correct bulbs for your setup. And because it uses H7 and H3 halogen bulbs, plan on carrying a spare or two. Halogens are simple and bright, but they don't last forever, and swapping one out on the water is a two-minute job if you've got the bulb aboard.

Bottom line, the Hella C220 is the kind of light you install once and stop thinking about. Glass lens, sealed to IP6K9K, ECE approved, and running bulbs you can buy at any parts counter. It's a straightforward, durable choice for a boat, a rig, or any piece of equipment that lives outside and takes a beating.
