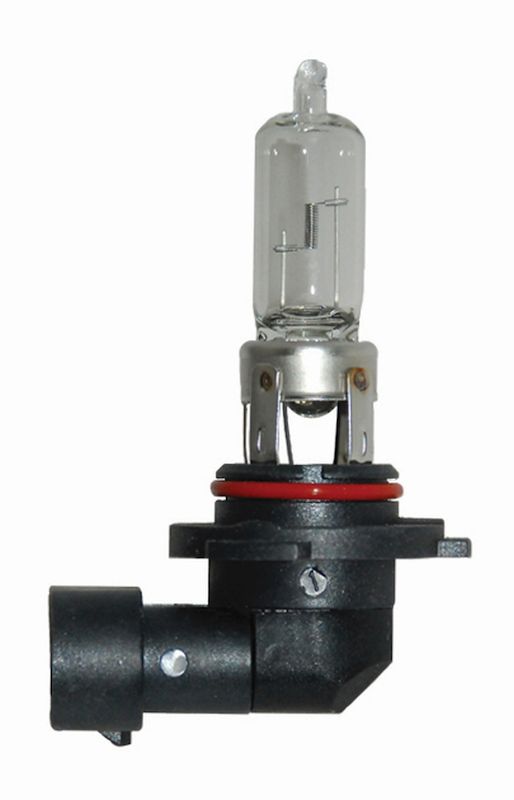

Hella 9005SB 9005/HB3 65W Halogen Headlight Bulb

The Hella 9005SB is a straight-up replacement 9005/HB3 halogen bulb, rated at 65 watts and 12 volts and putting out 1860 lumens of clean, white high-beam light. This is the standard-wattage version, DOT, ECE, and INMETRO approved, so it's road legal wherever you drive. If your high beams have gone dim or one side's burned out, this is the honest fix. Same wattage the factory spec'd, same beam pattern, no drama.

9005 and HB3 are two names for the exact same bulb. It's a single-filament design on a P20D base with a T4 quartz-glass envelope. On most vehicles it runs the high beams, though plenty of trucks and SUVs use the 9005/HB3 as a daytime running light or an auxiliary driving light too. Check your owner's manual for the exact position. Either way, it drops right into the factory socket. No adapters, no wiring changes, no load resistors. Pull the old one, click the new one in, and you're done.

Here's the one thing every tech will tell you. Don't touch the glass with bare fingers. The oils from your skin bake onto the quartz when the bulb heats up and create a hot spot that shortens its life. Handle it by the base, or wear a clean glove. If you do smudge it, wipe it down with rubbing alcohol before you power it up. Takes two minutes, and it's worth doing right.

At 65 watts and 12 volts, this bulb pulls about 5.4 amps per side. That's the standard load your factory harness and relays were built around, so there's nothing extra to sort out. No upgraded wiring, no heat worries, no flicker. If you want your headlights back to spec without chasing inflated aftermarket lumen claims, a factory-wattage halogen like this is the sensible call.

Hella's been making automotive lighting for well over a century, and their halogen bulbs have a reputation for consistent output and a long, predictable service life. The quartz-glass capsule and precision-set filament give you a crisp white beam that lights the road the way the engineers intended. It's a fit-and-forget part. Install it and forget it's there.

What does 1860 lumens get you? It's the standard output for a 9005/HB3, the same brightness the bulb left the factory with when your vehicle was new. Over time, halogen filaments dim as they burn, so even a bulb that still works can be throwing noticeably less light than it did on day one. Swapping in a fresh pair often makes a bigger difference than people expect, especially on dark back roads where your high beams actually earn their keep.

The swap itself is about a five-minute job on most vehicles. Pop the hood, find the back of the headlight housing, and twist out the old bulb holder. Unclip the connector, pull the dead bulb, and seat the new one by its base. Clip the connector back on, drop it into the housing, and give the high beams a quick test before you close up. No special tools, no trip to the shop.

A quick word on those approvals. DOT covers the U.S. standard, ECE is the European one, and INMETRO is Brazil's. Seeing all three on the box tells you the bulb meets real regulatory output and beam standards, not just a marketing number printed on a sleeve. For a part that's responsible for how far you can see at 60 miles an hour, that matters.

This one's sold as a single bulb in a sealed blister pack. Here's our tip, and we give it to everyone. Headlight bulbs age together, so when one side goes, the other usually isn't far behind. Replace them in pairs. Running a fresh bulb against a tired one leaves you with uneven brightness and a slightly different color from side to side, and you'll just be back under the hood in a few weeks. Grab two and do both at once. You'll thank yourself.
