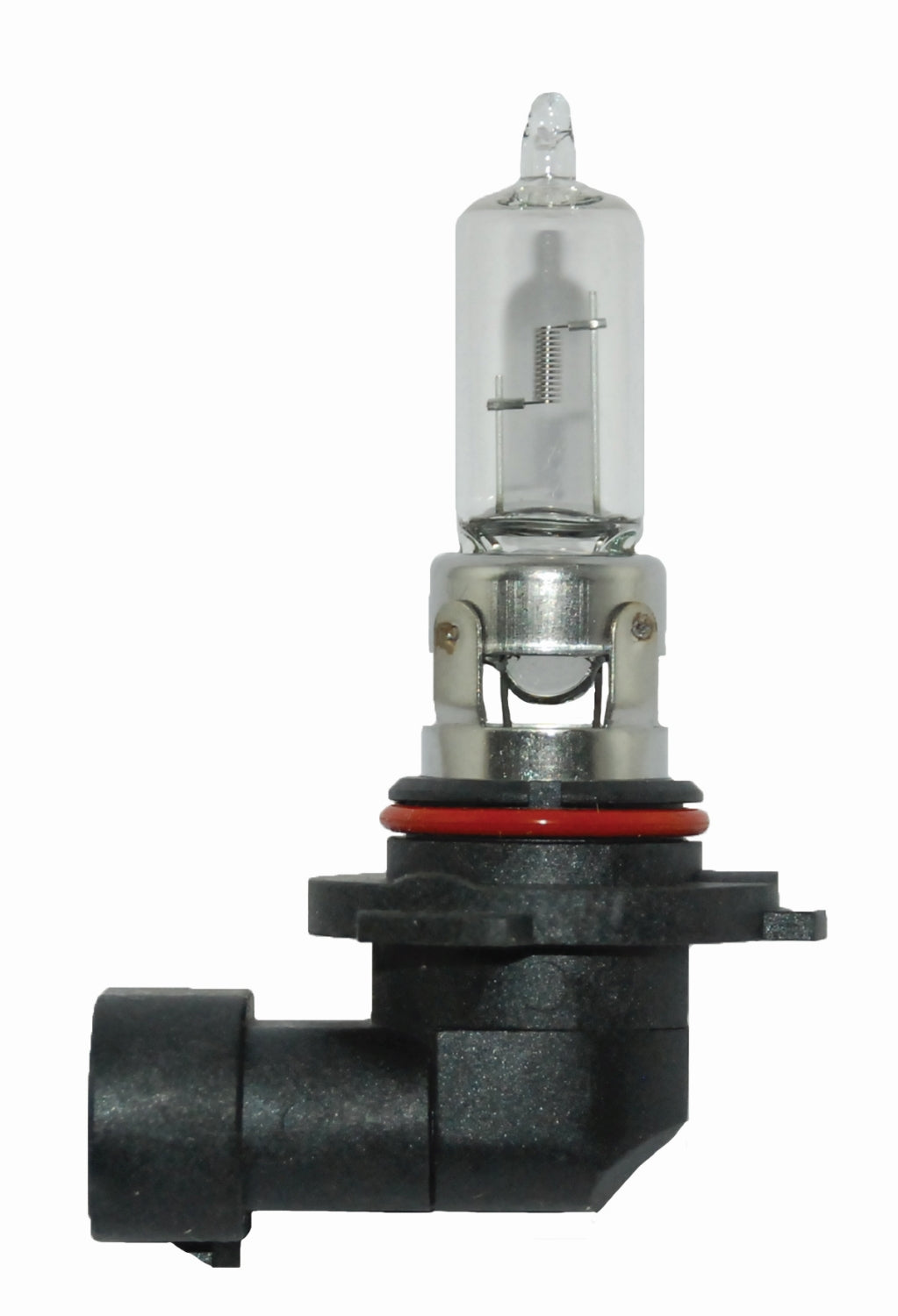

Hella 9005 100W Halogen Headlight Bulb, HB3 12V

The Hella 9005 100W is a high-output halogen bulb built for the 9005 (HB3) high-beam socket. It runs on a standard 12-volt system and throws a clean, slightly warm 3200K beam through a clear glass envelope. This is a single bulb, so if you want a matched pair up front, grab two. Headlight bulbs age at about the same rate, and replacing both at once keeps your beam pattern even from side to side.

Here's the honest part, and it matters. A standard 9005 draws about 60 watts. This one pulls 100. That extra output means a brighter, longer reach down the trail, but it also means more heat and more current. At 12 volts, 100 watts works out to roughly 8.3 amps per bulb, so your factory headlight harness and relays may not be sized for the load. We'd wire a pair of these through a dedicated relay and heavier gauge wire. Don't just plug them into a stock circuit and forget about it, because a thin factory wire can heat up and the voltage drop will dim your light right when you need it.

Because of that wattage, this bulb is not street legal. It's built for off-road, show, competition, and auxiliary use, the same way most high-output HB3 bulbs are sold. If you need a DOT-compliant replacement for daily highway driving, this isn't the one. But for a trail rig, a light-bar backup, a work truck that lives off pavement, or an auxiliary driving lamp, the extra punch is exactly what you're after.

The 9005 designation, also called HB3, is a single-filament high-beam bulb. It's a drop-in shape match for any housing that calls for a 9005, so the install is plug and play. Twist the old bulb out, line up the base tabs, seat the new one, and reconnect the plug. No cutting and no adapters for the bulb itself. The whole swap takes a couple of minutes per side once you can reach the back of the housing.

One rule with any halogen bulb: don't touch the glass with bare fingers. The oil from your skin creates a hot spot that shortens bulb life and can crack the envelope. Handle it by the metal base, and if you do smudge the glass, wipe it down with rubbing alcohol before you power it up. Hella runs these through tight quality and light-metering checks, so you're starting with a consistent bulb. Treat it right on install and it'll give you honest service.

Color-wise, 3200K sits in the warm-white range. It's close to a factory halogen look, not the blue-white of an LED. That warmer tone actually cuts through dust, fog, and light rain better than a cooler color, which is part of why it's a favorite for off-road and work lighting. The clear beam color means there's no tint on the glass robbing you of output.

A quick word on bulb life. High-wattage halogens run hotter than standard bulbs, so they trade a little longevity for that extra brightness. That's a fair deal for a trail light or an auxiliary lamp you don't run constantly. Keep your connections clean and tight, make sure the housing has room to shed heat, and you'll get solid service out of it.

What you get is one bulb, packaged single. There's no harness, relay, or mounting hardware in the box, so if your build needs a relay kit or upgraded wiring to handle the current, plan to source that separately. For most folks running a pair of these, a simple relay harness rated for the combined draw is cheap insurance against melted connectors. Bottom line: if you've got a 9005/HB3 housing and you want more high-beam reach for off-road or auxiliary use, this Hella 100W bulb delivers. Just wire it for the load, keep your fingers off the glass, and remember it's not for the street.
