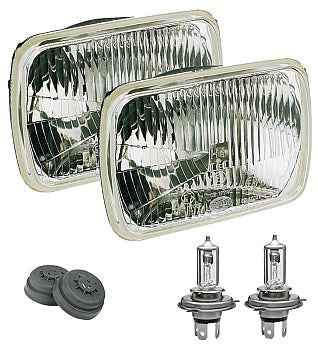

Hella 7x6 Rectangular H4 Headlamp Conversion, Standard Lens, Pair

If you're driving anything built in the 1980s or early 90s with those flat 7 by 6 inch rectangular sealed beams, you already know the problem. The factory sealed beam puts out a dim, yellowish pool of light that runs out of road right about the time you need it most. This Hella conversion fixes that. It's a direct replacement for the standard 7 by 6 rectangular sealed beam, but instead of a throwaway one-piece unit, it runs a replaceable H4 bulb behind Hella's improved optics. Brighter, cleaner light, and when the bulb finally dies you swap a cheap bulb instead of the whole lamp.

You get two lamps in the box, so this does both sides of a standard two-headlight truck or Jeep in one go. Think classic Chevy and GMC pickups, square-body Blazers, Jeep Cherokee XJ and Wrangler YJ, older Ford trucks, and a long list of other rigs that left the factory with the 7 by 6 rectangular pattern. If your vehicle takes the standard rectangular sealed beam, this drops into the same bucket and uses the same mounting ring.

The story here is the optics. Hella designed the lens and reflector to throw more usable light down the road without dumping glare into oncoming traffic. That's a real balance, and it's the part cheap conversions get wrong. A lot of budget H4 housings just make everything brighter, including the glare that blinds the guy coming the other way and bounces back at you in fog. Hella's approach keeps a defined cutoff so you light up the road, not the sky. On a dark county two-lane, that difference is the whole point.

The H4 bulb itself is a dual-filament design, so a single lamp handles both your low beam and your high beam. Your factory headlight switch and dimmer wire right in. Most installs are genuinely a drop-in. Pull the old sealed beam, unplug the three-prong connector, plug it into the H4 socket, and set the lamp back in the ring. One thing to check before you button it up is the connector. The classic three-prong headlight plug can be wired for different filament arrangements, so confirm your low and high beams actually switch correctly before you snap everything back together. If they're backwards, it's usually just the plug orientation.

A couple of honest notes. This lamp comes without a turn signal or park lamp built into it, so it's a pure headlight. On almost every truck and Jeep that used the 7 by 6 rectangular setup, the turn signals live in a separate housing anyway, so that's how it should be. But if you were hoping for an all-in-one lamp with the blinker built in, this isn't that. Second, if you run rough trails or a lot of washboard, treat the H4 bulb like any filament bulb and expect vibration to shorten its life over time. It's an easy, cheap replacement when that day comes, and you can step up to a heavy-duty H4 if you beat on the truck.

For the install itself, a little dielectric grease on the H4 socket contacts goes a long way, especially if the truck sees rain, snow, or road salt. It keeps corrosion off the terminals and keeps the connection solid for years. Aim the lamps once they're in. Park about 25 feet from a garage door or wall on level ground and set the low-beam cutoff so it sits just below straight ahead. Two minutes with a screwdriver and you're dialed.

Bottom line, this is one of the highest-value upgrades you can make to an older truck or Jeep. It's cheap insurance for night driving, the light quality is a serious step up from a tired sealed beam, and the switch to a replaceable H4 bulb means you're never buying a whole headlamp again. Hella has been building headlamps for a very long time, and the fit-and-forget reputation is earned. Bolt them in, aim them, and go.
