Hella 700FF H3 Driving Lamp, 55W 7.3in Round
Hella 700FF H3 Driving Lamp, 55W 7.3in Round — Product description

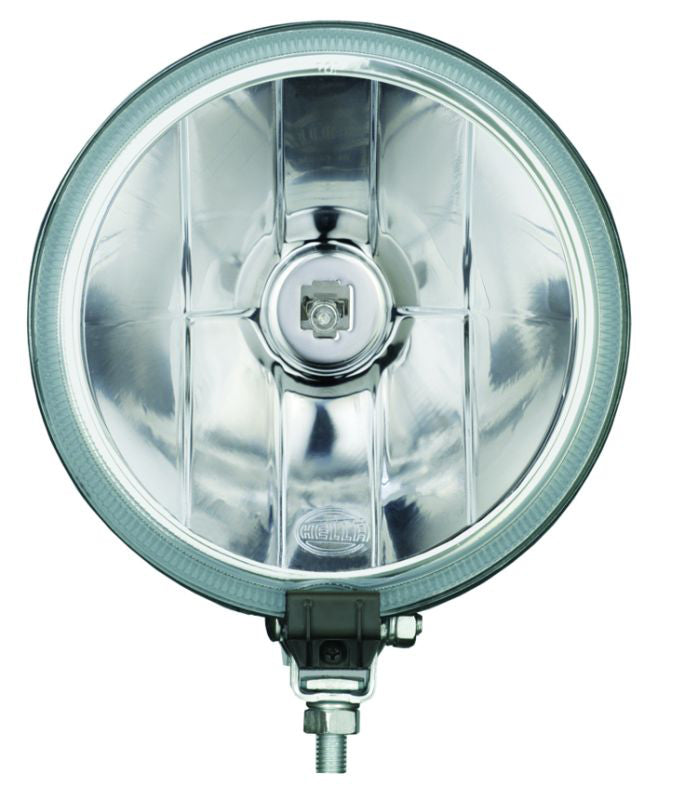

The Hella 700FF is a 7.3-inch round auxiliary driving lamp built around a replaceable 55-watt H3 halogen bulb. It throws a focused driving beam that reaches well down the road or water ahead, sits behind a clear glass lens in a weather-ready black housing, and mounts almost anywhere thanks to a pivoting universal stud bracket. Sold as a single light.
The Hella 700FF is a straightforward auxiliary driving lamp, and that's exactly why people keep bolting them on. You get a 7.3-inch round lamp with an H3 halogen bulb behind a clear glass lens, wrapped in a black housing that shrugs off the weather. It throws a driving beam, which means a focused pool of light aimed well out in front of you rather than a wide, close-in wash. If you've ever wished you could see a little farther at speed, this is the kind of lamp that fixes that.
Let's be clear about what a driving beam does, because it matters. A driving pattern is tight and reaches long. It's built to stack on top of your existing high beams and extend how far you can see down the road, the trail, or the water. It is not a flood, and it is not a fog lamp. So if you want to light up the whole area right around the boat or truck, that's a different tool. But if you want reach, the 700FF's H3 setup gives you a clean, honest beam that lands where you point it.
The heart of it is a single H3 halogen bulb rated at 55 watts. H3 is one of the most common bulbs out there, which is the whole point. When it eventually burns out, and every halogen bulb does, you're not hunting for an oddball part or throwing away the lamp. You pull the back cover, swap the bulb, and you're back in business. That serviceability is a big reason these lamps have stuck around for so long. Keep a spare H3 in the glovebox or the console and you'll never be stuck in the dark.
Build quality is where Hella earns its name. The lens is real glass, not plastic, so it takes the heat off the bulb without hazing over the way cheap lenses do, and it keeps the beam pattern sharp. The housing is black, which keeps stray glare down and doesn't show every speck of grime. It's a compact 7.3-inch round can, so it tucks onto a bull bar, a light bar, a roof rack, an arch, or a custom bracket without hogging real estate. Nothing fancy. Just a well-made lamp that does its job.
Mounting is genuinely flexible. The lamp uses a universal stud mount with a pivoting bracket, so you can set it on just about any flat surface or bar and then tilt it to the exact angle you need. Get it roughly level, run it up against a wall or a driveway at night, and fine-tune the aim so the hot spot sits where you actually want it. Then snug it down and it stays put. One tip from experience: a dab of thread locker on the pivot hardware keeps things from working loose if you run rough roads or open water for hours at a stretch.
This one is sold as a single light, and that's on purpose. Some folks only need one to fill a gap. Others want a matched pair mounted symmetrically, and buying singles lets you build exactly the setup you want. Wiring is simple: run power through a relay and a switch, fuse it properly, and use a wire gauge that suits the length of the run so you don't lose voltage on a long pull. If you're adding two, wire them so they switch together. Aim them slightly outboard of each other and you get a wider effective reach without giving up the long throw a driving beam is known for.
In the box you get the lamp, one H3 halogen bulb already sized for it, and mounting instructions. A wiring harness and switch aren't part of this package, so plan to source those separately if you don't already have them on hand. That's normal for an auxiliary lamp like this and keeps you from paying for a harness you might not use. Bottom line: the Hella 700FF is a simple, serviceable, well-built driving lamp with a proven H3 bulb and a mount that goes just about anywhere. If you need more reach after dark, it's an easy call.
Key Features
- H3 halogen bulb rated at 55 watts throws a bright, focused driving beam far down the road or water ahead
- 7.3-inch round housing gives a clean, classic profile that fits most bars, arches, and universal brackets
- Driving beam pattern puts light where you're pointed, ideal for supplementing your main beams at speed
- Clear glass lens handles bulb heat and grit better than plastic and keeps the beam crisp
- Black housing cuts stray glare and hides road and salt grime between cleanings
- Universal stud mount with a pivoting bracket lets you aim the lamp and lock it at the angle you want
- Replaceable H3 bulb means you swap a common, inexpensive bulb instead of the whole lamp when it burns out
- Ships as a single light with one H3 bulb and mounting instructions, so you can run one or build up to a matched pair
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella 700FF H3 Halogen Driving Lamp, 7.3 Inch Round, 55 Watt |
|---|---|
| Brand | Hella Marine |
| Manufacturer Part Number | 010032001 |
| UPC | 760687107842 |
| Series | 700FF |
| Lamp Type | Halogen Driving Lamp |
| Bulb Type | H3 Halogen |
| Wattage | 55 Watt |
| Beam Pattern | Driving Beam |
| Lamp Diameter | 7.3 Inch Round |
| Lens Color | Clear |
| Lens Material | Glass |
| Housing Color | Black |
| Mount Type | Universal Stud Mount with Pivoting Bracket |
| Configuration | Single Light |
| In The Box | Lamp, 1 H3 Halogen Bulb, Mounting Instructions |
Frequently asked questions
Is this a single lamp or a pair?
It's a single light. Each one ships with one H3 halogen bulb and mounting instructions. If you want a matched pair, order two and mount them symmetrically.
What kind of beam does the 700FF produce?
A driving beam. That's a focused, long-reaching pattern meant to extend how far you can see down the road, trail, or water. It's not a wide flood and it's not a fog lamp.
What bulb does it use?
A standard H3 halogen bulb rated at 55 watts. H3 is a common, inexpensive bulb, so replacements are easy to find.
Can I replace the bulb when it burns out?
Yes. You pull the back cover and swap the H3 bulb rather than replacing the whole lamp. Keeping a spare on hand is a good idea.
How does it mount?
With a universal stud mount and a pivoting bracket. You can fit it to most flat surfaces or bars and then tilt it to aim the beam, then tighten it down so it holds its angle.
How big is the lamp?
The housing is a 7.3-inch round body, so it's compact enough to fit bull bars, light bars, roof racks, arches, and custom brackets.
What is the lens made of?
Clear glass. Real glass handles the bulb's heat well and resists the hazing you get with cheaper plastic lenses, which keeps the beam pattern sharp.
What color is the housing?
Black. It keeps stray glare down and doesn't show every speck of road or salt grime between cleanings.
Does a wiring harness come with it?
No. The package includes the lamp, one H3 halogen bulb, and mounting instructions. A wiring harness and switch are not included, so plan to source those separately.
Can I run two of these together?
Yes. Because they're sold individually, you can wire two so they switch together. Aiming them slightly outboard of each other widens your effective reach while keeping the long throw a driving beam is known for.
