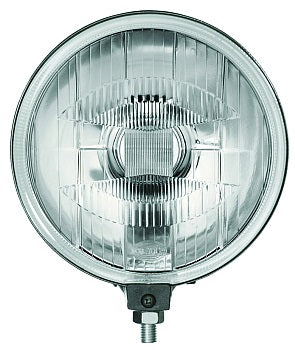

Hella 500 Series H3 Driving Lamp Kit, 6.4in Round

The Hella 500 Series driving lamp kit is a straightforward way to add real reach to your forward lighting. You get two 6.4-inch round lamps, each running an H3 55-watt halogen bulb behind a clear lens, set in a black housing that looks at home on a hardtop, a radar arch, a pilothouse roof, or a bull bar. This is the classic round auxiliary driving light, and it's been earning its keep on boats and trucks for years.

Driving beam is the key phrase here. These aren't floods that wash light everywhere. The reflector and clear lens focus the output straight down your line of travel, so you get distance instead of spread. That's exactly what you want running a channel after dark or picking up markers and crab pots well ahead of the bow. If you need close-in flood for docking, that's a different tool. These are built to see far.

What makes this a kit and not just a pair of lamps is everything else in the box. Hella includes a full wiring harness, an on/off switch, and a relay, plus universal mounting hardware and two stone shields. So you're not hunting down a relay or crimping together a switch panel. Wire the relay to a switched 12-volt source, run the harness to the lamps, mount the switch where your hand falls naturally at the helm, and you're lit. The two stone shields snap over the lenses to protect the glass from spray, gravel, and debris when the lights aren't in use.

A quick word on the electrical side, because this is where installs go sideways. Two 55-watt bulbs pull right around nine amps total at 12 volts. That's not much, but the run from your battery matters. On a short hop from a nearby fuse block, the supplied harness is fine. On a longer run up to an arch or across a cabin, step up the wire gauge to hold your voltage, and give the relay a clean, solid ground. A good ground is the single most common thing people skip, and it's the thing that keeps the whole circuit happy.

Mounting is stud-style, which gives you a clean single-point attachment through a flat or gently curved surface. On steel or aluminum, that's simple. On fiberglass, back the stud with a proper backing plate so the mount doesn't flex and stress the housing over time. If you're going through a deck or a cored surface, over-drill, fill, and re-drill, or at minimum bed the fastener in a good marine sealant so you don't invite water into the core. Standard marine install practice, nothing exotic.

Because this lives outside in salt air, a little prep goes a long way. Hit the H3 sockets and the harness connections with dielectric grease at install. It keeps corrosion out of the contacts and makes the eventual bulb change painless. H3 bulbs are a tool-free twist-and-lock, so swapping one down the road takes a minute once the connection is clean.

The 500 Series is one of Hella's long-running round lamp designs, and the appeal is simplicity. There's no ballast, no driver board, no firmware. It's a bulb, a reflector, a lens, and a relay. When something eventually wears, you fix the one part that failed instead of tossing the whole unit. That serviceability is a big part of why these still show up on working boats and trucks that need lighting they can maintain themselves.

Who's this for? Anyone who runs before sunrise or after sunset and wants to see further than the factory lights allow. Center consoles headed out early, sportfishers running home in the dark, trailer boats and overlanders that pull double duty on and off the water. It's a proven, no-drama lighting kit at a fair price, with the wiring and hardware you actually need already in the box.

Aim them once and aim them right. Park facing a wall or a garage door about 25 feet out, switch them on, and set the hot spot slightly below level so you're lighting the water and the path ahead, not the sky. Snug the stud nuts, pop the stone shields on for the ride home, and that's the job. Two lamps, one switch, real distance out front.
