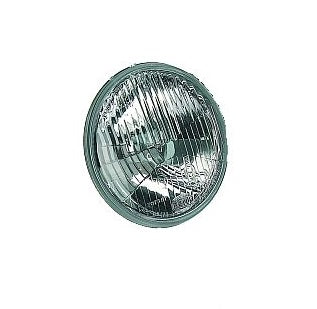

Hella 5-3/4 In H1 Round Sealed Beam Headlight

If you're running an older vehicle or piece of equipment with the classic 5-3/4 inch round headlight opening, this Hella lamp is the honest upgrade path. It replaces the old-style fixed sealed beam, the kind where the whole lamp is one throwaway unit, with a proper housing that takes a replaceable H1 halogen bulb. Burn out a bulb down the road and you swap a cheap bulb instead of the entire headlight. That's the whole point of a conversion like this.

The size is the standard 5-3/4 inch round, which is 135 mm across. That's the opening you'll find on a lot of classic cars, older trucks, motorcycles, tractors, and industrial equipment. If your current sealed beam measures the same, this drops right into the same bucket and bracket. It runs on 12 volts, so it's a match for just about any standard negative-ground electrical system.

This one uses an H1 bulb. H1 is a single-filament halogen, which means this lamp handles one beam function on its own. It's built without a turn signal, so if your setup needs a marker or turn indicator up front, you'll wire that in as a separate light. Plan for that before you start. On a lot of older setups the turn signal already lives in its own housing, so it's a non-issue, but it's worth checking your wiring first.

Hella has been making vehicle lighting for a long time, and the little details show. The lens is a standard clear pattern that throws a clean, usable beam. The bulb connection is protected by dust boots, the rubber covers that seal the back of the lamp against dirt, spray, and moisture working their way into the connector. That's the difference between a lamp that keeps working through a few seasons of weather and one that corrodes at the terminal and starts flickering.

It carries ECE approval, the European road-legal standard for headlamps, so the beam pattern is cut to a real specification rather than just being a bright bulb behind glass. If you care about not blinding oncoming traffic and actually lighting the road ahead, that matters.

A couple of practical notes from installing these. This is sold as a single lamp, so if you're doing both sides, order two. Aim the beam after you mount it. Park a few feet off a wall and set the hot spot where it belongs before you call it done. And if you're stepping up to a higher-wattage H1 bulb, run it through a relay so you're not pushing all that current through old, tired factory wiring and switches. The lamp will take the bulb fine, but your decades-old harness might not love the extra draw.

The other quiet advantage here is availability. Old-style sealed beams get harder to find every year, and quality varies wildly when you do track one down. An H1 bulb, on the other hand, is a common part you can pick up almost anywhere. Keep a spare in the glovebox or toolbox and a burned-out bulb on a dark road becomes a five-minute fix instead of a tow. For anything you actually drive or work with regularly, that peace of mind is worth a lot.

Who's this for? Anyone restoring or maintaining a vehicle or machine with the 5-3/4 inch round setup who's tired of hunting down sealed beams and wants the flexibility of a replaceable bulb. It's a simple, well-made piece that does exactly one job and does it right. If you're not sure it's the correct size or bulb fit for your application, measure your existing lamp and check the bulb type before you order, and reach out to us if you want a second set of eyes on it.
