Hella Marine

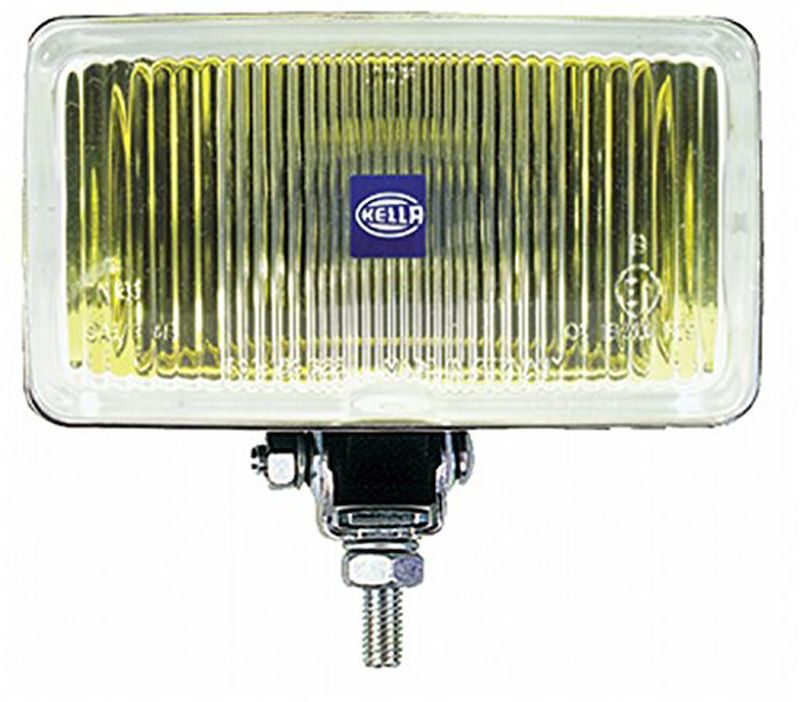

Hella 450 H3 Halogen Driving Lamp, Amber Lens

SKU: 2009298 · UPC: 760687163824 · MPN: 005860261
4.7 · 0 reviews
Authorized dealer43% off
$34.19
$60.22Save $26.03
or 4 payments of $8.54 with Affirm · See disclosures
In stock — Ships Monday Pickup Tuesday · Fort Lauderdale (FL)
SAME-DAY SHIPPING · 14:23 EST
Order now, ships Monday
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$34.19
02 · Overview

Hella 450 H3 Halogen Driving Lamp, Amber Lens — Product description

The Hella 450 is a compact H3 halogen driving lamp built to throw a tight, far-reaching beam down the road ahead. It runs a serviceable 55-watt H3 bulb behind an amber lined lens, sits in a light ABS housing, and drops onto almost anything with its universal stud mount. Ships as a single light with the bulb and mounting hardware in the box.

The Hella 450 is a compact rectangular driving lamp that does one thing and does it well. It throws a tight, long-reaching beam straight down the road ahead. A driving beam isn't meant to light up the shoulder beside you or wash a wide work area. It's built for distance, filling in the black stretch past where your high beams quit. Mount it up front, wire it to a switch, and you've got real reach when the road gets dark and you want to see what's coming.

At the center of it is a standard H3 halogen bulb pulling 55 watts. That's a bigger deal than it sounds. H3 is one of the most common auxiliary-lamp bulbs made, so when the filament finally gives out, you're not chasing down anything rare or proprietary. Pull the spent bulb, drop a fresh H3 in its place, and you're lit again. There's no sealed-beam unit to throw in the trash and no odd bulb to special-order, which keeps this lamp cheap to live with over the long haul.

The lens is amber lined, and that tint is there for a reason. Amber light cuts through fog, rain, dust, and blowing snow with far less glare bouncing back into your eyes than a plain clear lens throws. If you spend time out in bad weather or on dusty back roads, an amber driving lamp is easier to look through and gives you a warmer, more usable pool of light in the soup. In clean, clear air a clear lens will reach a hair farther, so pick the tint that matches the conditions you actually run in most.

Hella molded the housing from ABS, which keeps the whole lamp light and easy to handle. That plays right into the universal stud mount on the base. One bolt through a bracket, a light bar, a roof tab, or a custom plate and you're mounted. Because the stud is universal, it'll go just about anywhere you can drill a hole and back it up. Give the stud a solid backing so it isn't fighting a thin flexing panel, snug the nut down so road vibration doesn't walk it loose, and add a dab of threadlocker while you're at it. That's cheap insurance against a lamp that slowly droops out of aim.

Wiring is simple, but it's worth doing right. A 55-watt bulb on a 12-volt system draws right around 4.6 amps. One lamp is nothing. But add a second on the same switch and you're pushing 9 to 10 amps, which is enough that you'll want a relay so the heavy current runs on thick wire straight from the battery instead of cooking your dash switch. Put an inline fuse close to the battery, run 14-gauge wire or heavier to the lamp, and ground to clean bare metal. Do that and this thing will fire up reliably season after season.

This lamp ships as a single light. Plenty of people run driving lamps in matched pairs for a balanced spread of light out front, so if that's the plan, grab two and put them on the same relay and switch. Aiming is easy. Park facing a wall or a long flat stretch, set the bright hot spot just below level so you're lighting the distance without blinding oncoming traffic, then lock the stud down tight. Take a minute to get it right and you'll be glad every night you flip it on.

It carries an ECE approval marking, so it's built to a recognized lighting standard rather than being some no-name part. Keep in mind that auxiliary driving lamps are fully road-legal in some places and limited to off-road or auxiliary use in others, so check your local rules before you tie it into your high-beam circuit. In the box you get the lamp itself, the H3 bulb already fitted, and the mounting hardware. That's everything you need to bolt it up and wire it in.

So who's this for? Anyone who wants more reach out front without stepping up to a pricey LED bar, and anyone who likes being able to swap a bulb instead of replacing a whole fixture. It's not a flood, so it won't blanket a wide area with light, and it's not a low-mounted fog-only lamp. It's a forward-reaching driving lamp with a serviceable bulb and a mount that goes anywhere. Match it to the job and it earns its keep.

Key Features

  • H3 halogen bulb at 55 watts, a common serviceable bulb you can replace instead of tossing the whole lamp
  • Driving beam pattern throws a tight, long-range pool of light past where your high beams stop
  • Amber lined lens cuts glare-back in fog, rain, dust, and snow for easier eyes in bad weather
  • Rectangular 3.5 by 6.3 inch profile fits tight mounting spots up front
  • Lightweight ABS housing keeps the lamp easy to handle and mount
  • Universal stud mount bolts to a bracket, bar, roof tab, or custom panel with a single fastener
  • 12-volt operation drawing about 4.6 amps, simple to wire with a relay and inline fuse
  • Ships as a single light with the H3 bulb already fitted and mounting hardware included
  • ECE approval marking, built to a recognized lighting standard

Why Buy from NVN Marine

  • Authorized Hella Marine reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Tuesday) $34.19
03 · The numbers

Technical specifications

Title Hella 450 H3 Halogen Driving Lamp, Amber Lined Lens, Single
Brand Hella Marine
Manufacturer Part Number 005860261
UPC 760687163824
Series 450
Product Type Halogen Driving Lamp
Bulb Type H3 Halogen, Clear
Wattage 55 Watt
Voltage 12V
Beam Pattern Driving Beam
Lens Amber Lined
Lens Shape Rectangular
Dimensions 3.5 x 6.3 in
Housing Material ABS
Mount Type Universal Stud Mount
Configuration Single Light
Included Lamp with H3 Bulb and Mounting Hardware
Approval ECE
04 · Before you buy

Frequently asked questions

What bulb does the Hella 450 driving lamp use?

It uses a standard H3 halogen bulb rated at 55 watts. H3 is one of the most common auxiliary-lamp bulbs out there, so replacements are easy to find. The lamp ships with the bulb already fitted.

What's a driving beam, and how is it different from a fog lamp?

A driving beam is a tight, long-range pattern meant to reach far down the road, filling in the distance past your high beams. A fog lamp does the opposite, throwing a wide, low, close-in spread. This one is a driving lamp built for reach, not a fog lamp.

Why does it have an amber lens?

The amber lined lens helps cut through fog, rain, dust, and blowing snow with less glare bouncing back at you than a clear lens. It gives you a warmer, more usable pool of light in bad weather. A clear lens reaches slightly farther in clean air, so it comes down to where you run most.

Does it come with the bulb and mounting hardware?

Yes. In the box you get the lamp, the H3 bulb already installed, and the mounting hardware. That's everything you need to bolt it on and wire it in.

How do I mount it?

It uses a universal stud mount, so one bolt through a bracket, light bar, roof tab, or custom plate and you're set. Give the stud a solid backing plate so it isn't fighting a thin panel, and use a little threadlocker so vibration doesn't loosen it over time.

Do I need a relay to wire it?

A single 55-watt lamp on 12 volts draws about 4.6 amps, which a good switch can handle. But if you run two lamps on one switch you're near 9 to 10 amps, and at that point a relay is the right call so the heavy current runs on thick wire from the battery instead of through your dash switch. Fuse it close to the battery either way.

Can I run two of these as a pair?

Yes. It ships as a single light, and a lot of people run driving lamps in matched pairs for a balanced spread out front. Just put both on the same relay and switch.

How big is the lamp?

The lens is rectangular, measuring 3.5 by 6.3 inches, so it fits tighter mounting spots than a large round lamp.

What is the housing made of?

The housing is molded ABS, which keeps the lamp light and easy to handle and mount.

Is it road legal?

It carries an ECE approval marking, meaning it's built to a recognized lighting standard. That said, auxiliary driving lamps are road-legal in some places and restricted to off-road or auxiliary use in others, so check your local rules before wiring it into your high-beam circuit.
