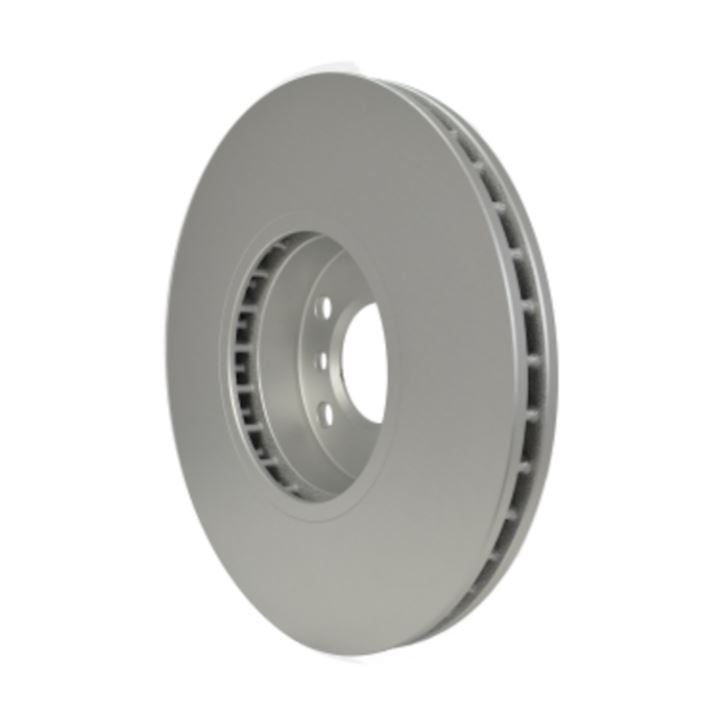

Hella 355122892 Vented Disc Brake Rotor, 332mm 6 x 112mm

This is the Hella 355122892 disc brake rotor, a direct replacement rotor for vehicles running a 6 x 112 millimeter wheel bolt pattern. It's a vented, one-piece casting measuring 332 millimeters across the outside diameter with a 30 millimeter nominal thickness and a 62.20 millimeter overall height. The center hub bore is 75 millimeters. If those numbers match what's on your car, you're looking at the right rotor.

The rotor is vented, and that matters more than it sounds. A vented rotor runs two friction faces with cooling vanes cast between them. As the wheel spins, those vanes pull air through the middle of the rotor and carry heat away from the braking surface. That's what keeps your braking feel consistent when you're doing repeated hard stops down a long grade or in stop-and-go traffic. A rotor that can't shed heat starts to fade, and you feel it as a softer, longer pedal. This one's built to move that heat out.

It's cast as a single piece from gray cast iron, which is the standard for a reason. Gray iron handles heat cycling well, damps vibration so you get quiet braking, and machines to a clean, flat friction surface. Hella finishes the rotor with a zinc coating. That coating keeps surface rust off the hat, the edges, and the vanes, the parts of the rotor that aren't swept by the pads. It's the difference between a rotor that still looks clean after a wet winter and one that's orange with flash rust after a week. The friction ring itself wears clean on the first few stops, so you don't need to strip the coating before you install it.

Fitment comes down to a few numbers, so check them against your vehicle before you order. The bolt pattern is 6 x 112 millimeters, six lugs on a 112 millimeter circle. The center bore is 75 millimeters, which locates the rotor on the hub. And the outside diameter is 332 millimeters. Get all three right and the rotor seats square and true. This part is sold as a single rotor. Most vehicles wear both sides of an axle at about the same rate, so if you're replacing one, plan on replacing the other at the same time and order two.

Installing it is straightforward if you've done brakes before. Pull the caliper and bracket, take off the old rotor, and clean the hub face down to bare metal. Any rust or crud left on that face will hold the new rotor off square and give you runout, which shows up as a pulsing pedal. Set the new rotor on, snug it with a lug or two so it can't move, then reinstall your caliper bracket and caliper to spec. Fresh pads are the right call any time you put on new rotors. Old pads have worn to the shape of the old surface and won't seat evenly on a new one.

Once it's all bolted up, bed the pads and rotor in before you lean on them. A series of moderate stops from moderate speed builds an even transfer layer of pad material onto the rotor face and gets everything mated. Let the brakes cool between stops, and follow the bedding procedure from your pad maker if they give one. Skip this step and you're more likely to end up with uneven deposits and a shudder later. Do it right and you've got a clean, quiet rotor that stops the way it should.

When should you replace a rotor instead of just pads? If you're feeling a pulse through the pedal or the wheel, if the surface is deeply scored or grooved, or if the rotor has worn past its minimum thickness stamped on the hat, it's time. At 30 millimeters nominal, this rotor gives you plenty of material to run a full set of pads down before you're anywhere near minimum. Measure your old one with a caliper if you're not sure. And if one side's worn, do the pair.
