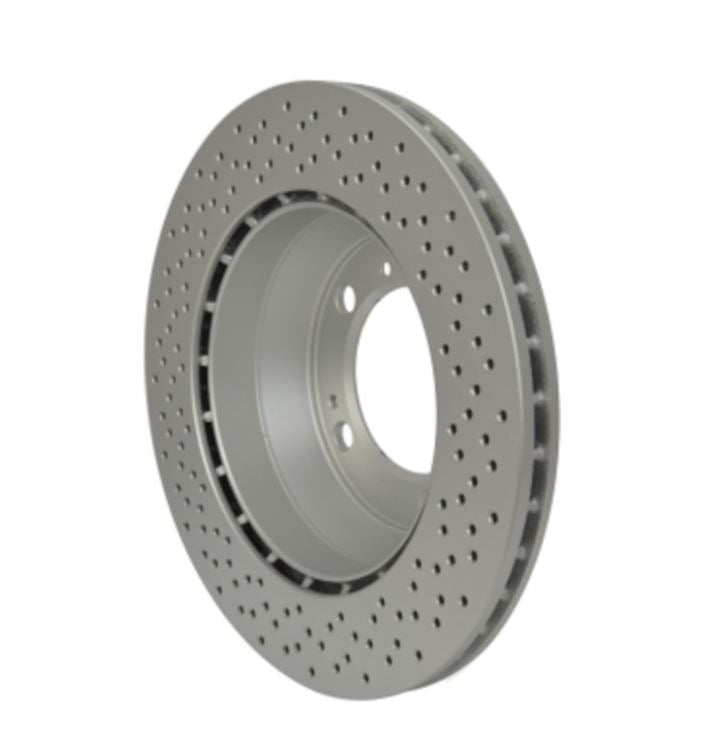

Hella 355121942 Vented Drilled Brake Rotor 299mm

The Hella 355121942 is a direct replacement disc brake rotor for vehicles that run a 299mm rotor with a 98mm hub bore and a 9 x 130mm bolt pattern. It's a vented and cross-drilled design, cast as one piece from gray cast iron and finished with a zinc coating. If your current rotors are worn past spec, grooved, or throwing off pedal pulsation, this is a clean, no-drama way to get your braking back to where it should be.

Let's talk about the venting first, because it does real work. A vented rotor has two friction faces with vanes cast between them. That gap lets air move through the disc as the wheel spins, pulling heat out during hard or repeated stops. Heat is the enemy of consistent braking. When a rotor can't shed it fast enough, you get brake fade, that soft, sinking pedal feeling on a long downhill or after a few quick stops in traffic. The 24mm nominal thickness here gives the vanes room to do their job.

The cross-drilling adds another layer. The holes give the gasses and dust that build up between the pad and the disc somewhere to escape, so the pad keeps biting clean metal instead of riding on a thin cushion of its own outgassing. Drilled rotors also shed water quickly, which helps that first stop after you've been driving through rain. They look sharp behind an open wheel too, but the real reason they exist is bite consistency.

Construction is straightforward and proven. Gray cast iron has been the standard rotor material for decades because it handles heat well, damps vibration, and wears predictably against a normal brake pad. The one-piece casting keeps everything rigid, so you're not fighting runout from a two-part hat design. The zinc coating matters more than people expect. Bare cast iron starts rusting almost immediately, especially on the hat and the edges the pad never touches. That surface rust is cosmetic at first, but over a wet season it can flake and creep. The zinc finish holds it off and keeps the rotor looking and working right.

Fitment is the part you can't skip. This rotor is built to a specific set of dimensions: 299mm outside diameter, 24mm nominal thickness, 75mm overall height, a 98mm center hub bore, and a 9 x 130mm wheel bolt pattern. Measure your old rotor or check your vehicle's brake specs against those numbers before you order. The hub bore and bolt pattern have to match exactly, and the diameter and thickness have to match your caliper and bracket. If all five line up, you're good. If you're unsure, give us a call with your year, make, and model and we'll help you confirm.

A couple of practical notes on installation. This is sold as a single rotor, so if you're doing an axle, order two and replace them in pairs. Rotors wear together and brake evenly together, and mixing a fresh disc with a worn one is asking for a pull under braking. Clean the hub face before you mount the new rotor so it seats flat with no rust scale behind it, torque the caliper bracket and any retaining hardware to your vehicle's spec, and bed the pads in properly once everything is back together. A good bed-in is a series of moderate stops from moderate speed to lay an even layer of pad material onto the disc. Skip that step and you invite uneven deposits and pedal shudder down the road.

Who's this for? Anyone replacing tired rotors who wants the extra cooling and wet-weather bite of a vented, drilled disc without stepping into exotic materials or exotic pricing. It's a sensible pick over a plain solid rotor and a solid like-for-like replacement if your vehicle already ran vented, drilled discs from the factory. Order the pads and any hardware you need at the same time so you can knock out the whole job in one go.
