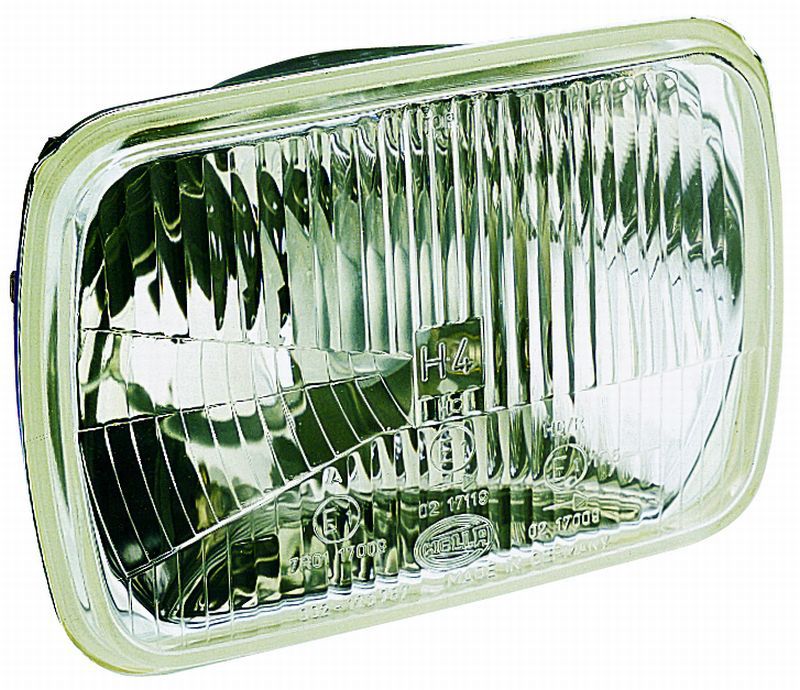

Hella 003427011 H6054 7x6 H4 Headlamp | Rectangular

Hella has been building headlamps for a long time, and the 003427011 is one of those parts that just does its job. It's a 7-1/2 by 5-1/5 inch rectangular H6054 unit, the size that dropped into a whole generation of trucks, vans, and older cars that ran the classic 7x6 rectangular sealed beam. The big difference here is that this isn't a sealed beam. It's a conversion housing that takes a standard, replaceable H4 halogen bulb. So when the light finally goes dim or a filament gives up, you swap the bulb instead of tossing the entire lamp.

That one change matters more than it sounds. A traditional sealed beam is a single throwaway part. The filament, the reflector, and the lens are all one sealed glass unit, and when any of it fails you buy a whole new lamp. This Hella housing separates the bulb from the lamp body. Pop in a fresh H4, and you're back in business for a few dollars instead of the price of a full headlight. It also opens the door to running a brighter or different-temperature H4 down the road, because the bulb sits on a standard base.

The lens is a lined lens, so the optics are molded right into the glass to spread and aim the light the way a proper headlight should. And because H4 is a dual-filament bulb, this single lamp handles both your low beam and your high beam. Flip to brights and the second filament fires. That keeps the wiring simple and the install clean, since one lamp on each side does the full job with a single connector.

A couple of honest notes before you order. This is the without-turn-signal version, so there's no amber running or signal function built into the housing itself. If your setup leans on the headlight area for a turn or marker light, you'll want to keep your existing separate signal lamps in the circuit. And it's sold as a single. Most rigs run a matched pair up front, so if you're refreshing both sides at once, order two so the output and the lens pattern line up side to side.

Fit and finish is where Hella earns its name. The unit ships with a dust cover on the back, a rubber boot that seals around the bulb connector and keeps spray, grit, and moisture off the terminals. That's the quiet part that saves you later, because a corroded H4 connector is the usual reason a good lamp starts flickering. Keep the boot seated, add a little dielectric grease on the connector, and this lamp will stay bright and steady for years.

Who's this for? Anybody bringing a 7x6-equipped vehicle back to proper nighttime visibility. Maybe it's a work truck that lives outside, a project that's been sitting in the barn, or you're just tired of straining to see past a pair of yellowed old beams. The install is straightforward on anything that already used this rectangular size. Unplug the old lamp, transfer the H4 connector, seat the new housing in the bucket, and check your aim against a wall or garage door before you head out. Figure ten minutes a side for most people, less once you've done the first one.

It's a simple part, and we like simple parts that are built right. No gimmicks and nothing to overthink. A proper rectangular H6054 housing, a replaceable H4 bulb, a lined lens, and a dust cover to keep the weather out. If your old sealed beams have gone dim and amber, this is the straight-ahead fix that gets your light back where it belongs. Order one to sort out a single side, or grab a pair and freshen the whole front end in one afternoon. Either way, you'll notice the difference the first night you drive it.
