Garmin GPSMAP 9217xsv 17" Chartplotter Sonar Combo

This is the top of the line. The Garmin GPSMAP 9217xsv is a 17-inch premium chartplotter and sonar combo built for a glass-helm install where you want the biggest, brightest screen and no compromises. It's a 4K IPS sunlight-readable touchscreen with edge-to-edge glass, and it looks every bit as good as it performs. If you're rigging a serious offshore or tournament boat and you want one display that anchors the whole helm, this is it.

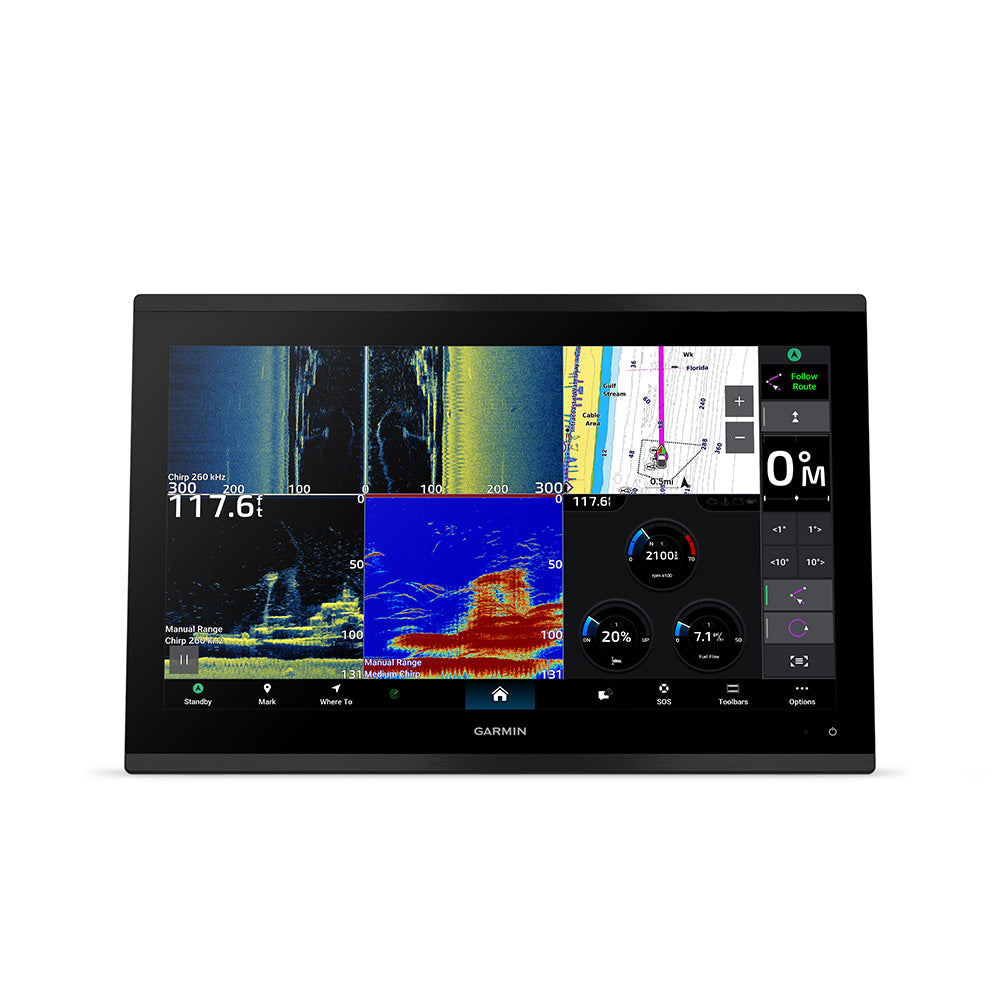

Start with the screen, because that's what you live with every day out there. It's a 4K IPS panel with a Mini LED backlight that does local dimming, so blacks stay deep and the whole picture stays readable in direct sun. Resolution is 3840 by 2160, which on a 17-inch class display means charts, sonar, and radar all render clean and detailed. And it's fast. Garmin says processing is up to 7 times quicker than previous generations, and you feel it. Charts draw right now instead of catching up to you, and Auto Guidance+ routes calculate almost as fast as you can ask for them with an optional Navionics+ subscription.

The xsv in the name means sonar, and this one carries Garmin's best. Built-in 1 kW xCHIRP with RapidReturn gives you excellent target separation, so fish show up crisp and clear instead of blurred together. It supports ClearVu and SideVu scanning sonar, and it's ready for Panoptix and LiveScope real-time sonar too. Keep in mind the transducer is sold separately, so you pick the one that matches how and where you fish. The head unit is ready for all of it.

It comes preloaded with Garmin Navionics+ charts featuring Auto Guidance+ technology, and it supports Navionics Vision+ if you want premium relief shading and satellite imagery. Your position comes from a built-in dual-frequency 10 Hz GPS with multi-band, multi-constellation support across GPS, GLONASS, GALILEO, and BEIDOU, so your boat sits exactly where it should on the chart even when you're moving fast.

Where the 9000 series really separates itself is the network. It runs on Garmin BlueNet with gigabit speeds and two BlueNet ports, so you can build out a big system with multiple chartplotters, cameras, radar, and sonar all talking to each other fast. Add autopilot control from any display on the network, tie in engine monitoring, connect cameras to see footage right on the screen, and integrate compatible radios. It handles AIS and DSC, supports ActiveCaptain for wireless software updates and planning, and even takes spoken commands through a compatible headset or watch. Sailors get the full Sailassist suite with laylines, race start guidance, wind rose, and polar tables.

Physically it's built for the water. IPX7 water resistance, marine-grade construction, and a flush or flat mount to sit clean in the helm. It weighs about 13 pounds and draws roughly 4.3 amps at 12 volts, so plan your mounting and wiring accordingly. In the box you get the chartplotter, power cable, a 2-meter NMEA 2000 backbone drop cable with T-connector, flush mount kit, protective cover, trim piece snap covers, and documentation.

One more thing worth calling out is how well it plays with a bigger ecosystem over time. Because it's built on the fast BlueNet backbone, you can start with just this display and grow the system as you go, adding a second screen at a second helm, a radar dome, cameras watching the engines, and a sonar black box down the road. The unit doesn't box you in. It's designed to be the hub you build around for years, not a one-and-done purchase you outgrow next season.

Who's this for? Bigger offshore boats, sportfish, and serious tournament rigs where the helm can carry a 17-inch display and the captain wants one flagship screen doing chart, sonar, and network duty. If your helm is tighter, the 13-inch versions in the same family give you the identical platform in a smaller footprint. But if you've got the real estate and you want the best Garmin makes, the 9217xsv is the one to build your helm around.
