Garmin GPSMAP 9017xsv Premium Chartplotter/Sonar Combo

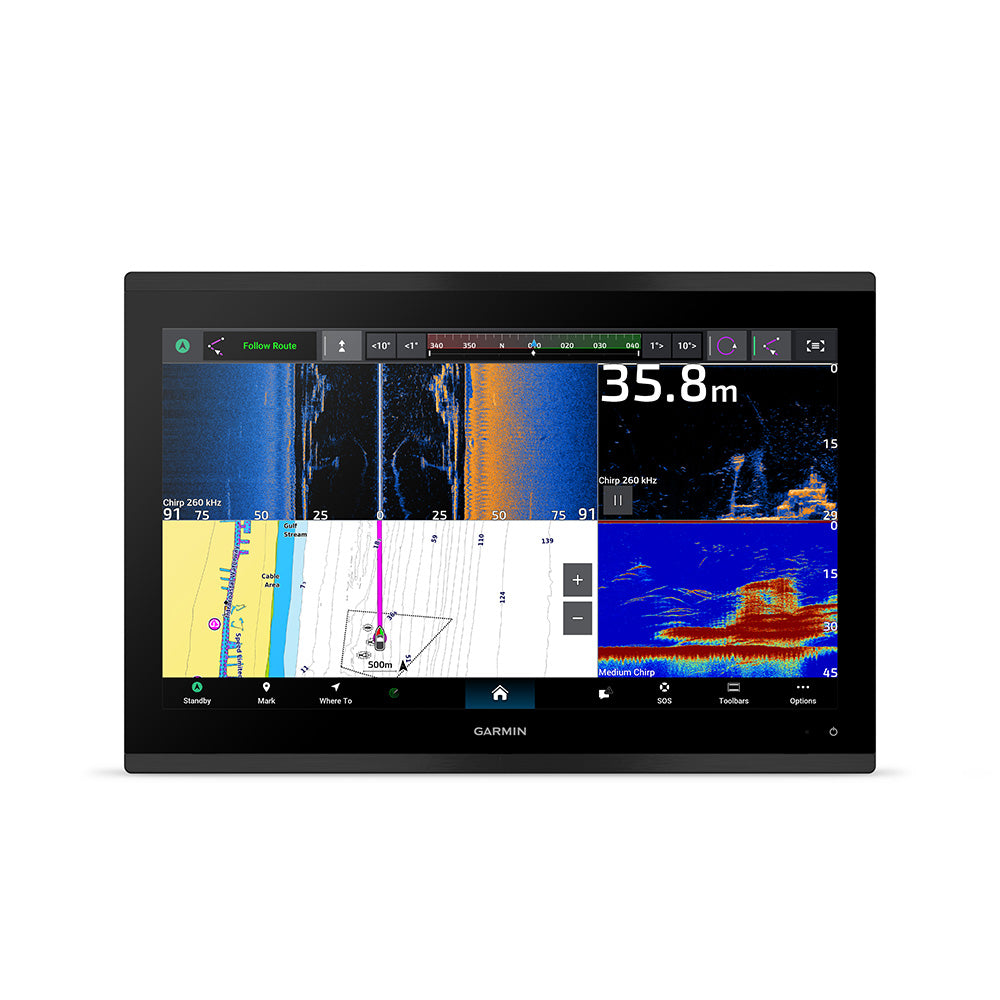

The Garmin GPSMAP 9017xsv is the top-shelf glass helm for captains who want the best screen and the fastest brain on the dash. You get a 17-inch 4K IPS touchscreen with a Mini LED backlight, and it stays readable in direct sun even with polarized glasses on. This is the display that makes a 35-foot center console or express cruiser feel like a modern bridge.

Speed is the story here. The processor is up to 7 times faster than previous generations, so charts redraw the instant you pan, and Auto Guidance+ routes calculate almost as fast as you can pick a destination (a Garmin Navionics+ subscription handles the routing math). If you've ever waited on an older plotter to catch up while you're threading a channel, you'll feel the difference right away.

The sonar is Garmin's best built-in package. You get 1 kW xCHIRP with RapidReturn for crisp target separation, and the unit supports ClearVu, SideVu, Panoptix and LiveScope when you add the right transducer. Worth saying plainly: no transducer is included in the box, so plan on a GT-series or Panoptix ducer to match your fishing. Out past 300 feet, most anglers pair it with a GCV black-box sonar to keep the picture clean.

Networking is where the 9017xsv really stretches its legs. It runs on the Garmin BlueNet network at gigabit speed, so you can tie together multiple displays, cameras, radar and sonar without the picture stuttering. Built-in Wi-Fi runs both 2.4 GHz and 5 GHz for ActiveCaptain updates over the air. NMEA 2000 and NMEA 0183 are both on board for engine data, autopilot and instruments. Sailors get the full SailAssist suite, laylines, wind rose, polars and race start guidance.

Control is by touch, and it's responsive, but you can also add a GRID remote or drive it from a compatible Garmin smartwatch when your hands are full at the wheel. Voice commands work through a compatible headset or quatix watch, so you can zoom, mark a waypoint or change pages without letting go of the throttle. The whole unit carries an IPX7 water rating, so spray and the occasional wave over the bow are no problem.

On the chart side, the 9017xsv ships with a Worldwide Basemap and supports Garmin Navionics+ for daily chart updates and Auto Guidance+, or you can step up to Garmin Navionics Vision+ for relief shading and satellite imagery of your favorite inlets. Position comes from a built-in dual-frequency 10 Hz GPS that also reads GLONASS, GALILEO and BEIDOU, so your boat icon sits exactly where it should even when you're running fast through a turn. Two microSD card slots on the back let you keep charts and sonar logs separate.

There's more here than navigation. The 9017xsv handles video and audio across the network, so you can view connected cameras right on the screen and share the same feed to other displays. It ties into engine monitoring, digital switching and autopilot through NMEA 2000, which turns the helm into a single command center for the whole boat.

A few install notes from the field. This is a heavy 17-inch head unit at 13 pounds, so it wants a reinforced backing plate behind single-skin fiberglass or it'll work loose over time. Run it on its own 15-amp breaker with a proper gauge power wire, because voltage drop below about 11.5 volts during engine start can cause nuisance reboots. And if you're building a multi-display network, isolate the plotter on a clean backbone segment so radar and autopilot traffic don't crowd the bus.

Who's this for? Serious cruisers and tournament anglers on boats from the mid-30s and up who want one no-compromise screen at the helm. It's overkill for a 19-foot skiff, and honestly the cutout is too big for most small dashes. But on the right boat, the GPSMAP 9017xsv is the kind of helm you build the rest of the electronics around. We can help you spec the transducer, the network layout and the power run before it ships.
