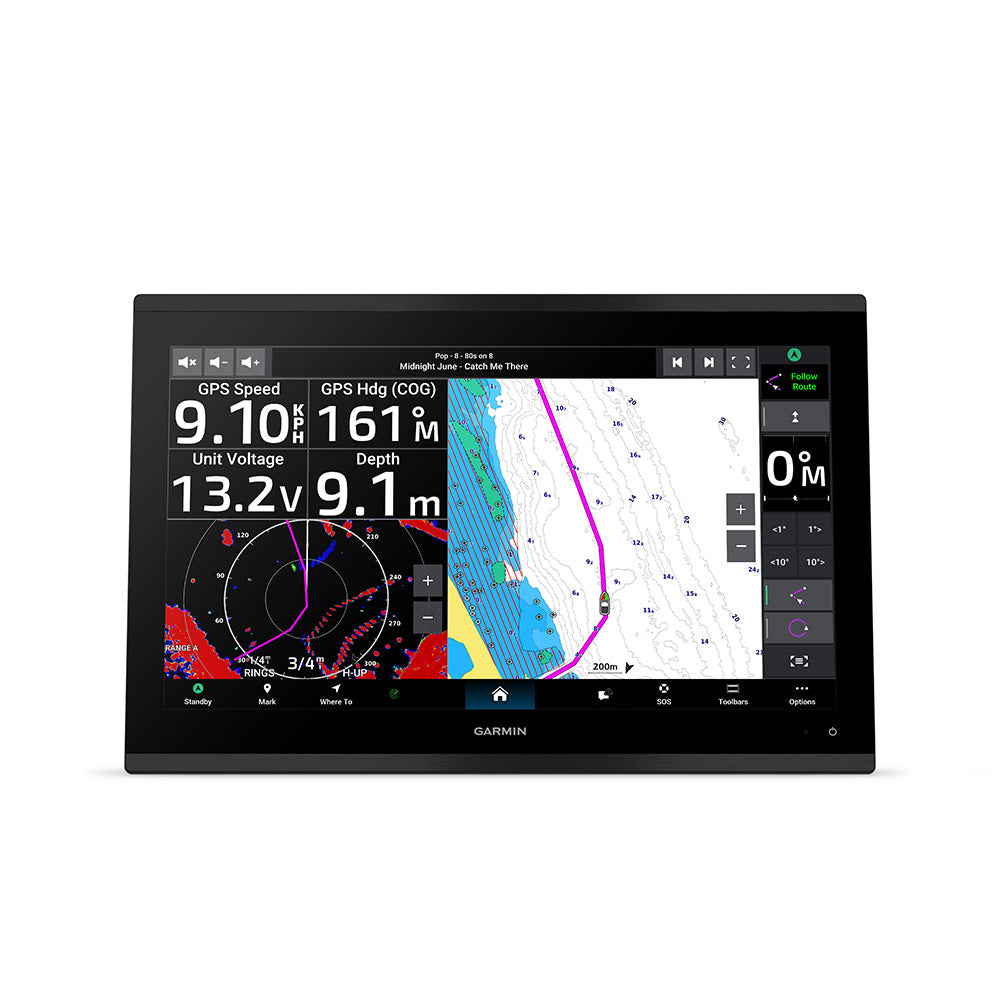

Garmin GPSMAP 9017 Premium 17" 4K Chartplotter w/Worldwide Basemap

The Garmin GPSMAP 9017 is the flagship glass helm chartplotter, a 17-inch 4K touchscreen built for captains who want the best display at the helm. This is the worldwide basemap version, part 010-03177-00. You get edge-to-edge IPS clarity, sunlight readability that holds up on an open bridge, and a Mini LED backlight with local dimming that keeps charts and camera feeds crisp even at midday. At 3840 by 2160 pixels, the detail on a full-screen chart is something you really have to see in person.

What sets the 9017 apart from earlier Garmin units is speed. Processing power is up to 7 times faster than previous generations, so charts redraw instantly and Auto Guidance+ routes calculate in a blink with an optional Garmin Navionics+ subscription. If you've ever waited on an older plotter to catch up while you're threading a channel, you'll notice the difference right away. It's a genuinely responsive helm.

The 9017 is built around the Garmin BlueNet network, which runs at gigabit speed. That's the backbone for a serious multi-display boat. You can tie in additional chartplotters, GMR radar, cameras, and black-box sonar, and share the same video and audio across every screen and speaker on the network. Bring in the NMEA 2000 backbone for autopilot control, engine monitoring, and instrument data, and you've got a helm that talks to the whole boat. One thing worth knowing from the install side: a NMEA 2000 backbone is the right way to carry autopilot and engine data. Trying to run everything through NMEA 0183 alone tends to cause dropouts.

Let's talk mounting, because this is a big display. The 9017 weighs 13 pounds and measures 16.80 by 11.23 by 3.60 inches. On a center console or express cruiser, you want a reinforced dash or a solid bracket. A flexy mounting surface can actually cause touch issues, so it's worth doing the backing right the first time. You'll also want more than 5 inches of depth behind the dash for the connectors and for airflow, since a tight, sealed pocket can let the unit run hot. It fits beautifully on 40-foot-plus powerboats and sport yachts. On smaller express cruisers, plan on a custom cutout.

Power is straightforward but worth respecting. The unit runs on 10 to 32 Vdc and draws about 4.3A at 12 volts. On a 12V system, run a proper 15-amp fuse and thick wire. Voltage drop on a long, thin run can drop the unit mid-boot, which is a maddening thing to chase down later. Do the wiring right and it just works.

For navigation, the 9017 supports Garmin Navionics+ charts with Auto Guidance+ technology, which helps you plan routes around land and water hazards based on chart data. Step up to Garmin Navionics Vision+ for premium relief shading and satellite imagery. Position comes from a built-in dual-frequency 10 Hz GPS with multi-band, multi-constellation support, so your boat icon sits right where it should. One field tip: chart updates over Wi-Fi can be hit or miss, so a lot of captains just copy the update to a microSD card and install it at the dock. More reliable that way.

The connectivity list is deep. You get AIS and DSC support, built-in Bluetooth and ANT, 2.4 and 5 GHz Wi-Fi for ActiveCaptain app updates, HDMI in and out, a composite video input, and Fusion-Link audio control. Sailors get the full Garmin SailAssist suite: laylines, race start guidance, wind rose, true wind data, and sailing polars. And when your hands are full, you can run the plotter with spoken commands through a compatible headset or quatix smartwatch. The touchscreen is excellent, though like any capacitive screen it can get fussy through polarized sunglasses or heavy rain, so it's good the interface backs up cleanly with a remote input device.

Who's this for? Captains and anglers rigging a premium glass helm on a larger boat who want the sharpest display Garmin makes and room to grow the network over time. It's built for harsh marine conditions with an IPX7 water rating, so weather isn't a concern. If you're outfitting a serious bridge and you want it done once, done right, the 9017 is the centerpiece.
