Garmin GPSMAP 9013xsv 13" Chartplotter Sonar

The Garmin GPSMAP 9013xsv gives you the flagship 9000-series experience on a 13-inch display, which is the sweet spot for a lot of boats. It's a premium 4K IPS sunlight-readable touchscreen with built-in sonar, and it's the same fast, capable platform as the big 17-inch unit in a footprint that fits more helms. If you want a serious glass-helm chartplotter and sonar combo but 17 inches is more screen than your dash can take, this is the one.

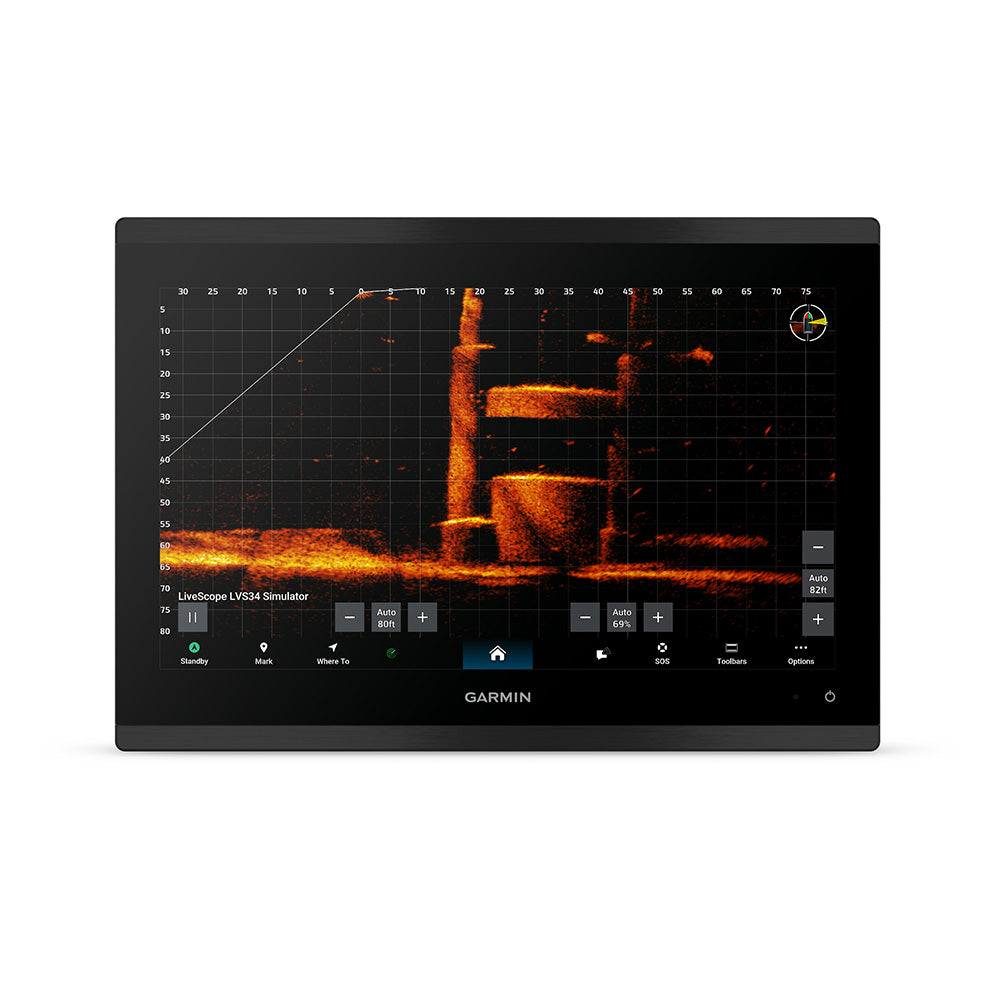

The display is a 4K IPS panel with a Mini LED backlight that does local dimming, so it holds deep blacks and stays readable in direct sun. Resolution is 3840 by 2160 on a 13.27-inch diagonal, so charts and sonar render sharp and detailed. And it's quick. Processing is up to 7 times faster than previous generations, so charts draw right away and Auto Guidance+ routes calculate fast with an optional Navionics+ subscription. You notice the speed most when you're zooming and panning around a busy chart at speed.

The xsv means built-in sonar, and this carries Garmin's best. You get 1 kW xCHIRP with RapidReturn for excellent target separation, so fish show up crisp instead of smeared together. It supports ClearVu and SideVu scanning, and it's ready for Panoptix and LiveScope real-time sonar. The transducer is sold separately, so you pick the one that suits your water and your fishing. The head unit is ready for all of it.

This version comes with a Worldwide Basemap and supports optional Garmin Navionics+ charts with Auto Guidance+ technology, plus Navionics Vision+ for premium relief shading and satellite imagery when you want to add them. Your position comes from a built-in dual-frequency 10 Hz GPS with multi-band, multi-constellation support across GPS, GLONASS, GALILEO, and BEIDOU, so you sit right on the chart even at speed.

Like the rest of the 9000 series, it runs on Garmin BlueNet with gigabit speeds and two BlueNet ports, so you can build a real system: multiple chartplotters, cameras, radar, and sonar all talking fast. Control a compatible autopilot from any display on the network, tie in engine monitoring, connect cameras to see footage on screen, and integrate compatible radios. It handles AIS and DSC, supports ActiveCaptain for wireless updates and planning, takes spoken commands through a compatible headset or watch, and includes the full Sailassist suite for sailors with laylines, race start guidance, wind rose, and polar tables.

It's built to live on the water with IPX7 water resistance and marine-grade construction. At 13 inches it gives you flexible mounting, and it ships with a bail mount with knobs plus a flush mount kit, so you can bracket-mount it or recess it depending on your helm. It weighs about 9.1 pounds and draws roughly 3.6 amps at 12 volts. In the box you get the chartplotter, power cable, a 2-meter NMEA 2000 backbone drop cable with T-connector, the bail mount, flush mount kit, protective cover, trim piece snap covers, and documentation.

There's a longevity angle here that's easy to miss at purchase time. Because it's built on the fast BlueNet backbone, you can start with just this display and grow the system over the seasons, adding a second screen at a second helm, a radar dome, cameras on the engines, and more sonar down the road. It's designed to be the hub you build a helm around for years, not a unit you outgrow next season, and that matters a lot when you're spending real money on electronics.

Who's this for? Center consoles, express cruisers, and sportfish in the range where a 13-inch flagship display makes sense, captains who want built-in sonar and room to network out radar and cameras, but whose helm isn't sized for a 17-inch screen. It's the same capability as the big unit, just right-sized. If you've got the space and want to go bigger, the 17-inch 9217xsv is the step up. If 13 inches fits your dash, this is a lot of chartplotter and sonar for the helm real estate.
