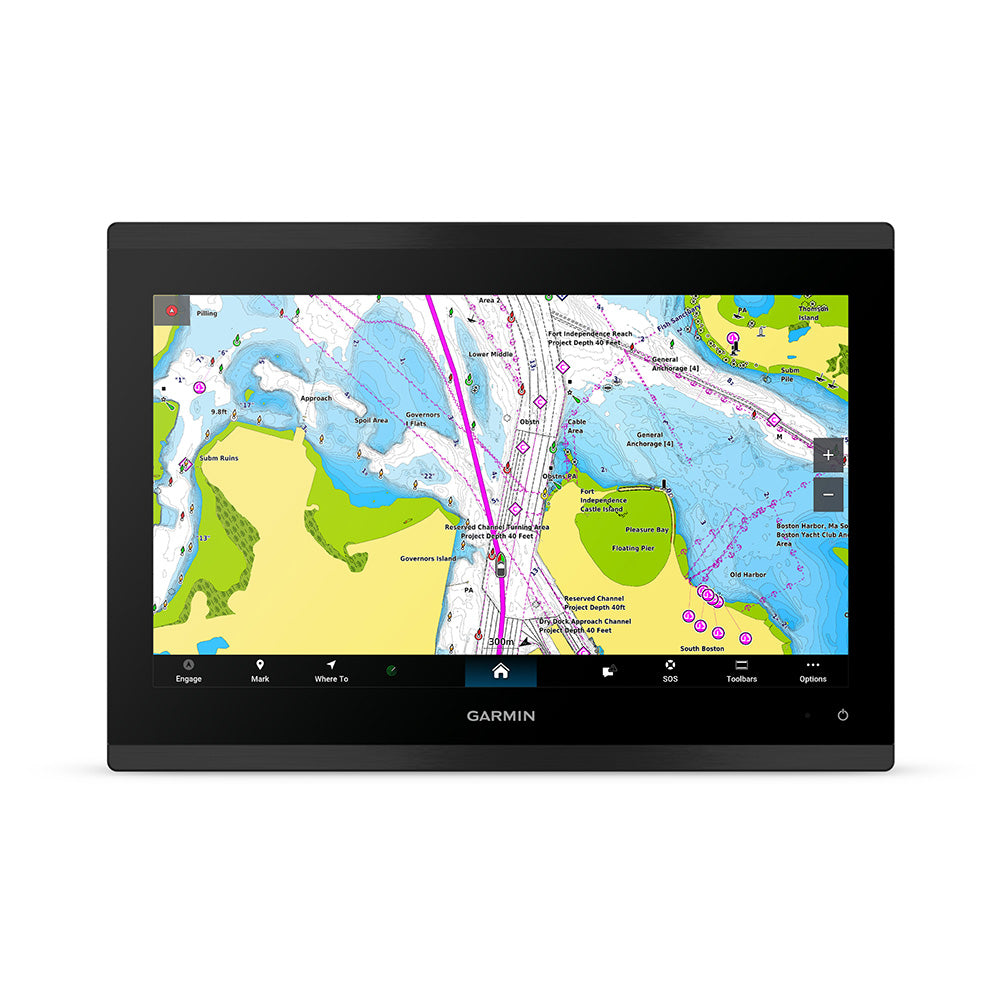

Garmin GPSMAP 9013 13" 4K Premium Chartplotter

The Garmin GPSMAP 9013 gives you the flagship 9000-series platform on a 13-inch display in the chartplotter configuration. It's a premium 4K IPS sunlight-readable touchscreen built for a glass-helm install, focused on navigation, charts, radar, cameras, and networking rather than built-in sonar. If you run sonar from a separate networked source or don't need it at this display, the 9013 gives you the full platform and the big-boat network without paying for sonar hardware you won't use, all in a footprint that fits more helms than the 17-inch models.

Start with the display, since that's what you look at all day. It's a 4K IPS panel with a Mini LED backlight that does local dimming, so blacks stay deep and the screen stays readable in direct sun. Resolution is 3840 by 2160 across a 13.27-inch diagonal, so charts, radar, and camera feeds render sharp and detailed. And it's quick, with processing up to 7 times faster than previous generations. Charts draw right away and Auto Guidance+ routes calculate fast with an optional Navionics+ subscription. You notice the speed most when you're panning a busy chart at cruising speed.

This version ships with a Worldwide Basemap and supports optional Garmin Navionics+ charts with Auto Guidance+ technology, plus Navionics Vision+ for premium relief shading and satellite imagery when you want to add them. Your position comes from a built-in dual-frequency 10 Hz GPS with multi-band, multi-constellation support across GPS, GLONASS, GALILEO, and BEIDOU, so you sit right on the chart even at speed.

The network is where the 9000 series really pulls ahead. It runs on Garmin BlueNet with gigabit speeds and two BlueNet ports, so you can build a real system with multiple chartplotters, cameras, radar, and networked sonar all talking fast. That matters for this model in particular. Even without built-in sonar, it supports adding sonar through a networked black box, so you can bring fishfinder capability to this display over the network whenever you want it. Add autopilot control from any display on the network, tie in engine monitoring, connect cameras to see footage on screen, and integrate compatible radios. It handles AIS and DSC, supports ActiveCaptain for wireless updates and planning, takes spoken commands through a compatible headset or watch, and includes the full Sailassist suite for sailors with laylines, race start guidance, wind rose, and polar tables.

It's built for the water with IPX7 water resistance and marine-grade construction. At 13 inches you get flexible mounting, and it ships with a bail mount with knobs plus a flush mount kit, so you can bracket it or recess it into the helm. It weighs about 9.1 pounds and draws roughly 3.6 amps at 12 volts. In the box you get the chartplotter, power cable, a 2-meter NMEA 2000 backbone drop cable with T-connector, the bail mount, flush mount kit, protective cover, trim piece snap covers, and documentation.

There's a longevity angle here that's easy to miss at purchase time. Because it's built on the fast BlueNet backbone, you can start with just this display and grow the system over the seasons, adding a second screen at a second helm, a radar dome, cameras on the engines, and networked sonar down the road. It's designed to be the hub you build a helm around for years, not a unit you outgrow next season, and that matters when you're spending real money on electronics.

Who's this for? Center consoles, cruisers, and helms that want a 13-inch flagship navigation display and a fast network backbone without built-in sonar, whether because sonar runs from a dedicated module or lives on another screen. If you want sonar built into this display, the 9013xsv is the same 13-inch unit with 1 kW xCHIRP sonar added. If you'd rather have premium charts preloaded, the 9213xsv comes with Navionics+ in it. And if your dash has the room, the 17-inch 9217 steps you up in screen size on the same platform.
