Furuno FSV-25 Scanning Sonar Cable, VV-BB-CJ, 33 ft (10 m)

The Furuno FSV-25 is a serious piece of commercial fishing hardware. It's a full-circle color scanning sonar built to pick up schools of fish at long range and paint them around the boat in real time. Crews run these on tuna boats and larger sportfishers where finding the school first is the whole game, and losing a return to a noisy cable is exactly what you can't afford. A system like that lives and dies by its wiring, and this is the Furuno cable that ties it together. It's the VV-BB-CJ assembly cut to a 33 foot run, which works out to 10 meters, and it carries the signal between the units in your FSV-25 install.

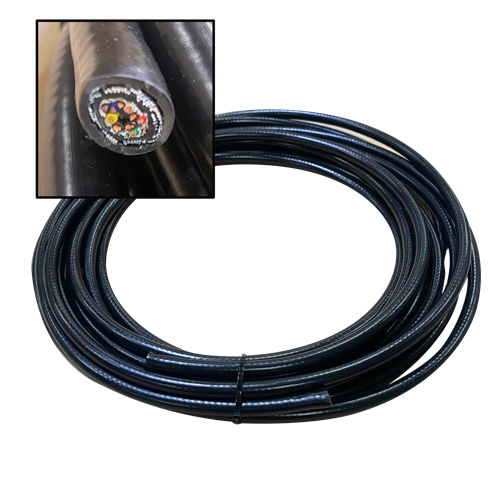

Here's the thing about a sonar this capable. The picture is only as clean as the cable feeding it. This is a five-pair, 0.3 square millimeter cable that Furuno spec'd specifically for the FSV-25, so the conductor count, the shielding, and the terminations all match what the system expects. You're not adapting generic marine wire and hoping the connector lines up. You're installing the exact part Furuno calls out, which is what you want on a scanning sonar that can run into five figures.

We hear the same question a lot. Can I just build my own cable and save a few bucks? On most gear, maybe. On the FSV-25, no. The consensus among the folks actually running these sonars is to stick with the factory Furuno cable and the matching processor and display units. There aren't any third-party substitutes worth trusting here. A bad splice or the wrong shield on a scanning sonar shows up as noise in the exact returns you bought the unit to see.

Length matters too. A 33 foot run is a common choice on 40 to 60 foot sportfishers and commercial boats, where the hull unit sits well forward or low and the processor lives back at the helm or in the electronics locker. Measure your actual run before you order. You want enough cable to route it cleanly with some slack for strain relief, but you don't want to coil up 15 feet of extra in a locker, because a big coil can act like an antenna and pick up interference. If your run comes in shorter than 33 feet, route the slack in long, loose sweeps rather than one tight loop.

Speaking of interference, routing is where a lot of FSV-25 installs go sideways. Keep this cable away from engine harnesses, alternators, inverters, and heavy DC power runs. Those are the usual sources of the electrical noise that muddies a sonar picture. Run it in its own path where you can, cross power cables at 90 degrees instead of running alongside them, and give it a straight, supported route rather than a rat's nest behind the dash. Ten minutes of thought here saves you a day of chasing phantom noise later.

The other spot people fight is the hull tube and the connector ends. Sealing and strain relief at the transducer end are the pain points we hear about most on Furuno scanning sonars. Support the cable so its weight isn't hanging on the connector, seal the hull penetration properly, and don't let it chafe against a bulkhead or stringer as the boat works. Do that and this cable will outlast several hard seasons.

One ordering note. Furuno assigns cable part numbers per system and per length, so if you're servicing an existing FSV-25 or planning a fresh install, check this part against the cable callout in your FSV-25 installation manual before you buy. That way you know the 33 foot VV-BB-CJ is the run your configuration needs. And because we're an authorized Furuno dealer, this cable carries the full Furuno warranty, and you've got real boat techs on our end if you get stuck during the install.
