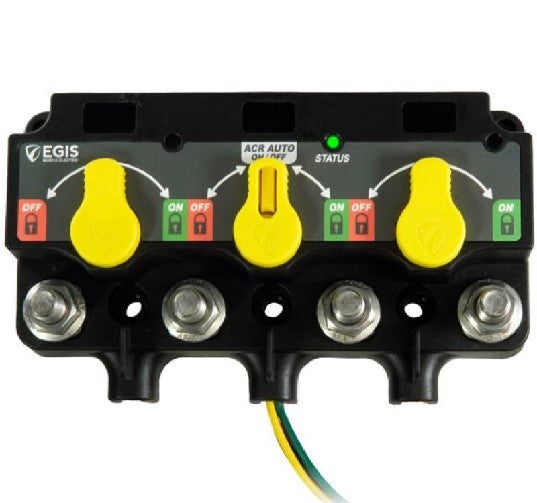

Egis XD Flex 2 Triple Battery Management Switch with VSR

The Egis XD Flex 2 Triple is a three-in-one battery management switch built for boats running more than one battery bank. It packs two mechanical rotary disconnects and a voltage sensitive relay into a single block, so you can isolate your start battery, isolate your house bank, and let the two combine automatically while the engine or charger is putting out voltage. That MECH/VSR/MECH layout is the whole idea. One knob for each bank, plus a smart relay in the middle that does the thinking for you.

Here's the everyday problem it solves. You've got a cranking battery for the engine and a house bank for the electronics, lights, and the stereo. You want both to charge off the alternator when you're running, but you never want the house loads pulling your start battery down to nothing while you're anchored up for the night. The VSR in the center handles that. When charging voltage shows up, it closes and both banks take a charge. When the voltage drops back to resting, it opens and keeps the two banks separate. So your engine always has a battery with something left in it.

The two mechanical sides are simple, honest battery disconnects. Turn the knob to cut power to a bank completely. That's your master off for winter layup, for working on the wiring, or for killing everything at the dock. Each one is rated at 500 amps continuous, with a 1500 amp max cranking surge, so it'll stand up to a real starter draw without complaint. The 8 to 36 volt DC range covers 12, 24, and 32 volt systems, which is handy on bigger boats or anything running a mixed voltage setup.

Egis built this one to live in a boat. The operating range runs from -40 all the way to 105 degrees Celsius, so a hot engine compartment in July or a cold storage yard in January isn't going to bother it. The mounting hardware is stainless steel and self-locking, which matters when everything on board is vibrating down the lake or offshore. Connections are tinned wire terminations, the right call for the marine environment where bare copper corrodes and gives you voltage drop and heat over time.

Physically it's a compact unit, 3.74 inches long by 6.45 inches wide by 2.03 inches tall. That's small enough to tuck onto a bulkhead near the batteries or behind an access panel at the helm. Mount it close to the banks to keep your cable runs short. Shorter runs mean less voltage drop and less weight in heavy gauge cable, which is always the goal on a battery system.

Who's this for? Anyone rigging a two-bank setup who wants dependable isolation plus automatic charging without wiring up a nest of separate switches and relays. Center consoles, cruisers, sport boats, sailboats with a dedicated house bank. If you've ever come back to a dead start battery because the fridge ran all weekend, this is the fix. It's also a clean upgrade when you're redoing an older panel and want everything in one tidy unit.

A couple of honest notes. This is a Triple with the relay built in, so it's more switch than a single-bank boat needs. If you're running one battery and one simple on/off, you're paying for capability you won't use. And the VSR is voltage sensing, not a manual combiner, so it does its combining and separating on its own once it's wired. That's a feature for most people, but it's worth understanding before you install.

Setup is straightforward for anyone comfortable with battery wiring. Each mechanical side gets its bank on one stud and the load or bus on the other, and the VSR ties between the two banks. Because the terminations are tinned and the hardware is stainless and self-locking, you get connections that stay tight and stay clean season after season. Wire it per the Egis diagram, size your cable to the 500 amp rating, and torque the hardware down properly. If you're not comfortable pulling heavy gauge cable and setting lugs, this is a good one to hand to your rigger, but the layout itself is about as simple as a triple switch gets.
