Egis PowerBar Dual M10 250A Busbar | 6250-200
Egis PowerBar Dual M10 250A Busbar | 6250-200 — Product description

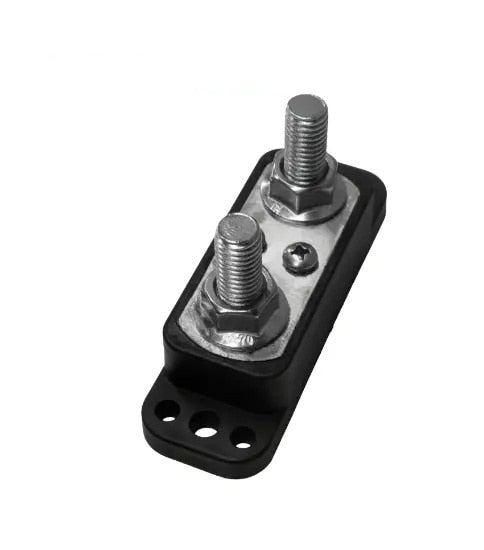

The Egis PowerBar is a dual-stud 250A power distribution bar from the Egis FLEX system. Two M10 (3/8 inch) studs, tin-plated copper busbars, and stainless self-locking hardware give you a clean, high-current landing point for your boat's DC wiring.
The Egis PowerBar gives you a clean, high-current landing point for your boat's DC system. It's part of the Egis FLEX system, so it stacks and lines up height-wise with the other FLEX components you've already got wired in. Two M10 (3/8 inch) studs handle up to 250 amps, which is plenty for tying in an inverter feed, a windlass, or a thruster circuit without cobbling together a stack of ring terminals on one post.
The busbars are tin-plated copper, so you get strong conductivity with minimal voltage drop, and the plating holds up to salt air better than bare copper would. All the hardware is stainless steel and self-locking, so it won't back off with engine vibration or a day of pounding across a chop. If you're building out a tidy, serviceable power panel, this is the kind of part that makes the whole install look like a pro did it. Wire it in once and you can forget about it.
Key Features
- Dual M10 (3/8 inch) studs rated to 250A, enough to land an inverter, windlass, or thruster feed on one bar
- Tin-plated copper busbars for strong conductivity and minimal voltage drop
- Stainless steel self-locking hardware that won't loosen under engine vibration
- Height-matched to the Egis FLEX system so it lines up with your other components
- Ships as a retail pack, ready to mount
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS PowerBar Dual M10 (3/8) Studs - 250A Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 6250-200 |
| UPC | 850067590460 |
| Current Rating | 250A |
| Stud Size | M10 (3/8 inch) |
| Stud Configuration | Dual |
| Busbar Material | Tin-Plated Copper |
| Hardware | Stainless Steel Self-Locking |
| Series | Egis FLEX System |
| Category | Electrical |
| Packaging | Retail Pack |
Frequently asked questions
How much current can the Egis PowerBar handle?
It's rated for 250 amps across its two M10 (3/8 inch) studs, so it's sized for heavier DC loads like inverter, windlass, or thruster feeds.
What size are the studs?
Both studs are M10, which is 3/8 inch. That lets you land larger ring terminals without an adapter.
Is it compatible with other Egis FLEX components?
Yes. It's built to the same height as the rest of the Egis FLEX system so it lines up and stacks cleanly with your other FLEX parts.
What are the busbars made of?
Tin-plated copper. You get the conductivity of copper with plating that stands up to salt air better than bare copper, which means minimal voltage drop over time.
