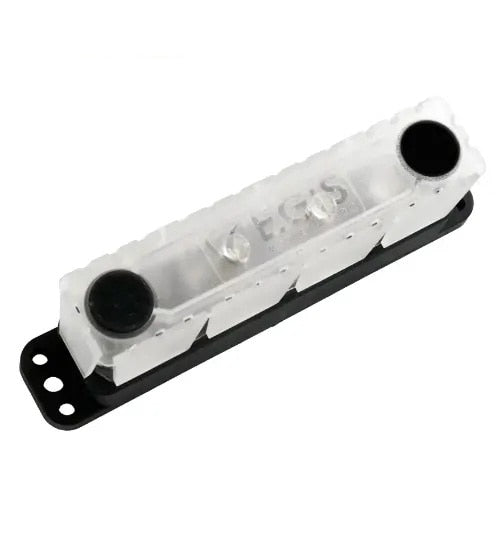

Egis PowerBar 6600-404 600A 80V DC Busbar

Every boat with a real electrical system needs a place where the heavy cables land. The Egis Mobile Electric PowerBar 6600-404 is that place. It's a flat-strip busbar machined from tin-plated copper, rated for 600 amps at up to 80 volts DC, and it gives you four big M10 (3/8 inch) studs for your primary feeds plus four #8 screw terminals for smaller branch circuits. One tidy bar instead of a rat's nest of ring lugs stacked on a single battery post.

If you've ever opened a console and found four rings crammed onto one alternator stud, you already know why this matters. Stacking lugs like that heats up, works loose, and eventually arcs. A proper power bar spreads those connections out, keeps the contact area generous, and gives every cable its own clean landing. The 6600-404 is sized for that job on center consoles, sport boats, and larger cruisers running a mix of 12, 24, or even 48 volt gear.

The four M10 studs are where your fat cables go. Battery feeds, the main house positive, an inverter run, a windlass or bow thruster supply. On a 600-amp bar you want to feed it with 4/0 cable on those primary studs. Undersize the input and the terminal is where the heat shows up first, so match the cable to the load and torque the stainless nuts down properly. The four #8 screw terminals handle the lighter stuff, your electronics feeds, bilge pumps, and lighting circuits, anything that doesn't need a full ring-lug stud.

Egis builds this as part of their FLEX system, so the height matches the other FLEX components. If you're laying out a distribution area with fuse blocks and switches from the same family, everything sits at the same level and the covers line up. That's a small thing until you're trying to make a helm panel look finished. It also means you can grow the system later without mismatched hardware.

The included cover is one of the details that sets this apart. It's a transparent insulated shroud that snaps over the terminals with break-away tabs, so you can pop out just the section you need to service and leave the rest protected. You get to eyeball your connections for corrosion or a loose nut without pulling the whole thing apart, and the clear plastic means a quick glance tells you everything's tight. On a busbar carrying 600 amps, an exposed terminal is a real hazard, so factory insulation that still lets you inspect is worth a lot.

A few install notes from folks who've rigged these. The three-way cable entry gives you flexibility on where the runs come in, which is great on a center console, though on a sailboat with tight stringers you may need a small bracket to clear the structure. The stainless self-locking hardware is dependable, but in a high-vibration engine room it's smart to add a dab of blue threadlocker after a season or two. And because stainless can seize against stainless, a light coat of dielectric grease on the threads keeps the nuts turning freely for years even though the tin plating already fights corrosion.

One honest note on the rating. The 600-amp number is a peak spec. In a hot engine room, plan on derating toward 400 amps continuous so you've got headroom when the space heats up on a long run. That's normal for any high-current bar and it's just good practice. The 80-volt DC rating gives you plenty of margin on standard 12 and 24 volt systems and covers 48 volt lithium setups too.

At 6.31 inches long and 1.22 inches wide, it tucks under most console lids and battery box covers. On a really narrow panel the width leaves little room for cable boots, so measure your space before you pick a spot. For most installs it drops right in. If you're building out a clean, serviceable DC system and you want your heavy connections in one protected, inspectable place, this is a solid piece of gear to build around.
