Egis Power Post Plus 5/16 in 250A Distribution Post

The Egis Mobile Electric Power Post Plus solves a problem every rigged boat runs into eventually. You've got one heavy cable coming off the battery or the main switch, and a growing pile of accessories that all need power. Bilge pumps, nav lights, a stereo, a chartplotter, a couple of USB chargers. Stack all those ring terminals onto a single battery post and you end up with a leaning tower of connections that works itself loose and corrodes. This post gives you a clean, central place to land that main feed and branch it out properly.

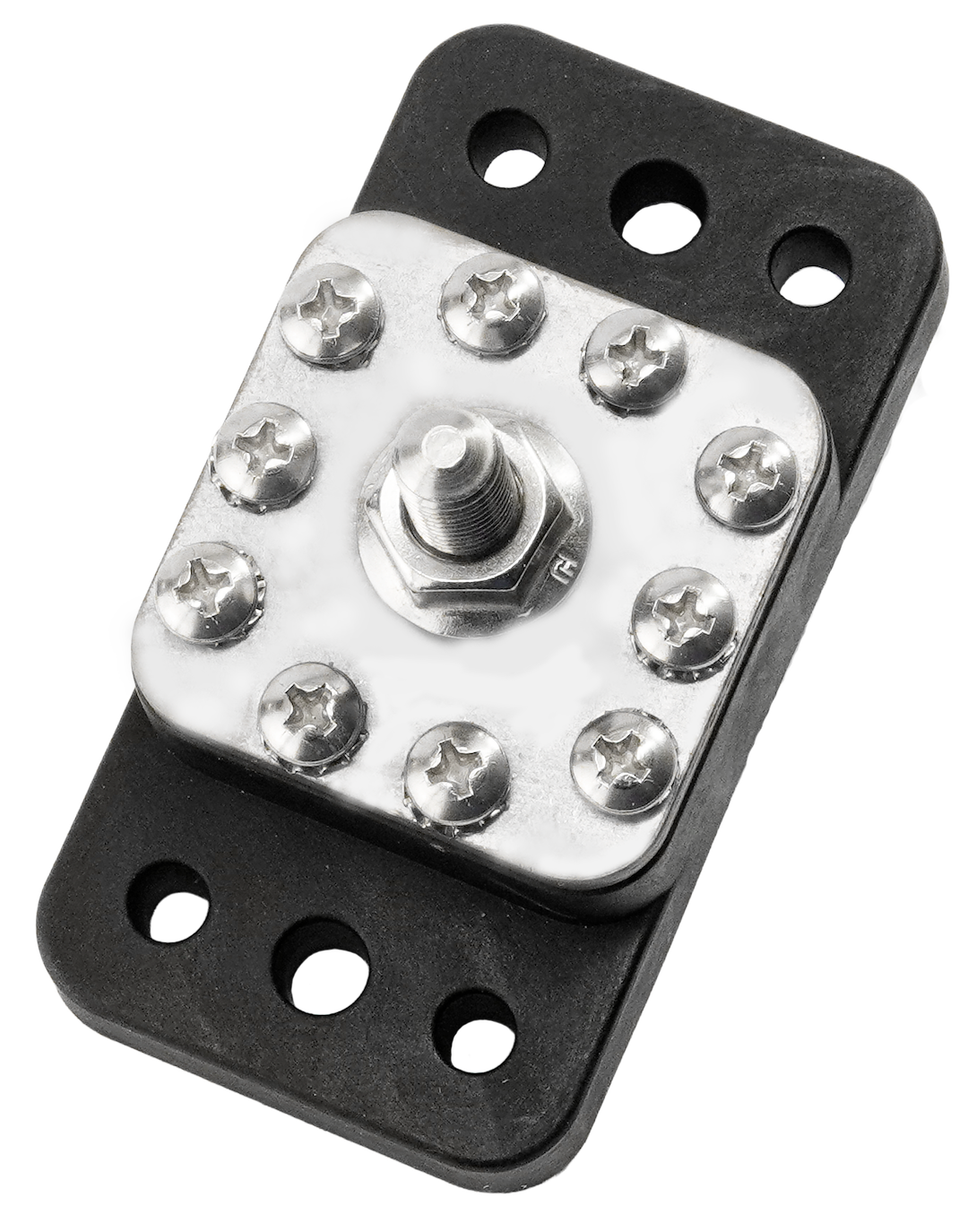

Here's how it's built. The main input stud is 5/16 inch (M8) stainless steel, the same size most house-battery, windlass, and inverter cables already terminate in. Ringed around that main post sit ten #8 (M4) screw terminals. So you land your big feed on the stud, then wire each accessory to its own small terminal. No more three or four rings fighting for space on one bolt. Everything mounts on a nylon base that keeps the whole assembly insulated from the panel, bulkhead, or battery box lid you screw it down to. That one change alone cleans up more helm wiring than almost anything else you can add.

The hardware is stainless steel and self-locking, which matters more than it sounds. On the water, a connection that backs off under vibration is the connection that leaves you dead in the slip. Stainless holds its torque and shrugs off the salt air that eats plated steel alive. The nylon base won't corrode either. Rinse it, wipe it down, and it keeps doing its job season after season.

It's rated to 48 volts DC maximum, so this one post covers just about any small-to-midsize boat electrical system you'd build. Wiring a 12 volt outboard rig? It's at home there. Running a 24 volt trolling motor bank up front? Same post. Moving to a 48 volt lithium house bank? Still covered. And it works just as well as a negative or ground bus as it does on the positive side, so a lot of boaters buy two, one for each polarity, and keep their whole distribution tidy and matched.

A quick, honest word on the 250 amp figure. That's the rating on the main stud. The way a distribution post actually carries current, though, depends on the wire gauge and the ring terminals you bolt to it, not on the post by itself. Size your main cable for the real load, use properly crimped terminals, and you'll be well within spec. It's a small detail, but getting it right keeps your connections cool and your voltage drop low.

Who's this for? Anybody doing a fresh build, a refit, or just cleaning up the rat's nest that's accumulated behind the helm over the years. It's a favorite for consolidating accessory grounds, for adding a proper distribution point near a second battery, and for giving electronics a clean common feed away from the engine's electrical noise. If you've ever opened a console and winced at what the last owner did with a terminal block and a roll of electrical tape, this is how you fix it right. It's the kind of part that doesn't look like much on the bench, but it quietly makes every future wiring job on the boat easier. Add a bilge pump next season, a second sounder, a fresh set of courtesy lights, and there's already a proper landing spot waiting for the wire.

Installation is straightforward. Pick a dry, accessible spot, screw the nylon base down flat, and land your cables. Torque the main stud hardware down firmly, snug each accessory terminal, and give everything a tug to confirm it's seated. Keep it somewhere you can reach it later, because a distribution point you can actually get a wrench on is a distribution point you'll actually maintain. That's it. You're done, and your wiring finally makes sense.
