Egis Mobile 3803 ANL Fuse Block 35-300A 80V DC
Egis Mobile 3803 ANL Fuse Block 35-300A 80V DC — Product description

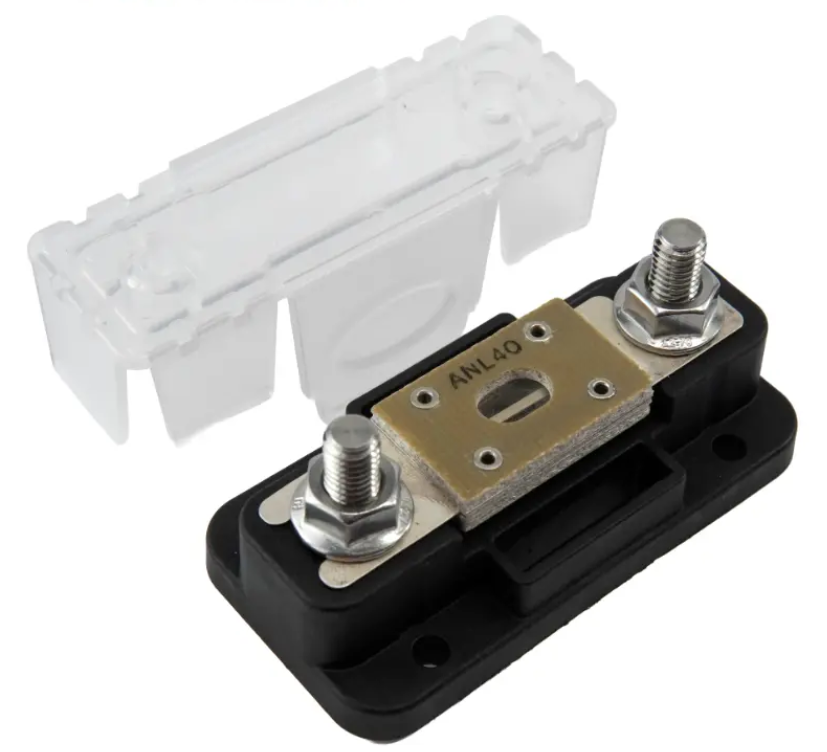

The Egis Mobile 3803 is a compact ANL fuse block built for the main DC runs on your boat. It takes a single ANL fuse from 35 to 300 amps and lands cable up to 2/0, so it's right at home protecting an inverter feed, a windlass, or a house battery bank. Tin-plated copper busbar, IP54 sealing, and a clear snap-on cover.
ANL fuses are what you reach for when you're protecting a heavy main circuit, and the 3803 gives you a clean, compact place to mount one. The busbar is tin-plated copper, so it handles current without heating up or corroding the way bare brass can in a damp bilge. You can land cable up to 2/0, which covers most inverter, windlass, and battery-bank feeds on a cruiser or center console.
The housing is glass-filled nylon and carries an IP54 rating, so it shrugs off dust and splashing water. It's not meant to sit underwater. A clear polycarbonate cover snaps over the top so you can eyeball the fuse without pulling anything apart, and it keeps a stray wrench off the live stud. Stainless self-locking hardware holds the fuse tight so it won't back off with engine vibration.
Rated to 80 volts DC, it works across 12V, 24V, and 48V systems. Pick the ANL fuse to match your circuit, anywhere from 35 to 300 amps. Simple, honest hardware that does one job well.
Key Features
- 80V DC rating works across 12V, 24V, and 48V marine systems
- Accepts ANL fuses from 35 to 300 amps so you can size it to any main circuit
- Tin-plated copper busbar carries high current and resists corrosion in a damp bilge
- Lands cable up to 2/0 AWG for inverter, windlass, and battery-bank feeds
- IP54-rated glass-filled nylon housing with a clear polycarbonate cover and stainless self-locking hardware
Why Buy from NVN Marine
- Authorized EGIS MOBILE reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | 80 Volt DC/ 35 To 300 Amp; Compact ANL Fuse Block; Glass-Filled Nylon Housing; Tin-Plated Copper Busbar; IP54 Protection Rating; With Polycarbonate Protective Transparent Cover And Stainless Steel Self-Locking Hardware |
|---|---|
| Brand | EGIS MOBILE |
| Manufacturer Part Number | 3803 |
| UPC | 850067590699 |
| Fuse Type | ANL |
| Voltage Rating | 80 Volt DC |
| Amperage Range | 35 to 300 Amp |
| Maximum Cable Size | 2/0 AWG |
| Housing Material | Glass-Filled Nylon |
| Busbar Material | Tin-Plated Copper |
| Protection Rating | IP54 |
| Cover | Polycarbonate Transparent |
| Hardware | Stainless Steel Self-Locking |
Frequently asked questions
What size cable does the 3803 accept?
It lands cable up to 2/0 AWG, which covers most inverter, windlass, and house-bank main feeds.
What fuse amperage can I run in it?
It's built for ANL fuses from 35 to 300 amps. Pick the rating that matches the circuit you're protecting. The fuse itself is sold separately.
What voltage systems does it work with?
It's rated to 80 volts DC, so it's fine on 12V, 24V, and 48V marine systems.
Is it waterproof?
It carries an IP54 rating, so it handles dust and splashing water. It's not designed to be submerged, so mount it somewhere it won't sit in standing water.
