Egis MiniBus 100A Busbar, 2 Stud 5 Screw | 6100-205

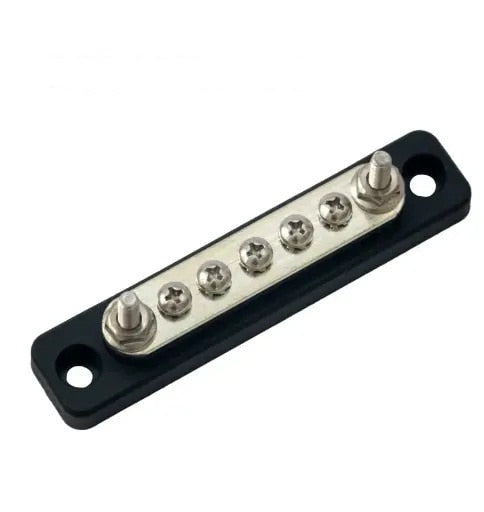

The Egis Mobile Electric MiniBus is a compact power-distribution busbar built for boats where every inch of space behind the helm counts. It's a flat tin-plated copper strip with two #10 studs and five #8 screw terminals, so you can feed a couple of heavier circuits and fan out five smaller accessory runs from a single tidy point. If you've ever opened up a console and found a rat's nest of ring terminals stacked three deep on one battery post, this is the part that cleans it up.

Here's how it lays out. The two #10 studs handle your bigger loads, the kind of feeds that pull real current, while the five #8 screw terminals take the smaller stuff. Nav lights, a bilge pump, a stereo, a fishfinder, the accessory circuits that don't need a heavy stud but still deserve a clean, dedicated home. The whole bar is rated to 100 amps, so there's headroom for a typical mix of house and electronics loads on a center console or a small cruiser.

The 48-volt DC rating is worth a word. That's the ceiling, which means the bar is right at home on a standard 12-volt system, a 24-volt setup, or a 48-volt trolling or house bank. One part covers all three. And because it's tin-plated copper rather than bare brass or steel, it stands up to the salt air and damp that eats cheaper hardware alive. Copper carries the current, the tin plating fights corrosion at the connection points, which is exactly what you want in a bilge or a battery box.

Egis ships it with stainless steel self-locking hardware. That matters more than it sounds. A busbar connection that backs off over a season of pounding across chop is a connection that heats up, and a hot connection is how you find melted insulation. The self-locking nuts hold torque, and stainless means the fasteners themselves won't rust into a seized mess when you go to add a circuit two years from now.

At 4.2 inches long and 0.9 inches wide, the footprint is small on purpose. It tucks into the corner of an electronics box, mounts to a bulkhead behind the dash, or rides inside a battery enclosure without hogging real estate. That compact size is the whole point of the MiniBus line, distribution power in a spot where a full-size busbar simply won't fit.

One honest note. This is the version without an insulated cover, so the terminals are exposed. On a busbar that's carrying current, that means you'll want to mount it somewhere protected, inside a sealed electronics box, a battery box, or a spot where nothing metal can bridge across the studs. If your install is in an open, high-traffic area of the bilge, plan a cover or an enclosure around it. For most builds inside a box, exposed is fine and makes the connections easy to inspect.

Wiring it is straightforward. Crimp a properly sized ring terminal onto each conductor, land the heavy feeds on the #10 studs and the accessory runs on the #8 screws, then torque the self-locking hardware down snug. Keep your positive and negative distribution on separate bars so nothing shares a bar it shouldn't, and you've got a clean, serviceable hub you can trace at a glance the next time something acts up.

Who's this for? Riggers and DIY owners consolidating grounds or positives on a new electronics install. Anyone adding a bank of accessories and tired of double-stacking ring terminals on a single post. Fleet and commercial owners who lean on Egis gear because it holds up. It's a small part, but it's the kind of small part that makes the rest of a wiring job look professional and, more important, stay reliable.
