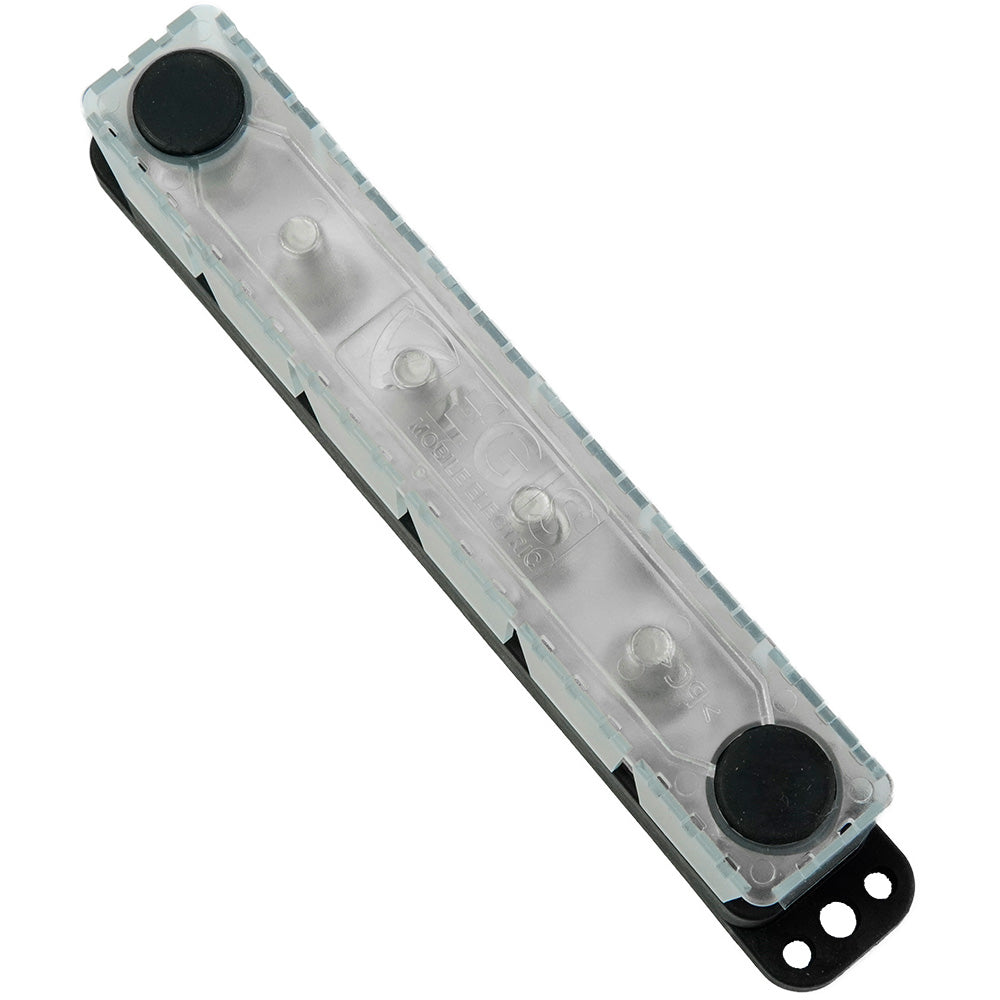

Egis MaxiBus 6250-600 250A 6-Stud DC Busbar

The Egis Mobile Electric MaxiBus 6250-600 is a power distribution busbar, and if you've ever opened up a battery compartment and found six ring terminals stacked on one battery post, you already know why you want one. This is the clean way to bring multiple heavy DC cables to a single common point. Six 5/16 inch tin-plated copper studs, rated for 250 amps and 80 volts DC, all under one insulated cover. It's a small part that makes the rest of your electrical system make sense.

We reach for a busbar like this any time a boat has more than a couple of loads sharing a positive or negative bus. Think house battery banks, inverters, windlasses, bow thrusters, and the dozen smaller circuits that all need a home. Instead of doubling and tripling ring terminals on a battery post, which loosens over time and runs hot, you land each cable on its own stud. Torque it once, cover it, and forget it.

The build is straightforward and honest. The bar itself is tin-plated copper, which is exactly what you want in a salt environment. Copper for conductivity, tin plating to slow the corrosion that eats bare copper alive in an engine room. The six studs are 5/16 inch, and the hardware is stainless steel with a self-locking design that resists backing off under engine vibration. On a 250-amp connection you still want a dab of threadlocker and a proper torque, but the self-locking nuts give you a real margin against the constant shake of a running boat.

Each stud will take a heavy lug, though at the top end the 1.22 inch width of the bar gets tight if you're trying to seat big lugs side by side with heat shrink. Plan your cable routing so the lugs sit flat and don't crowd each other. The three-way cable entry gives you flexibility in how the cables approach the bar, which helps a lot in a cramped battery box where you can't always run everything in from one direction.

The insulated cover is one of the details that sets this apart from a bare bus. It's a clear snap-on cover with break-away tabs, so you can pop just the section you need for inspection without pulling the whole thing. Being able to eyeball your connections for corrosion or a loose lug without disassembly is genuinely useful during a spring commissioning check. One thing to know: the cover seats cleanly when your cables exit straight off the studs. If you've got tight 90 degree bends coming off the ports, you may need to trim the cover for a proper fit. Not a dealbreaker, just something to plan for.

A few field notes from boaters who've lived with these. Add a little dielectric grease under the cover and on the stud threads. It keeps moisture from wicking along the studs and slows the corrosion where dissimilar metals meet, which matters if you're landing aluminum lugs on copper studs. Mount the bar flat on a solid surface, a stringer or a bulkhead, with proper fasteners, and back it with a plate if the surface flexes at all. The base is tough but it's still plastic, and a hull that works in a seaway can crack an unsupported mount over a couple of seasons.

The 80 volt DC rating gives you plenty of headroom on 12, 24, and 48 volt systems, so this bar won't be the weak link even on a big lithium bank. And because it's part of the Egis FLEX system, it's height-compatible with other FLEX components if you're building out a more complete distribution setup. Six studs is the right count for most boats, but be honest with yourself about future additions. Once all six are landed, you're full, so if you know more loads are coming, leave yourself a stud or step up.

For the money, it's hard to argue with. A properly rated, tin-plated, covered busbar that cleans up your wiring and takes the strain off your battery terminals. Wire it in once and it just does its job.
