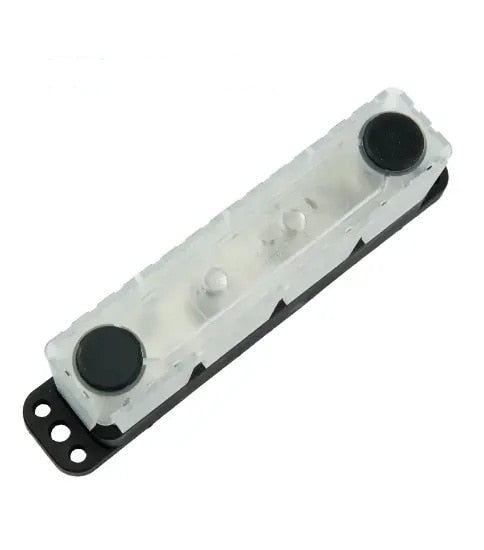

Egis MaxiBus 6250-404 250A Busbar | 4 Stud + 4 Screw

When you start adding gear to a boat, the wiring behind the helm gets ugly fast. The Egis Mobile Electric MaxiBus 6250-404 is how you clean that up. It's a flat-strip power distribution busbar rated for 250 amps at up to 80 volts DC, with four 5/16 inch studs for your heavy cables and four #8 screw terminals for the smaller circuits. One tidy tie point instead of a stack of ring terminals fighting for room on a single battery post.

The bar is tin-plated copper, so it carries current with very little voltage drop and shrugs off the corrosion that eats bare copper alive in salt air. Egis builds it as part of their FLEX system, which means it's height-matched to their fuse blocks and other components so everything lines up clean on the panel. The four 5/16 inch studs handle your main feeds. Think house bank positive, a windlass run, an inverter cable. The four #8 screw terminals pick up the lighter loads like electronics, lighting, and accessory switches. That mix is what makes it genuinely useful. You're not forced to jam everything onto one oversized lug. And adding a circuit down the road is easy. You just land one more ring terminal on an open stud or screw and you're done.

It ships with a clear insulated cover that snaps over the terminals with break-away tabs, so you can open just the section you need to inspect or add a circuit without pulling the whole thing apart. That cover matters more than people give it credit for. It keeps a dropped wrench or a loose tool from arcing across live terminals, and on an ABYC-minded install a covered busbar is just good practice. The hardware is stainless steel with self-locking nuts, so it stays put through engine vibration and a long season of pounding across chop.

A quick word on sizing, because this is where folks get into trouble. That 250 amp number is the bar's continuous capacity, not a dare to push 250 amps through undersized wire. Size each cable to its actual load and keep the biggest feeds on the studs. Around 4/0 cable is the practical max on a single 5/16 inch stud. And if you're running near the top of the rating for long stretches, give it some airflow. Continuous full-rated loads in a sealed compartment run hot, and plenty of installers derate a little for their own peace of mind.

Fusing is still on you. A busbar distributes power, it doesn't protect anything by itself. Best practice is a properly rated fuse on each output leg, an ANL or Class T style depending on the circuit, sized to protect the wire and not the bar. On a saltwater boat, hit the stainless studs with a touch of anti-seize before you torque them so they don't gall, and a thin film of dielectric grease on every terminal keeps corrosion from creeping in under the cover.

So where does it go? Anywhere you need to gather or split heavy DC. Battery switch outputs, a main distribution point behind the console, a combining point in the engine bay on a bigger rig. Mount it to a flat, solid surface. It's a rigid flat strip, so a curved bulkhead or a flexy panel can leave gaps under the cover and that's how tools find live metal. Give it a proper backing board and it'll sit flat and stay sealed. At 6.31 inches long by 1.22 inches wide it tucks into a tight space, which is exactly what you want when console room is scarce. Rig it once, do it right, and you'll forget it's back there. Which is the whole point of good wiring.
