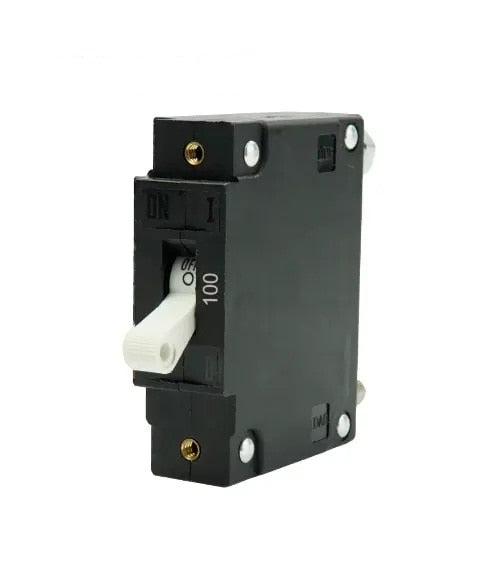

Egis C Series 100A Circuit Breaker, AC/DC Single Pole
Egis C Series 100A Circuit Breaker, AC/DC Single Pole — Product description
The Egis C Series 100 Amp circuit breaker gives you panel-mount overcurrent protection that works on both AC and DC systems. Single-pole toggle design, rated to handle big paralleled battery banks. A clean, reliable way to protect a high-current circuit right at the helm.
Protecting a high-amperage circuit on a boat means you need a breaker that can actually interrupt serious fault current. That's where the Egis C Series 100 Amp breaker comes in. It's a single-pole toggle unit that mounts right through your panel, so the switch handle doubles as your manual on/off. Flip it to kill the circuit, flip it back to restore power.
The high voltage rating easily covers standard 12 and 24 volt DC systems, and it steps up to protect 26 and 48 volt applications too. So if you're running a larger lithium bank or a 48 volt setup, this one's built for it. It's AC and DC rated, which means you can wire it into a wide range of systems, not just one.
The high interrupt current is the real story here. On boats with large paralleled battery banks, there's a lot of available power waiting to dump into a fault. This breaker safely clears those circuits. And the white housing keeps it looking clean on a finished panel.
Key Features
- 100 Amp rating protects high-current circuits like battery bank feeds and large inverters
- Single-pole panel-mount design uses the toggle handle as a manual on/off switch
- AC and DC rated for flexible use across 12V, 24V, and higher-voltage systems
- High voltage rating supports 12 and 24 Vdc and protects 26 and 48 Vdc applications
- High interrupt current safely clears faults on large paralleled battery banks
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS C Series White Toggle Panel Mount Circuit Breaker Single Pole AC/DC 100 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3501-100 |
| UPC | 850067590798 |
| Series | C Series |
| Amperage | 100 Amp |
| Pole Configuration | Single Pole |
| Mounting Type | Panel Mount |
| Switch Type | Toggle |
| Current Type | AC/DC |
| Color | White |
| Nominal Voltage Support | 12 and 24 Vdc |
| Extended Protection Voltage | 26 and 48 Vdc |
| Category | Electrical |
| Packaging | Retail Pack |
Frequently asked questions
What voltage systems does this breaker work with?
It easily supports 12 and 24 Vdc applications and offers advanced protection for 26 and 48 Vdc systems. It's also AC rated, so it covers a wide range of system needs.
Is this a single-pole or double-pole breaker?
It's a single-pole breaker, so it protects one circuit. The toggle handle lets you switch that circuit on and off by hand.
Why does high interrupt current matter?
On boats with large paralleled battery banks, there's a lot of available fault current. A high interrupt rating means the breaker can safely clear a fault on those circuits instead of being overwhelmed.
How does it mount?
It's a panel-mount breaker. The body passes through a hole in your panel and the toggle handle sits on the face, so you get circuit protection and a manual switch in one spot.
