Egis A Series 50A Dual Pole AC Circuit Breaker
Egis A Series 50A Dual Pole AC Circuit Breaker — Product description

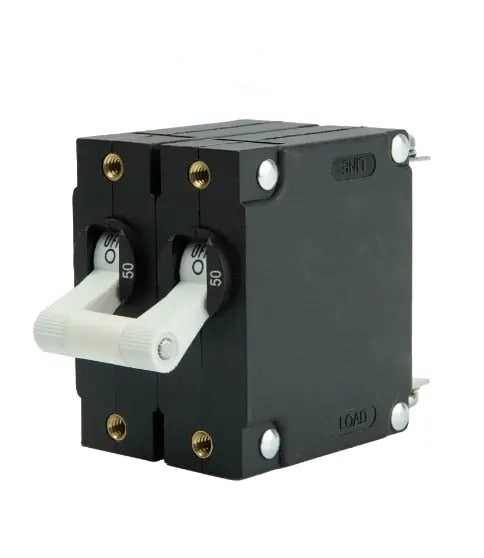

The Egis A Series 3202-50 is a dual-pole, 50-amp circuit breaker built for the helm. It mounts right into a standard panel that accepts A-Series and C-Series magnetic-hydraulic breakers, and the white toggle doubles as a manual on/off switch. AC and DC rated, UL 1077 listed, and backed by stainless self-locking hardware that holds up to vibration out on the water.
If you're wiring up an AC panel on a boat or an RV and need reliable overcurrent protection, the Egis A Series 3202-50 does the job. It's a dual-pole circuit breaker rated for a continuous 50 amps, and the white toggle on the front gives you a clean on/off switch at the same time. Flip it to kill the circuit. No separate switch needed.
It drops into any standard panel cut for A-Series or C-Series magnetic-hydraulic breakers, and the mounting screws come in the box. The stainless steel self-locking hardware keeps your connections tight even when the boat's pounding through chop. That matters. Loose terminals are where trouble starts.
Rated to 277 Vac and 80 Vdc, so it works on both AC and DC circuits. It's UL 1077 listed with a 5kA interrupt capacity at 277 Vac, which means it can safely clear a fault on circuits fed by large paralleled battery banks. Egis backs it with a 4-year warranty.
Key Features
- Continuous current rating of 50 amps for dual-pole AC or DC circuits
- Max voltage 277 Vac / 80 Vdc, so it handles both AC and DC systems
- UL 1077 listed with 5kA interrupt capacity at 277 Vac for high available fault current
- White toggle actuator doubles as a manual on/off switch
- Stainless steel self-locking hardware and included mounting screws for vibration-proof installs
Why Buy from NVN Marine
- Authorized Egis Mobile Electronics reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 50 Amp Retail Pack |
|---|---|
| Brand | Egis Mobile Electronics |
| Manufacturer Part Number | 3202-50 |
| UPC | 850067590927 |
| Continuous Current | 50 Amps |
| Max Voltage | 277 Vac / 80 Vdc |
| Number of Poles | Dual Pole |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance | 6,000 Cycles at rated current |
| Interrupt Capacity | 5kA / 277 Vac, 1.5kA / 80 Vdc |
| Mounting | Standard panel accepting A-Series and C-Series magnetic-hydraulic breakers |
| Warranty | 4 Years |
| Category | Electrical |
Frequently asked questions
Is the Egis 3202-50 rated for AC and DC?
Yes. It's rated to 277 Vac and 80 Vdc, so you can use it on both AC and DC circuits.
What's the amp rating?
It's a 50-amp continuous-current breaker, and it's dual pole.
Will it fit my existing panel?
It mounts in any standard panel cut for A-Series or C-Series magnetic-hydraulic circuit breakers, and the mounting screws are included.
Does the toggle work as a switch?
Yes. The white toggle lets you manually switch the circuit on and off, on top of tripping automatically on an overcurrent fault.
What's the warranty?
Egis backs the 3202-50 with a 4-year warranty.
